Home
>>
Mercury
>>
1995
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests Electronic Climate Control
>>
B: Actuator Door Inoperative
>>
B1-B2
B1-B2

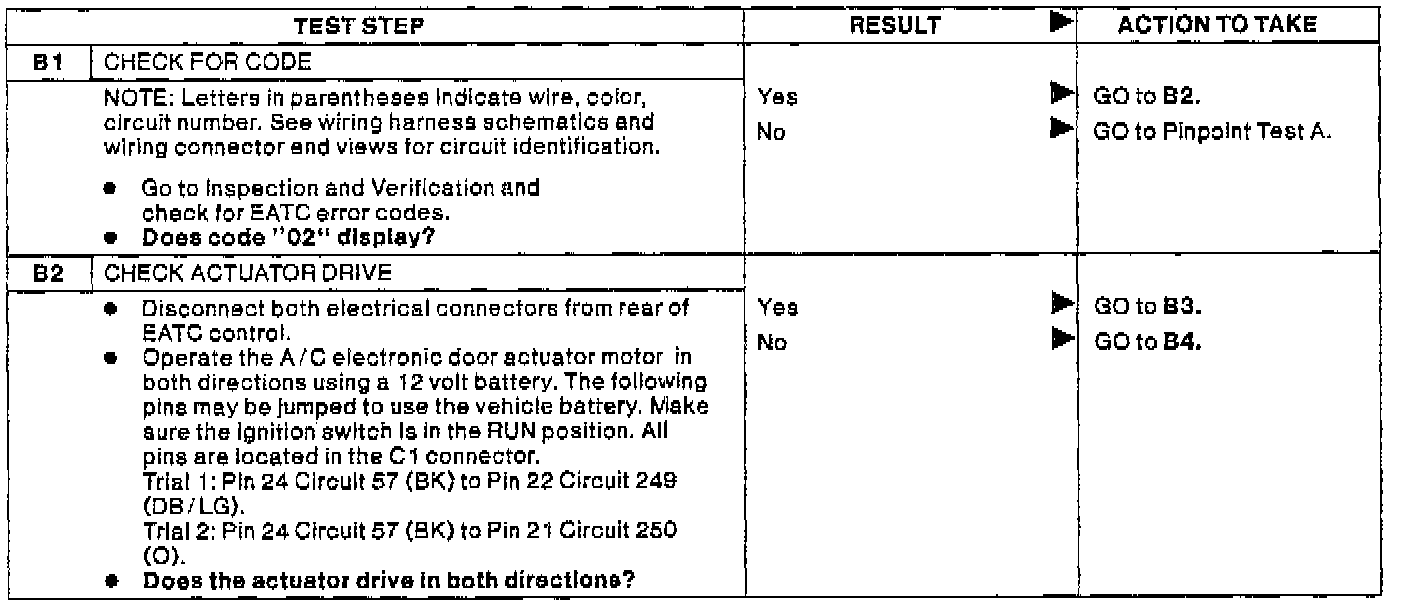

Actuator Door Inoperative (Test Steps B1-B2):
