With FS-10 Compressor

A/C Clutch Hub, Pulley, And Coil Assembly:

REMOVAL






1. Hold the A/C clutch with the Compressor Clutch Holding Tool T94P-19703-AH and remove the A/C clutch retaining bolt.

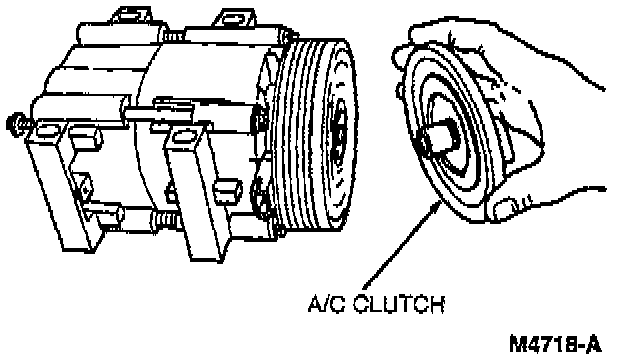

A/C Clutch Hub - Removal:

2. Pull the A/C clutch and the A/C compressor clutch hub spacers from the A/C compressor shaft.






3. If the A/C clutch cannot be pulled from the A/C compressor shaft, screw an 8 mm x 1.25 mm bolt into the shaft hole of the A/C clutch to force it from the shaft.

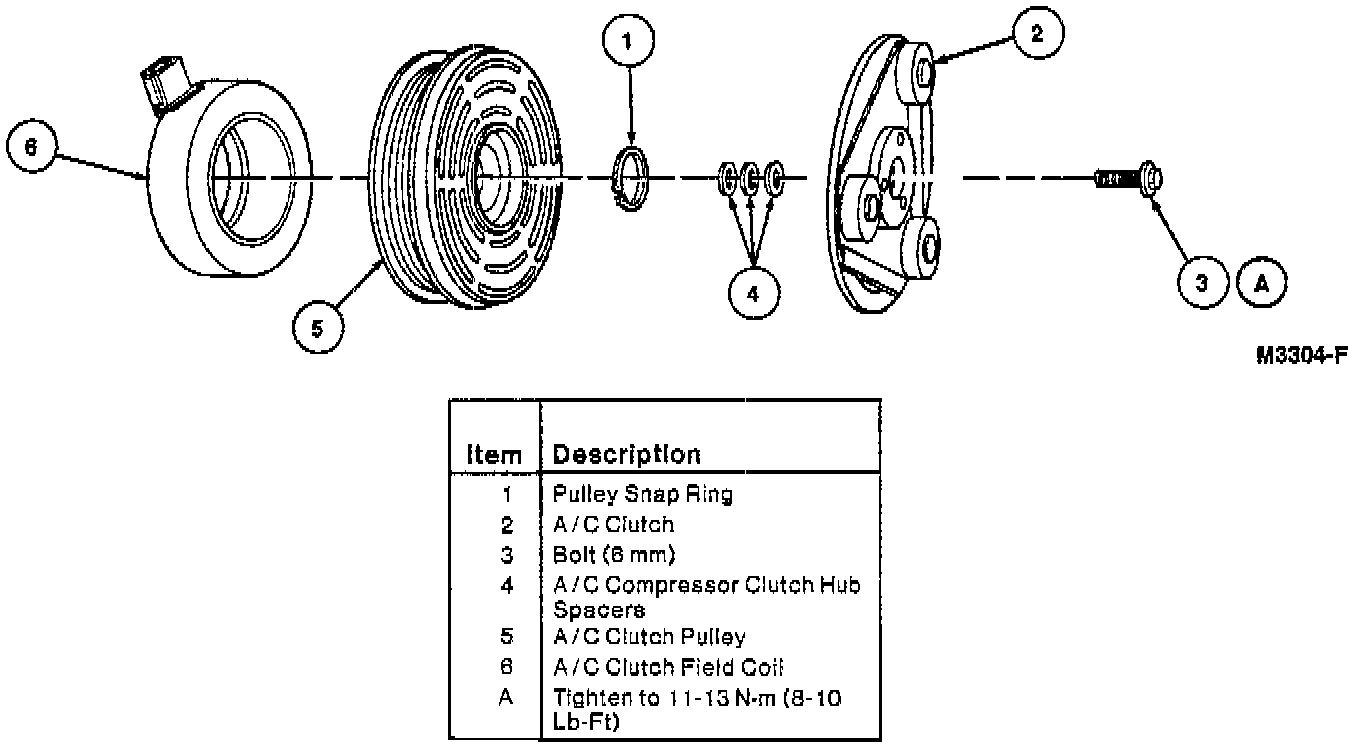

Pulley Retaining Snap Ring - Removal:

4. Remove the A/C clutch pulley retaining snap ring.
5. Pull the A/C clutch pulley assembly from the A/C compressor.

INSTALLATION
1. Clean the pulley bearing surface of the A/C compressor head to remove any dirt or corrosion.
2. Install the A/C clutch pulley assembly on the A/C compressor. The bearing is a slip-fit on the compressor head and, if properly aligned, should slip on easily.
3. Install the A/C clutch pulley retaining snap ring with the bevel side of the snap ring out.
4. Place one medium thickness spacer shim inside the A/C clutch hub spline opening and slide the A/C clutch on the end of the compressor shaft.
5. Thread a new 6 mm retaining bolt into the end of the A/C compressor shaft. Hold the A/C clutch with the Compressor Clutch Holding Tool T94P-19703-AH and tighten the A/C clutch hub retaining bolt to 11-13 Nm (8-10 ft lb).

CAUTION: Do not use air tools.

6. Check and adjust the A/C clutch air gap.
7. When installing a new A/C clutch, cycle it 10 times at idle to burnish it and prevent slippage.
