Mercury
>>
1995
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>
Ground Diagrams (By Ground Number)
>>
G301
>>

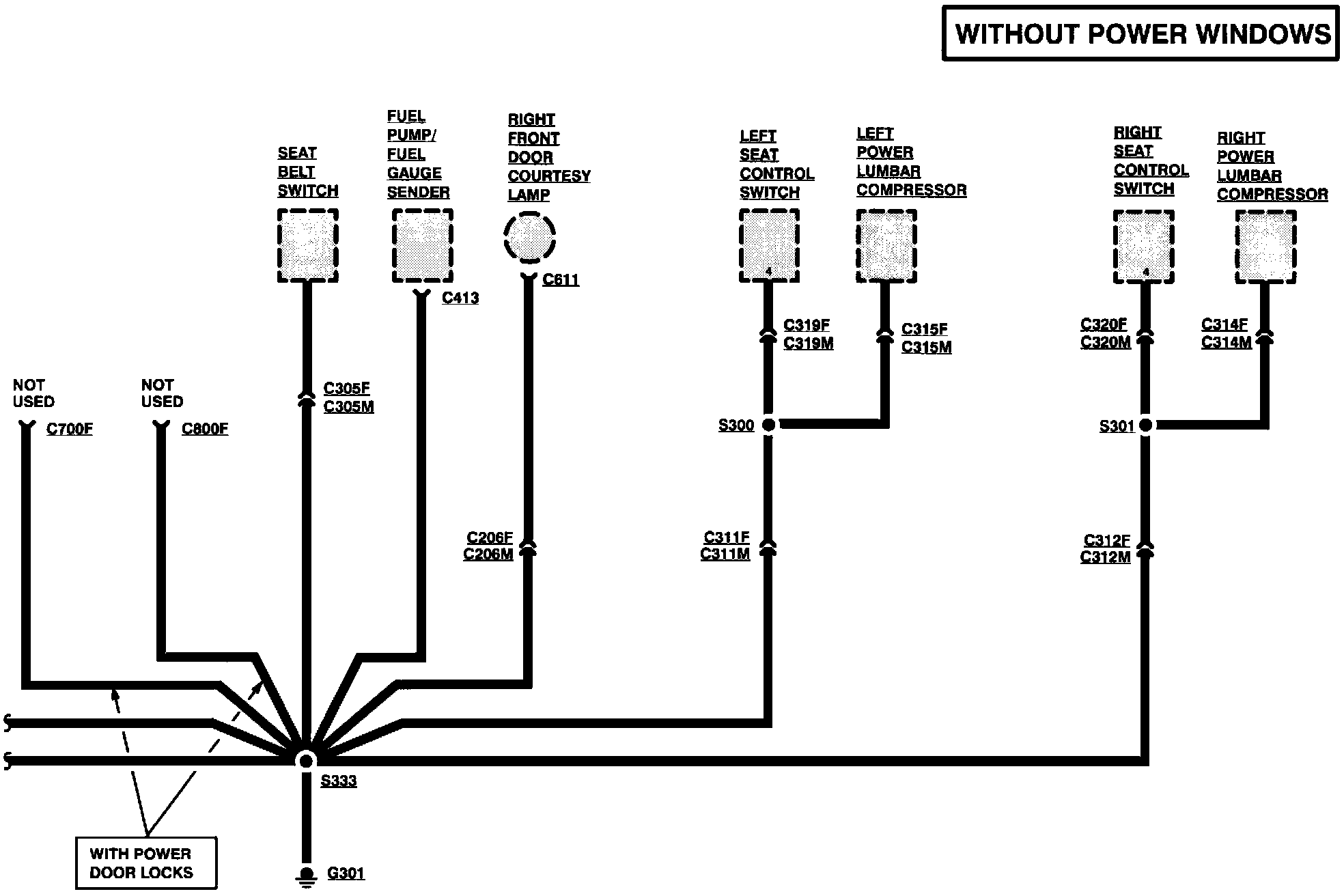

Without Power Windows

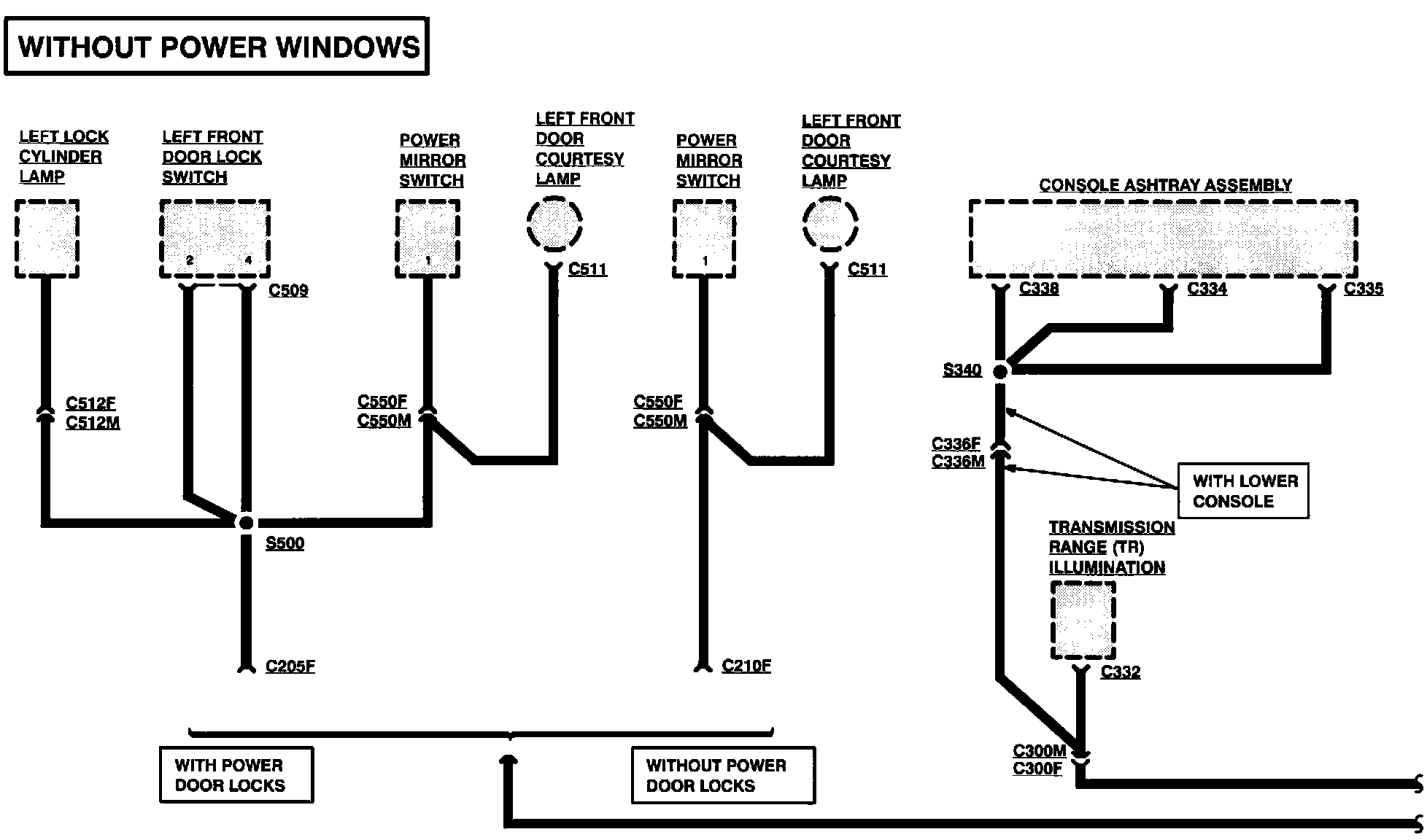

Without Power Windows
Grounds (G301):
Grounds (G301):
