Wagon

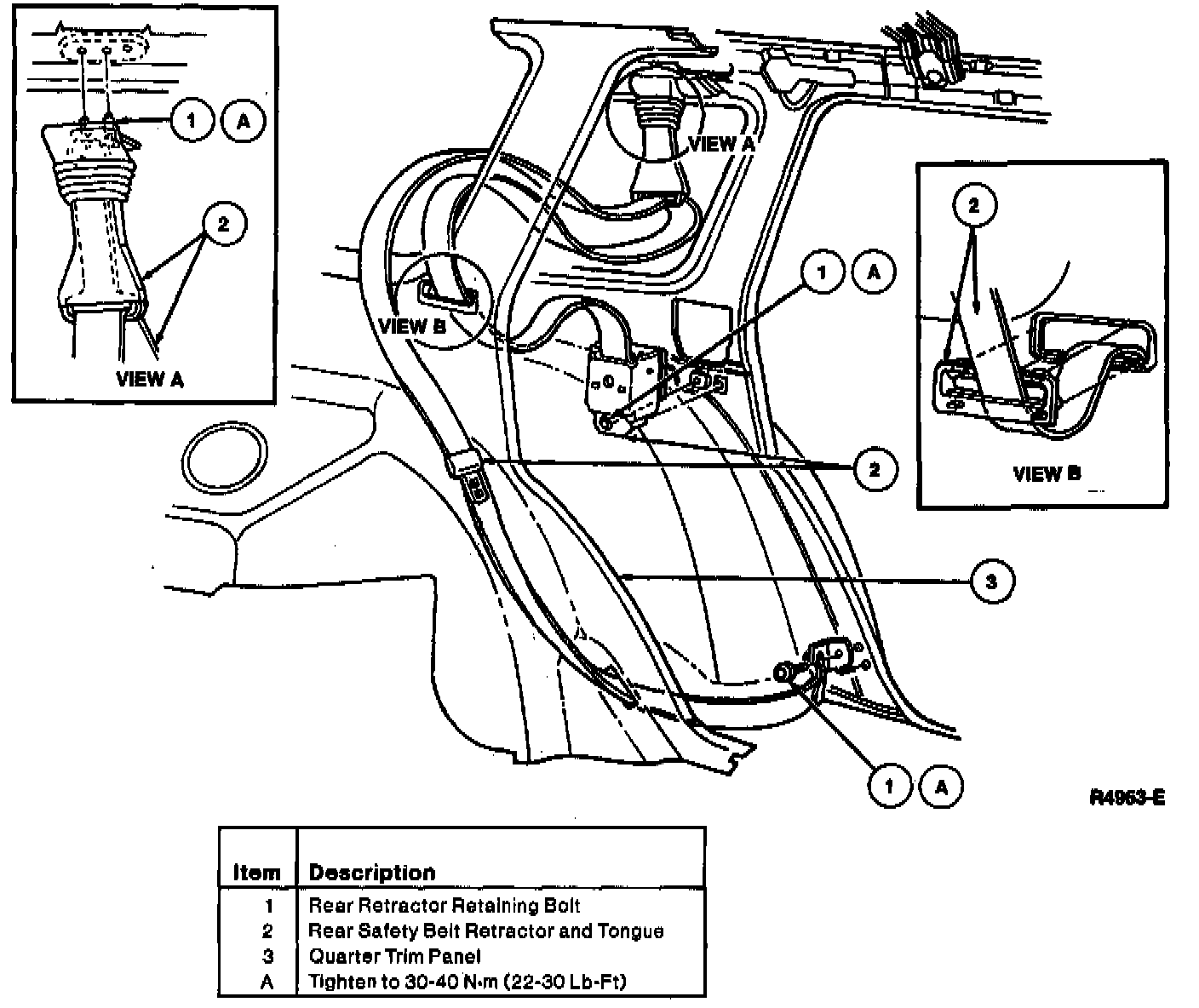

REMOVAL
1. Remove rear seat cushion.
2. Remove rear seat back.
3. Remove roof side inner rear moulding on driver's or passenger's side.
4. Remove bolt in sling assembly.
5. Remove quarter trim panel.
6. Remove rear seat safety belt anchor plate-to-sill bolt.
7. Remove rear seat safety belt through slot near sill.
8. Snap out bezel in quarter trim panel.
9. Remove rear seat safety belt through bezel opening.
10. Remove rear seat safety belt retractor bolt.
11. Remove rear safety belt retractor and tongue from vehicle.

INSTALLATION
1. To install, reverse removal procedure.
2. Make sure the safety belt webbing is not twisted. If it is, remove the twist.
3. Tighten all anchor bolts to 30-40 Nm (22-30 lb ft) for each mounting position.
4. Check the restraint system for proper operation.
