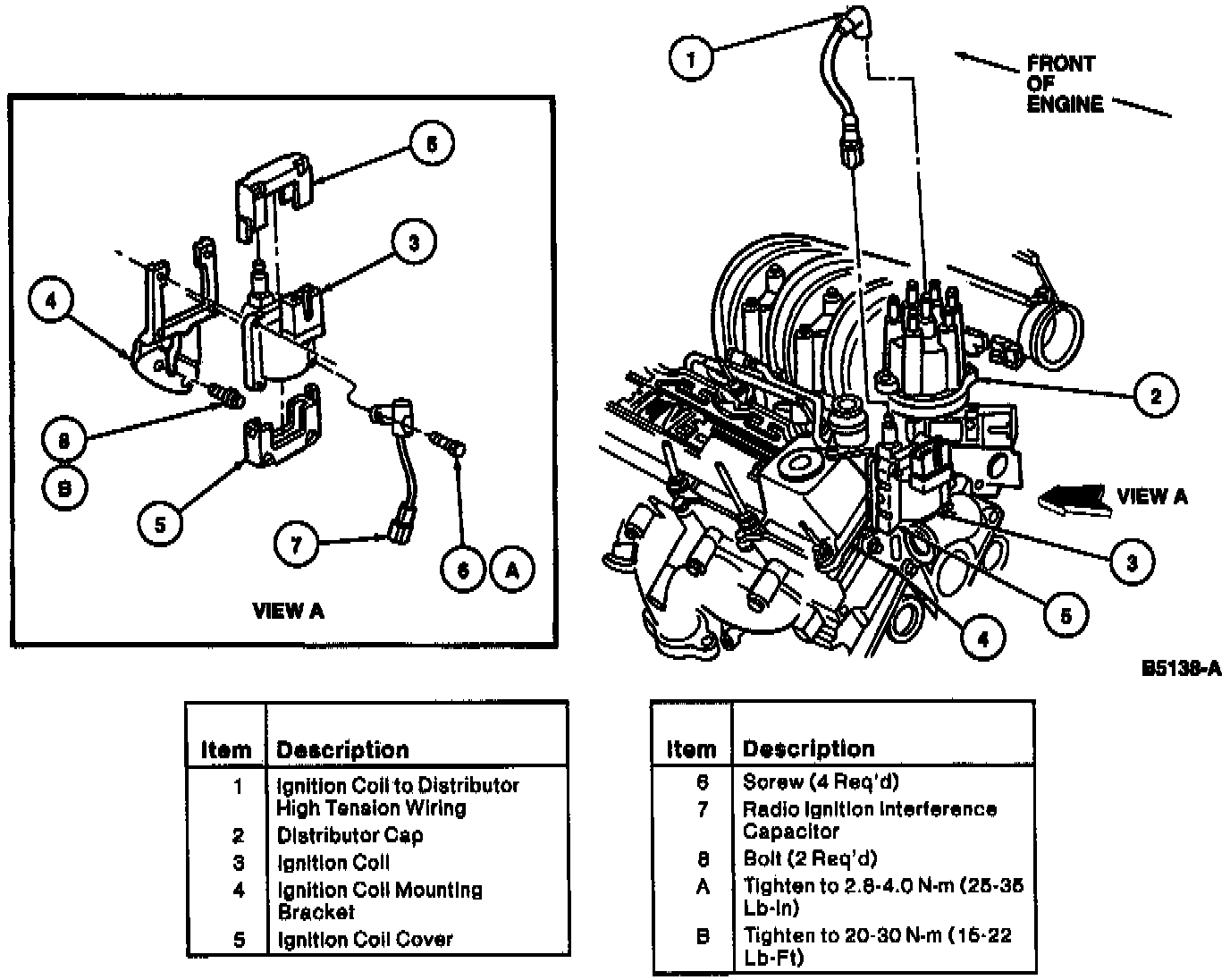

Ignition Coil Bracket

REMOVAL
1. Remove ignition coil and radio ignition interference capacitor (if required) from ignition coil mounting bracket.
2. Remove ignition coil mounting bracket retaining nuts or bolts and ignition coil bracket from cylinder head.

Ignition Coil Assembly:

INSTALLATION
1. To install, reverse Removal procedure.
2. Tighten ignition coil mounting bracket bolts to 20-30 Nm (15-22 ft lb).
