Home >> Mercury >> 1995 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Without Daytime Running Lamps

Without Daytime Running Lamps

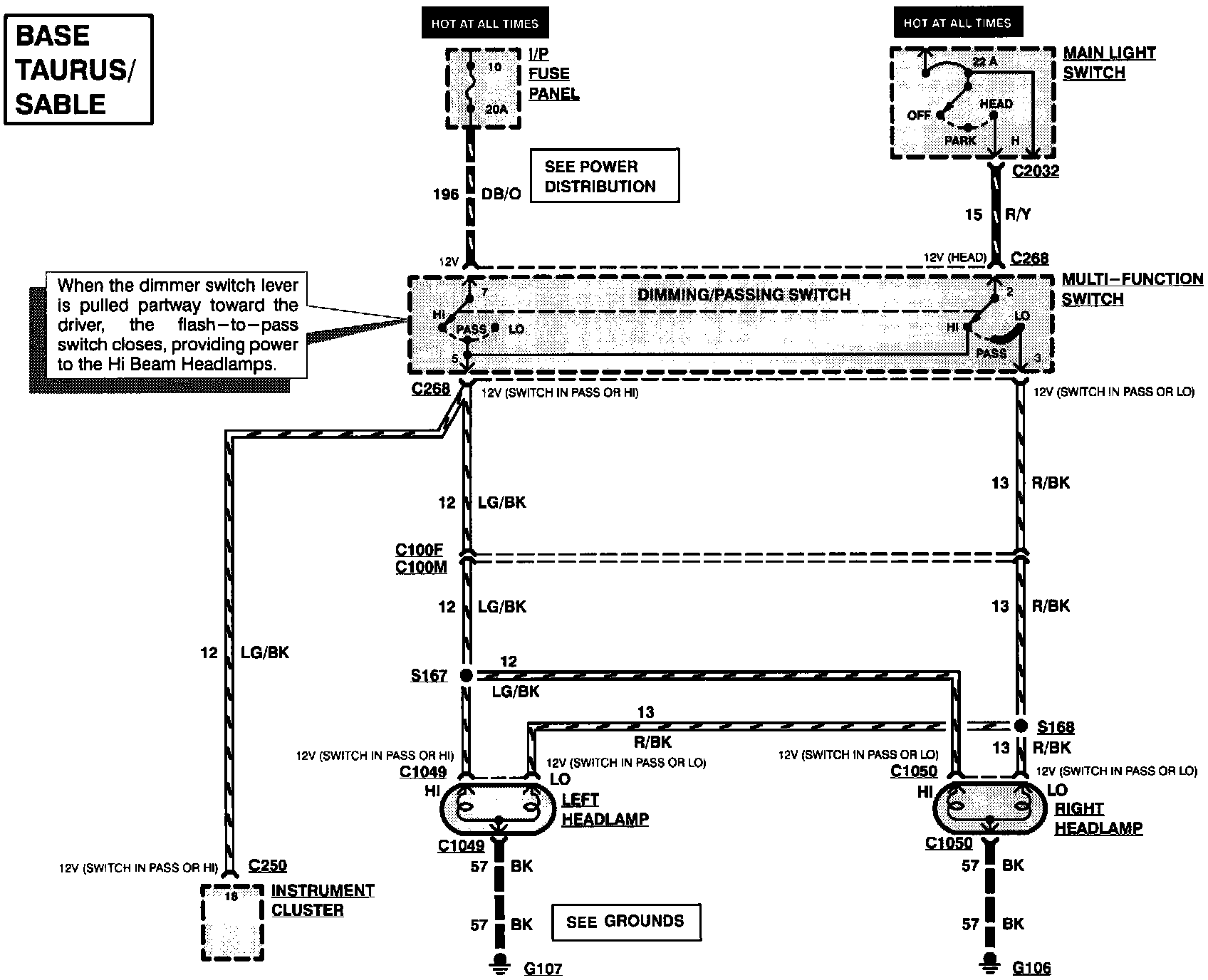

Headlamps (Without Daytime Running Lamps) (Part 1 Of 2):

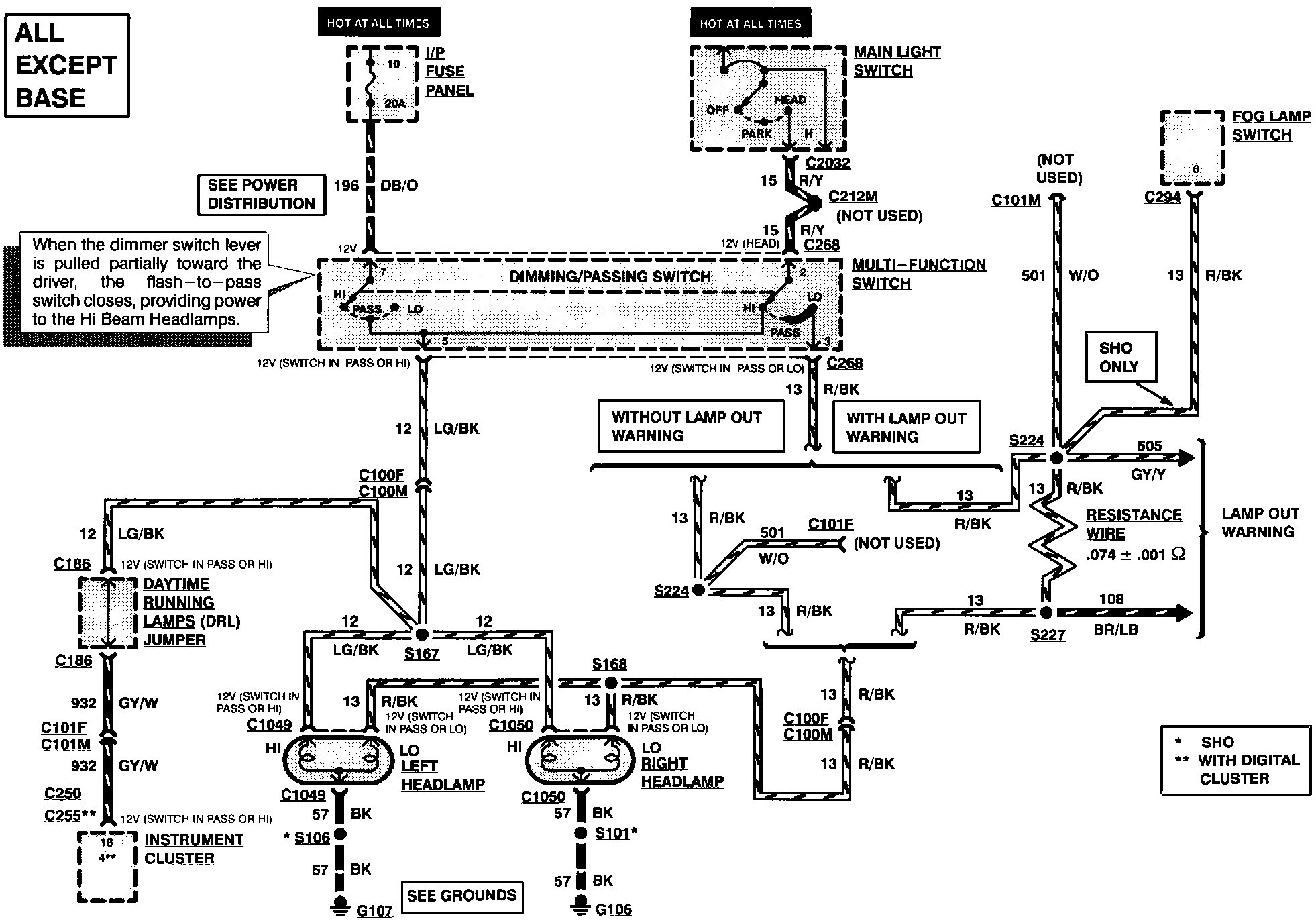

Headlamps (Without Daytime Running Lamps) (Part 1 Of 2):
