Conventional Instrument Cluster

INSPECTION AND VERIFICATION
1. Verify the vehicle owner's original concern by operating the instrument cluster to duplicate the condition by observing the indicators and gauges to determine if they are operating properly with the ignition switch:
a. In RUN without the engine running.
b. In START before the ignition switch is released.
c. In RUN with the engine running.

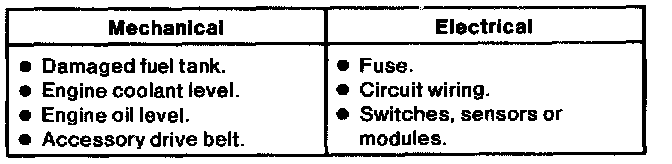

2. Inspect to determine if any mechanical or electrical concerns apply:
3. If the concern(s) remains after the inspection, determine the symptoms and go to the Symptom Chart. Conventional Instrument Cluster

The Ford Car Master Parts catalog and the Lincoln/Mercury Parts and Accessories catalog show the proper speedometer transmission gears to use for various transaxle and tire size combinations. The correct gears must be used to comply with Federal law.
