Home >> Mercury >> 1995 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests Manual A/C-Heater >> D: Blower Motor Does Not Operate >> D1-D3

D1-D3

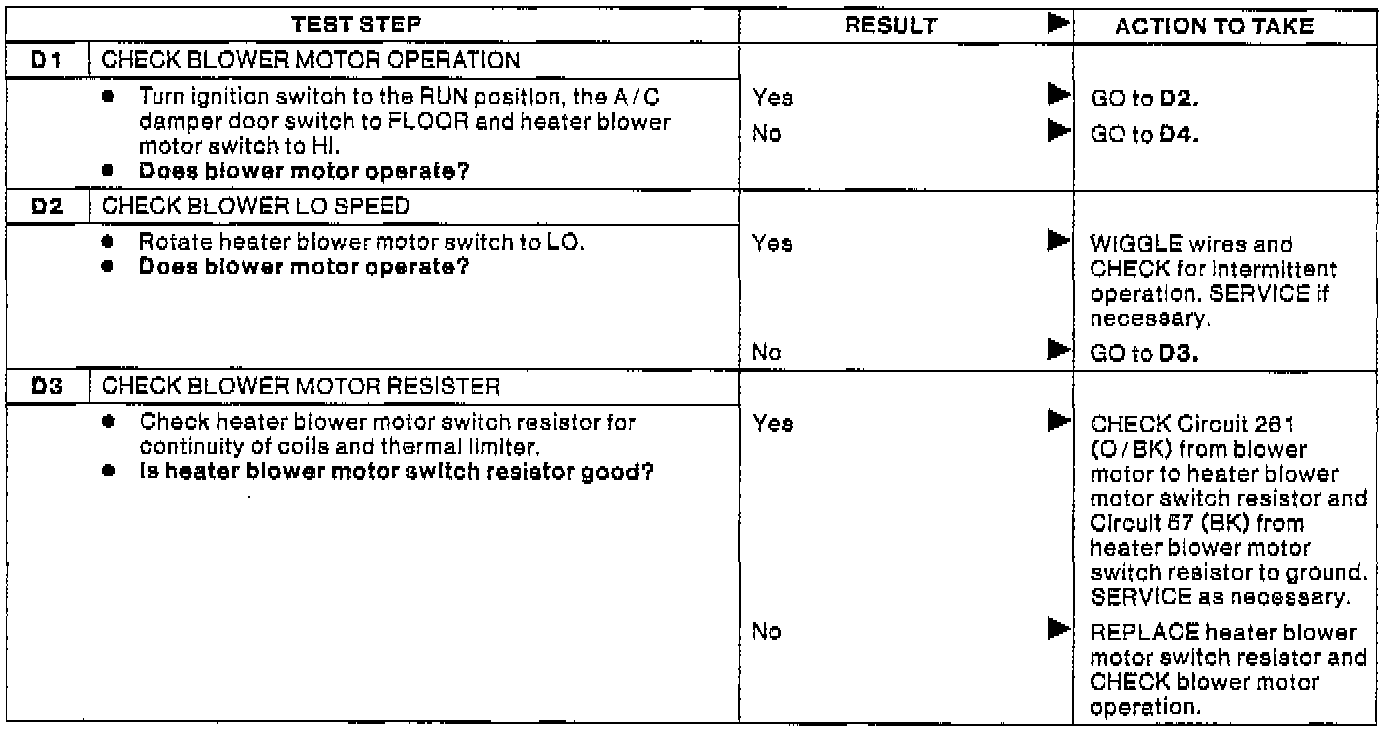

Pinpoint Test D1 - D3 - Blower Motor Does Not Operate:
