Pinpoint Tests Electronic Climate Control
>>
H: A/C Ambient Temperature Sensor Inoperative
>>
H3-H4
H3-H4

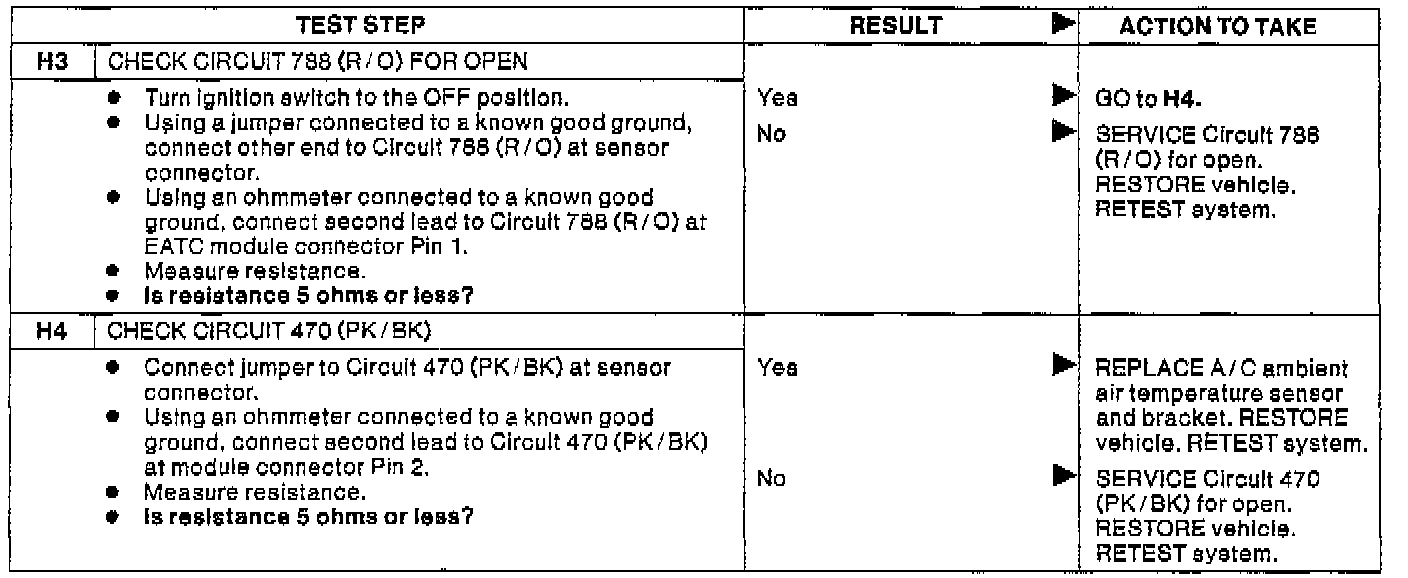

A/C Ambient Temperature Sensor Inoperative (Test Steps H3-H4):
