Pinpoint Tests Electronic Climate Control
>>
H: A/C Ambient Temperature Sensor Inoperative
>>
H1-H2
H1-H2

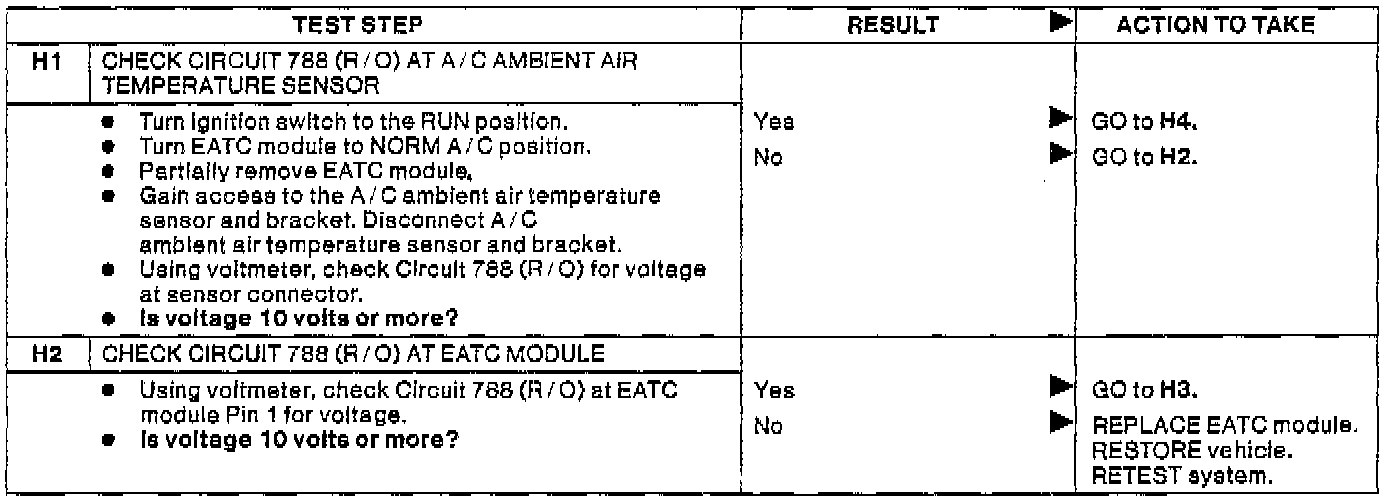

A/C Ambient Temperature Sensor Inoperative (Test Steps H1-H2):
