Home >> Mercury >> 1995 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Air Door Actuator / Motor >> Diagrams >> With EATC

With EATC

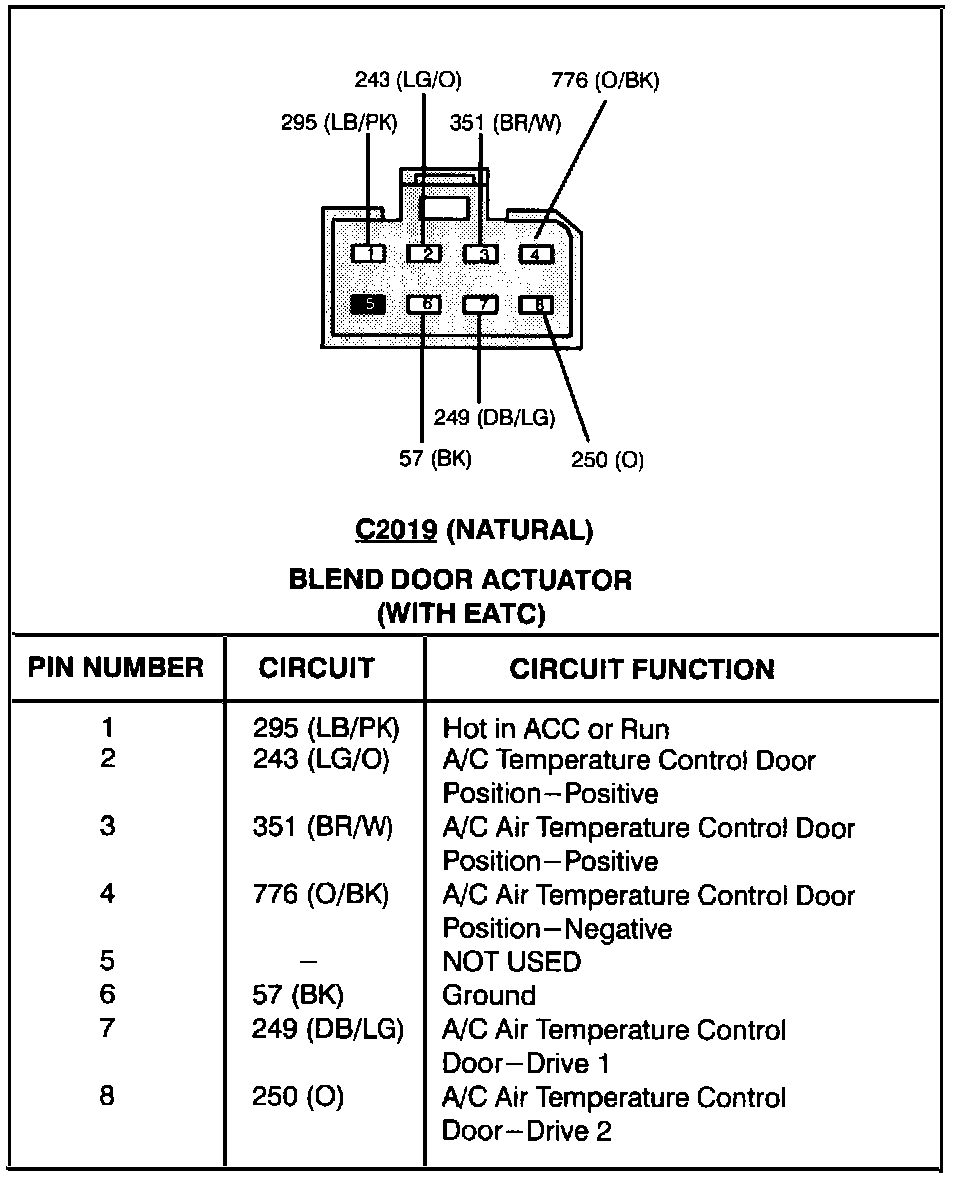

Blend Door Actuator (With Electronic Automatic Temperature Control):
