Oil Pressure Warning Lamp/Indicator: Testing and Inspection

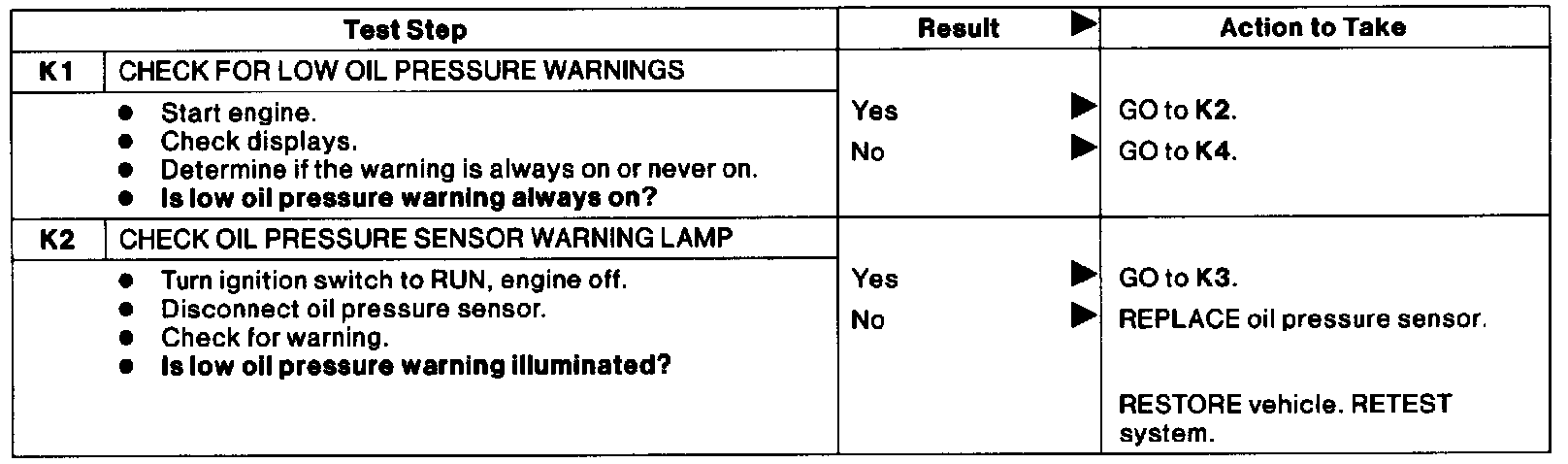

Test K: Low Oil Pressure Warning Lamp Never/Always On.:





Test K1-K2

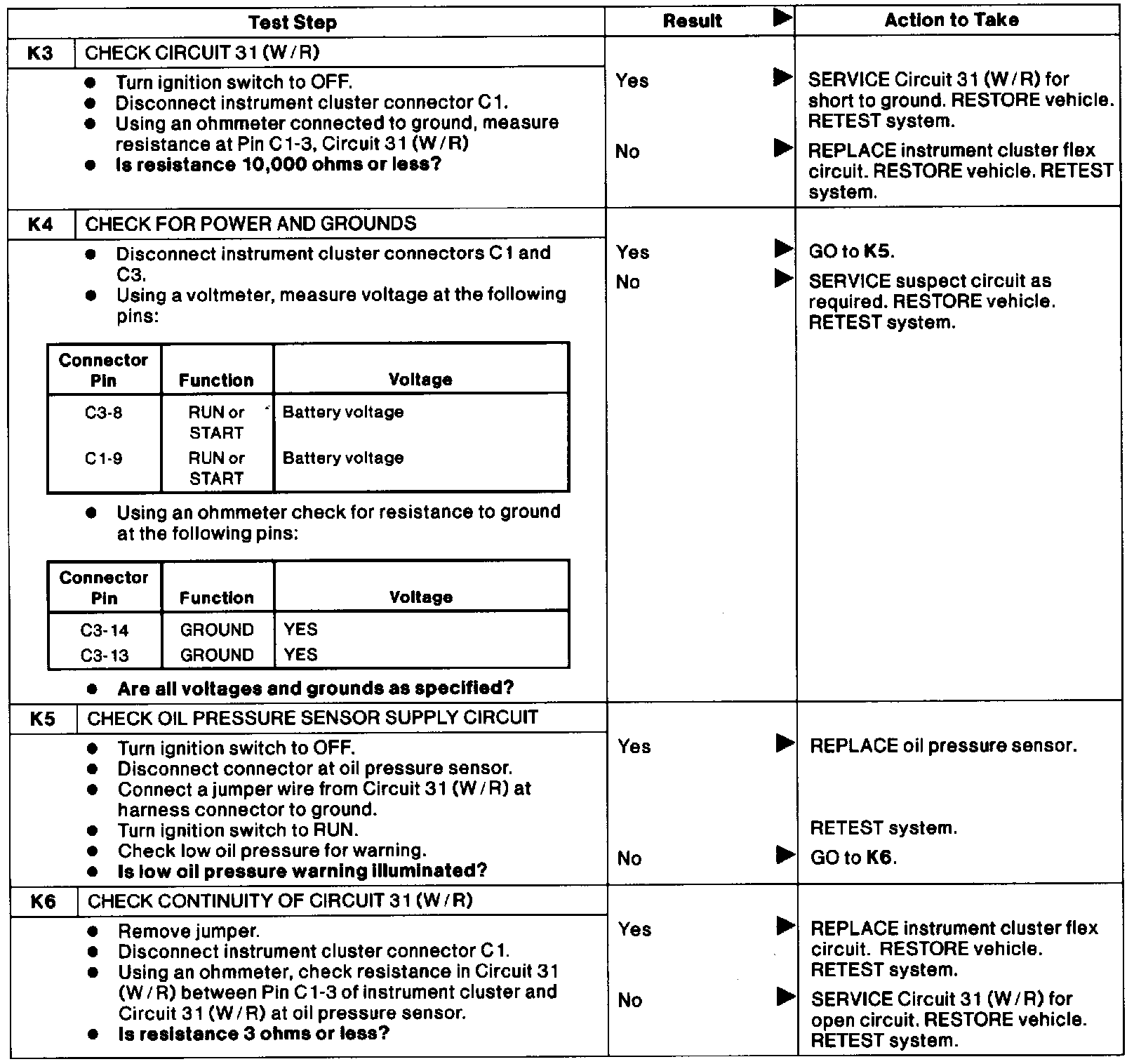

Test K: Low Oil Pressure Warning Lamp Never/Always On.:





Test K3-K6
