Home >> Mercury >> 1995 >> Mystique V6-153 2.5L DOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Pinpoint Tests >> Test E

Test E

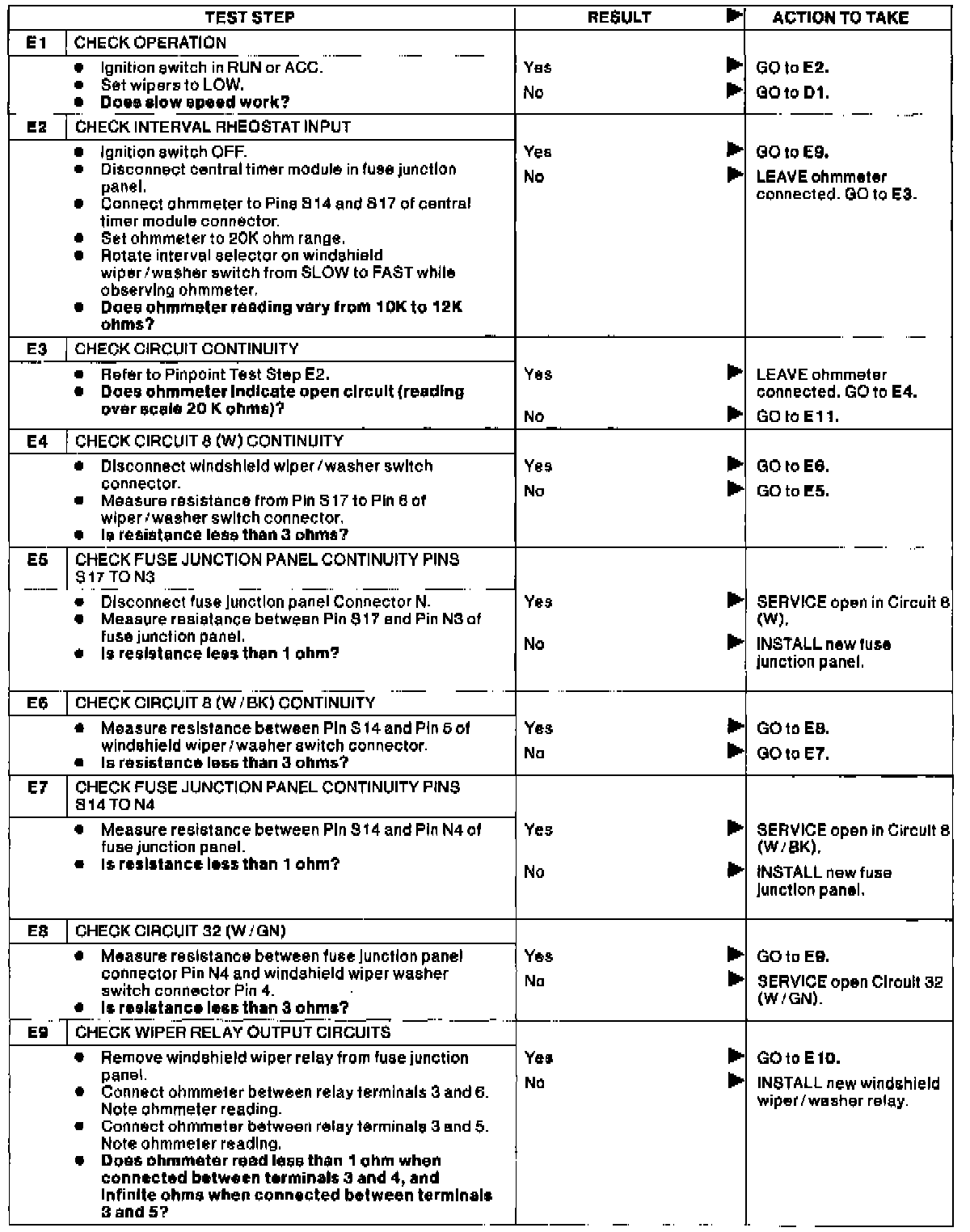

Test E: Wipers Inoperative At Interval Settings:





Test E1-E9

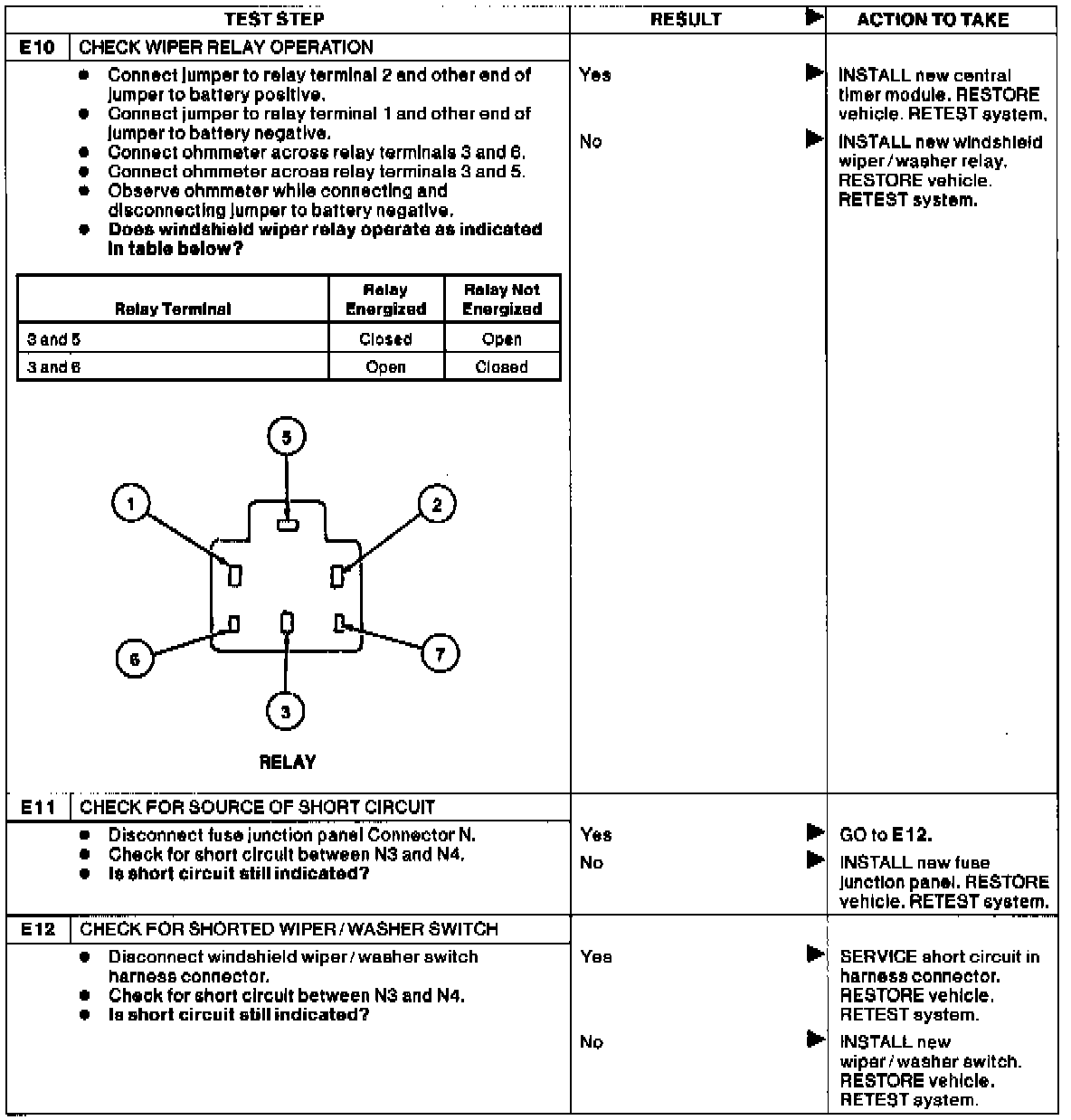

Test E: Wipers Inoperative At Interval Settings:





Test E10-E12
