Test A

Test A: Washer Inoperative:

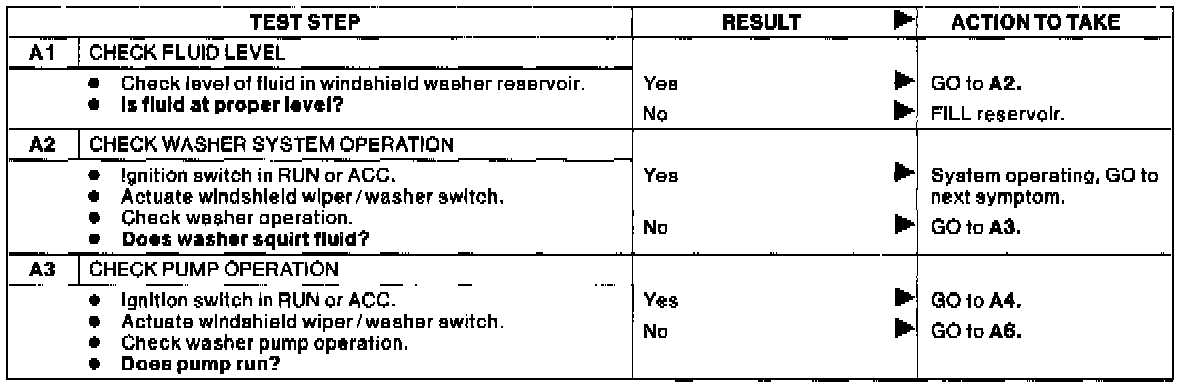

Test A1-A3

Test A: Washer Inoperative:

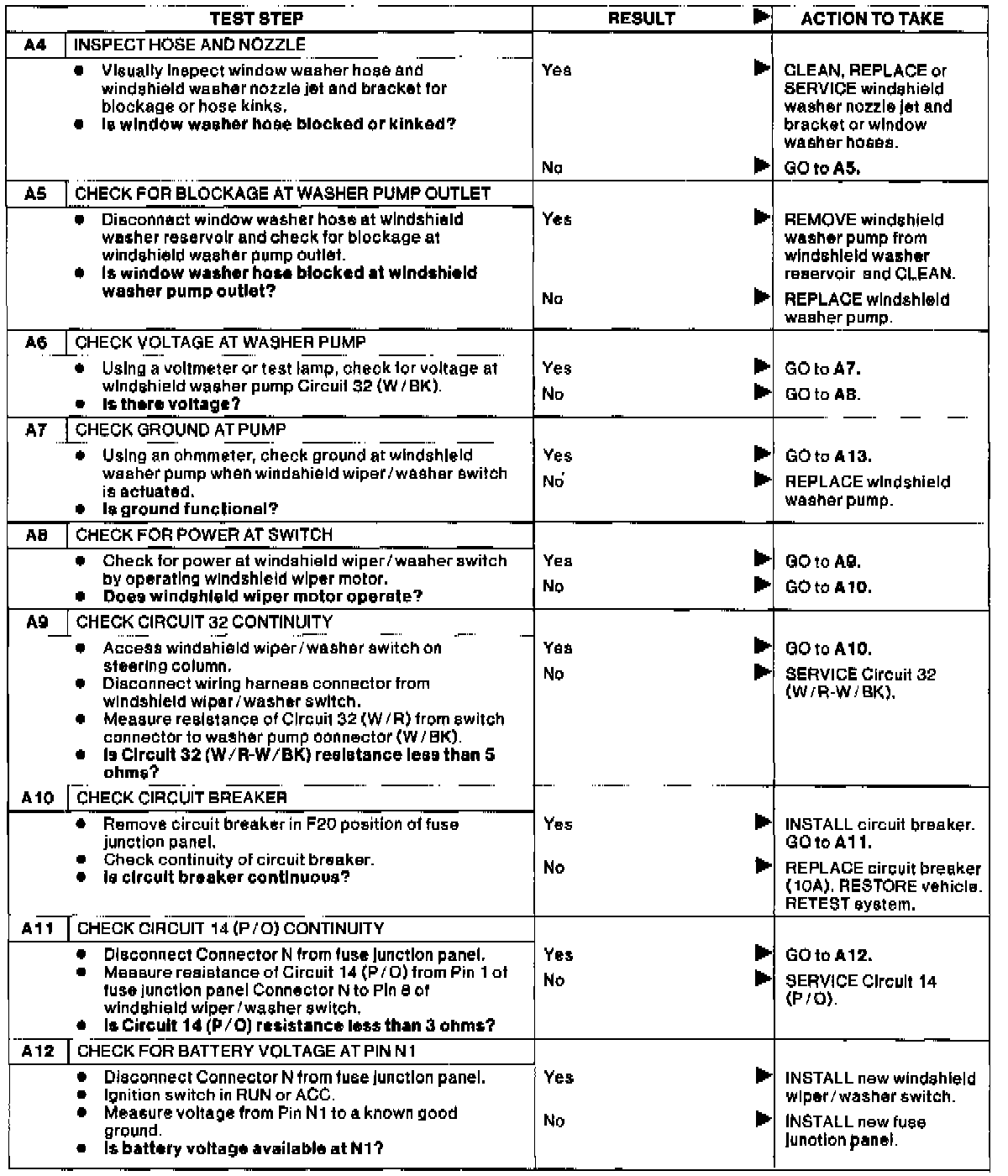

Test A4-A12

Test A: Washer Inoperative:

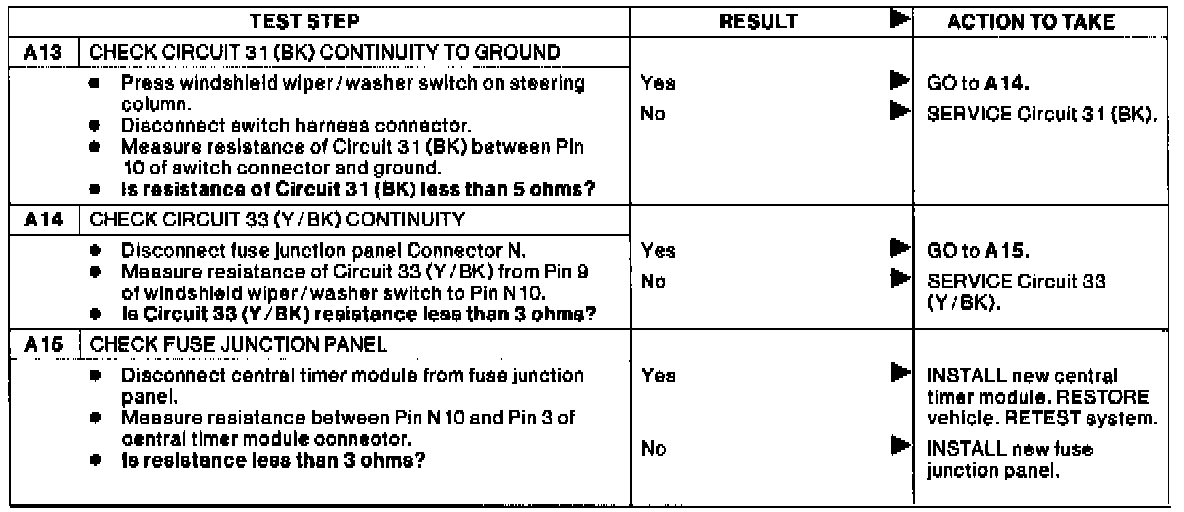

Test A13-A15
