A/T - CD4E Coast Clutch Piston Seal Service Tip

Article No.
95-2-7

01/30/95

TRANSAXLE - CD4E - COAST CLUTCH PISTON SEAL - SERVICE TIP

FORD:
1994-95 PROBE
1995 CONTOUR

LINCOLN-MERCURY:
1995 MYSTIQUE





ISSUE:

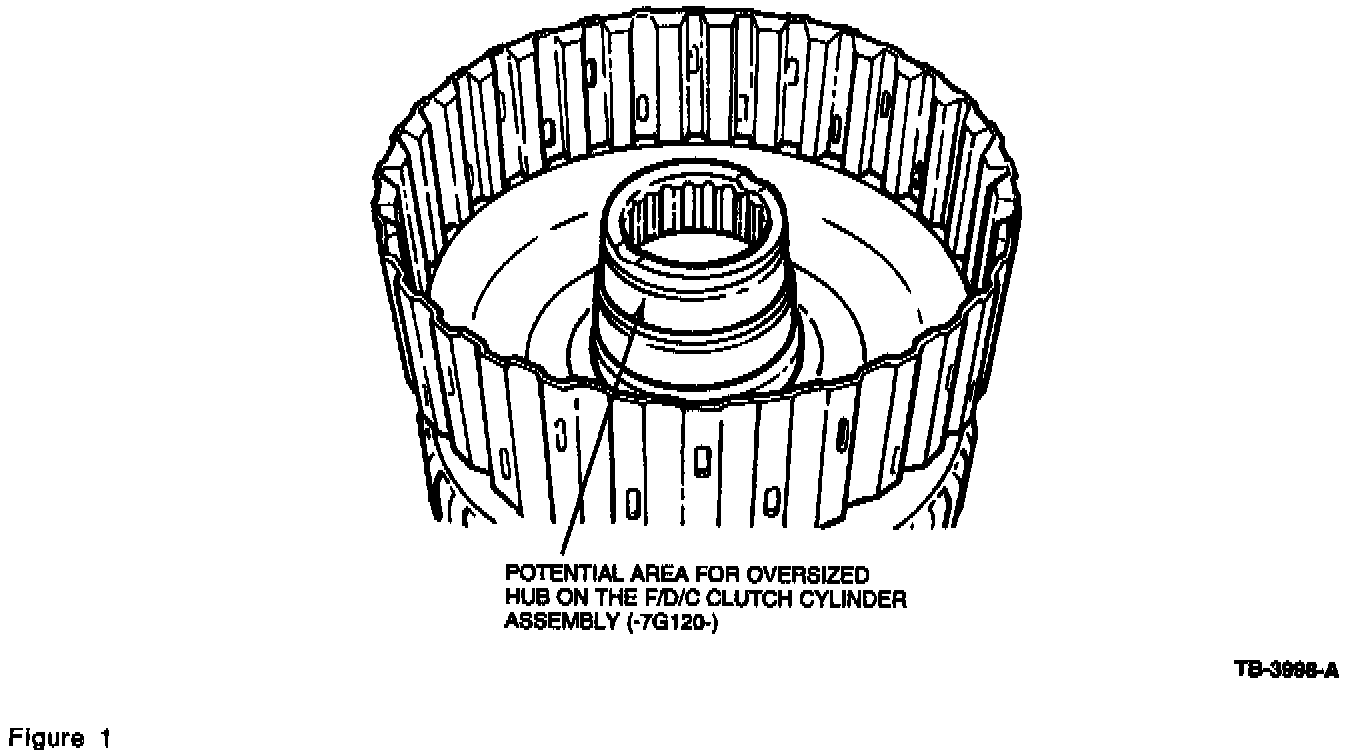

When servicing the transaxle, the Coast Clutch Piston Seal Protector (T94P-77OOO-D3) may not fully seat on some forward/direct/coast clutch cylinder assemblies due to an oversized hub. Refer to Figure 1.





ACTION:

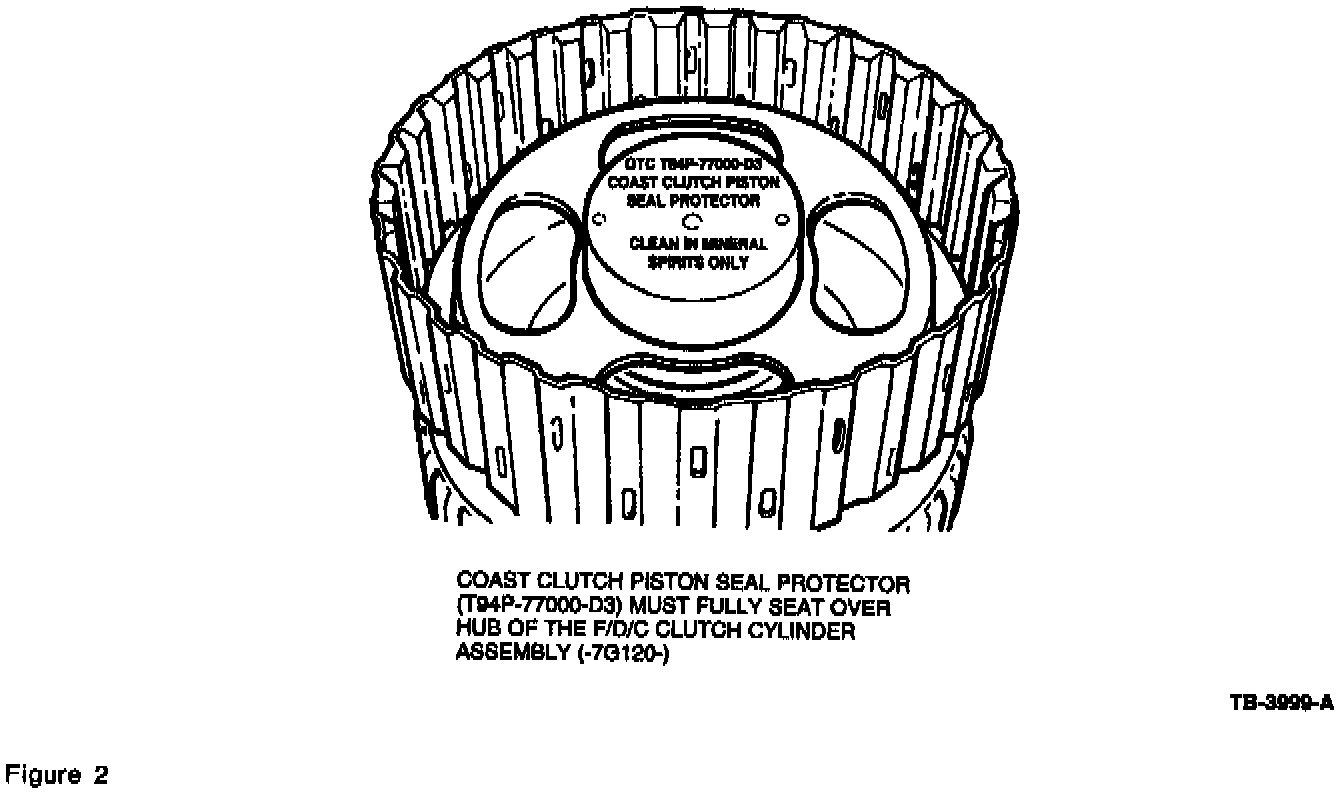

If service is required on the forward/direct/coast clutch cylinder assembly, verify the coast clutch piston seal protector fully seats on the cylinder hub prior to reassembly. Refer to Figure 2. If the Coast Clutch Piston Seal Protector (T94P-77000-D3) does not fully seat on the cylinder hub, replace the forward/direct/coast clutch cylinder assembly. Refer to the Parts Block for the correct forward/direct/coast clutch cylinder assembly.

PART NUMBER PART NAME

F4RZ-7G120-A Forward/Direct/Coast Clutch Cylinder
Assembly (2.5L V-6)
F5RZ-7G120-A Forward/Direct/Coast Clutch Cylinder
Assembly (2.0L I-4)

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 504000
