Home >> Mercury >> 1995 >> Mystique V6-153 2.5L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> A/T Torque Data

A/T Torque Data

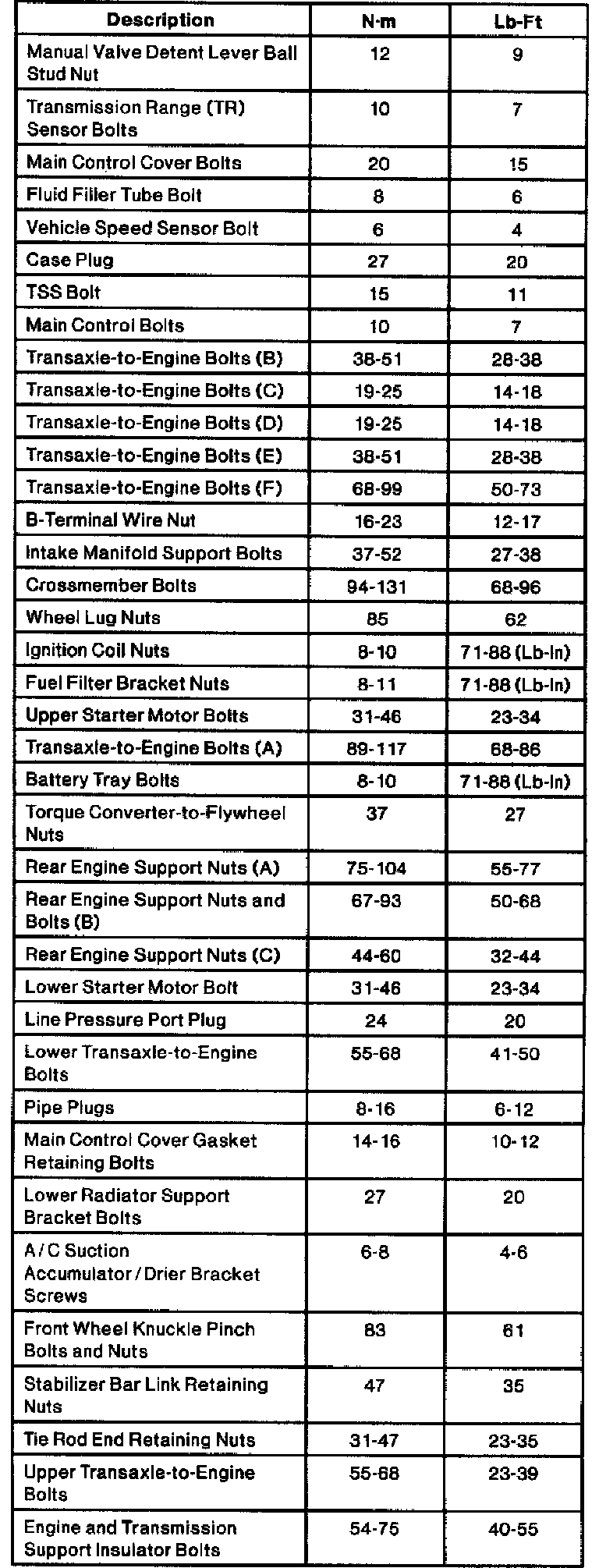

CD4E Torque Specifications:

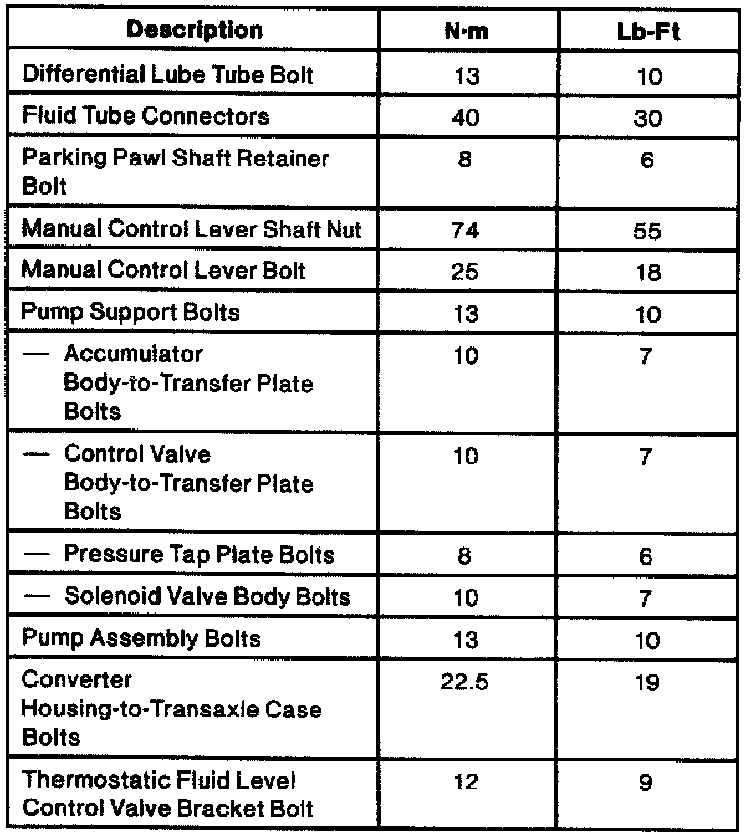

CD4E Torque Specifications:

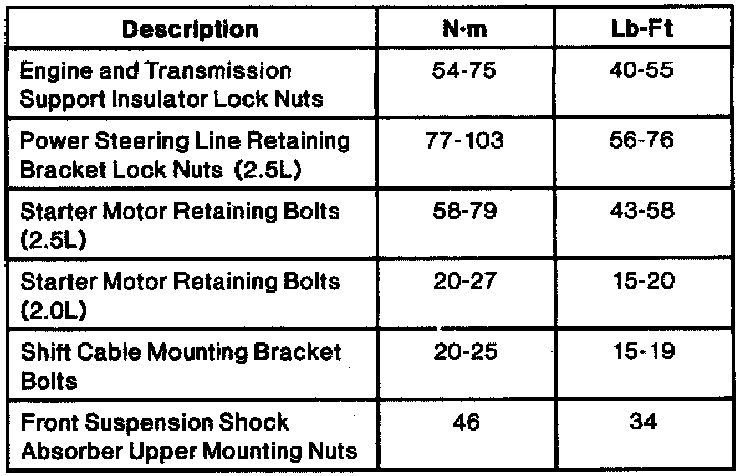

CD4E Torque Specifications:
