Transmission Temperature Sensor/Switch: Diagrams

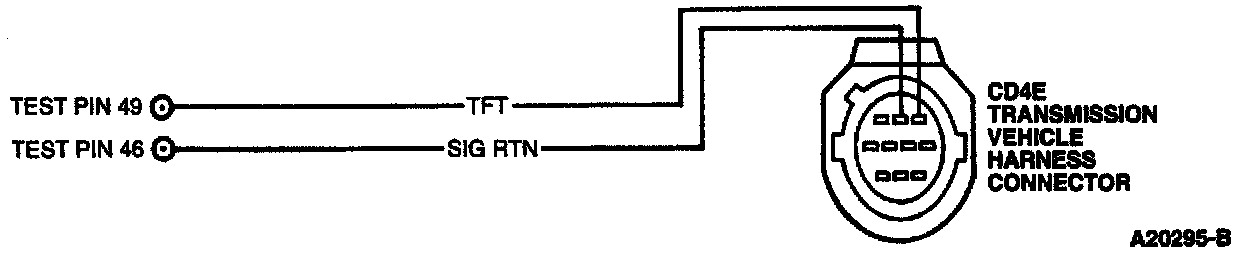

Connector View:






CIRCUIT / WIRE COLOR / PCM PIN NUMBER

TFT / white/red /49

SIG RTN / brown / 46
