Safety Belt With Anchor Plate Thread Damage

1. Remove broken or stripped bolt and discard.
2. Drill out internal threads in safety belt anchor plate with a 27/64-inch drill.
3. Re-thread anchor plate with a 1/2-13 tap.
4. Blow out chips.

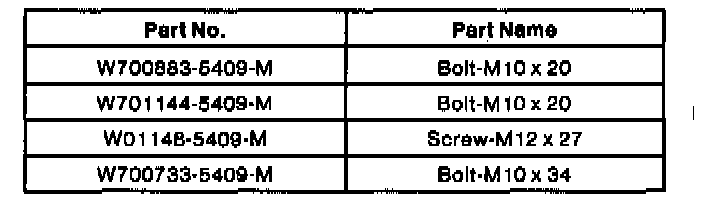

Parts Replacement Chart:

5. Install retainers in proper sequence. Original parts are to be replaced with the service parts indicated in Parts Replacement Chart.
