Seat Belt Height Adjuster

REMOVAL and INSTALLATION

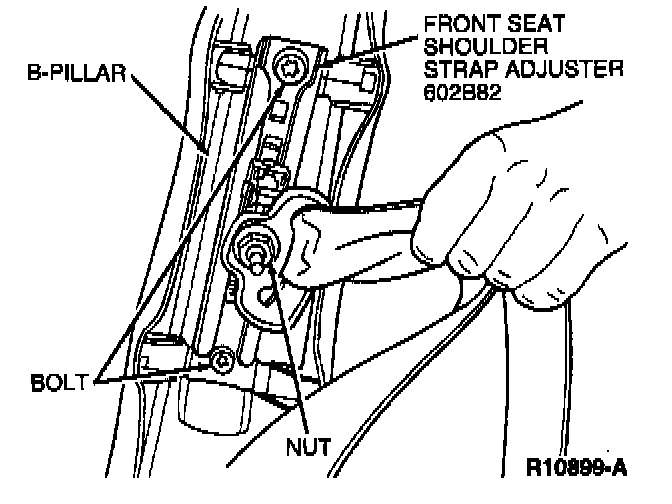

1. Remove upper B-pillar interior trim.
2. Lower front seat shoulder strap adjuster down by pressing lock mechanism buttons and pushing downward.
3. Remove upper front seat shoulder strap adjuster retaining bolt.
4. Back out upper front seat shoulder strap adjuster retaining bolt.
5. Remove lower front seat shoulder strap adjuster retaining bolt.
6. To install, reverse Removal procedure. Tighten front seat shoulder strap adjuster retaining bolt to 38 Nm (28 lb-ft).
7. Check the restraint system for proper operation.
