Driver Side Air Bag Module

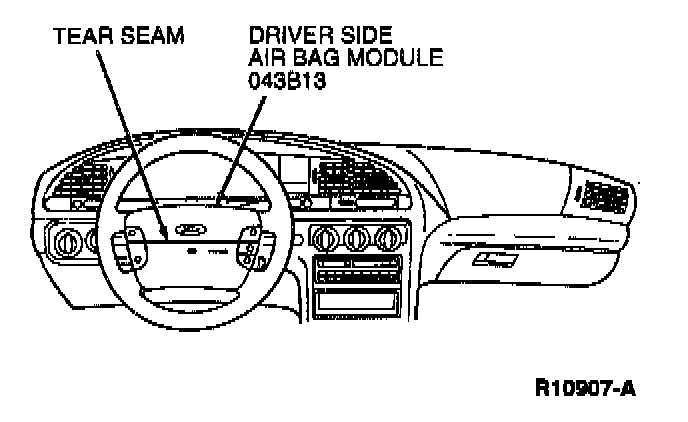

The driver side air bag module is serviced as a complete assembly. Perform proper disposal procedure as necessary. The driver side air bag module is mounted in the center of the steering wheel. The driver side air bag module consists of the following components:
- Inflator.
- Airbag.
- Mounting plate and retainer ring.
- Steering wheel trim cover.

Inflator
- When the sensors close, signaling a crash, electrical energy flows to the air bag inflator.
- Inside the inflator, an igniter converts the electrical signal to thermal energy (heat), causing the ignition of the inflator gas generant.
- This ignition reaction combusts the sodium azide/potassium nitrate gas generant in the inflator, producing nitrogen gas, which inflates the air bag.
- The inflator is not serviceable.

Air Bag
The driver side air bag:
- Is constructed of neoprene-coated nylon.
- It is not a serviceable item.

Mounting Plate and Retainer Ring
The mounting plate and retainer ring:
- Attach and seal the air bag assembly to the inflator.
- Also attach the trim cover and mount the entire driver side air bag module to the steering wheel.
- Are components of the driver side air bag module and cannot be serviced.

Steering Wheel Trim Cover
The steering wheel trim cover:
- Encases driver side air bag module.
- Has a tear seam moulded into the steering wheel trim cover that separates to allow inflation of the bag.
- Is a component of the driver side air bag module and is not serviceable.
