Electronic Brake Control Module: Diagrams

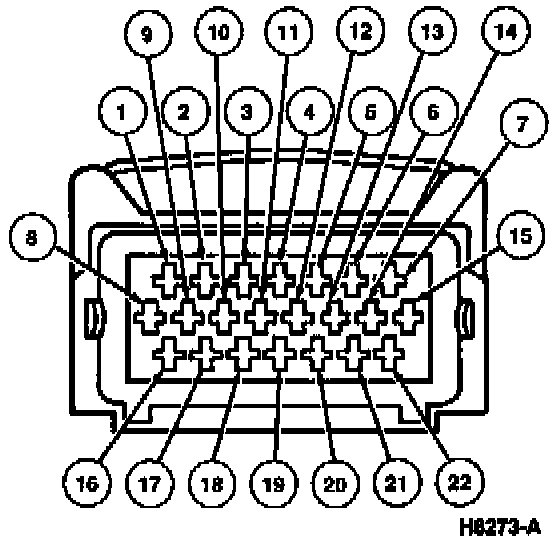

Connector:

ABS WITHOUT TRACTION CONTROL

Pin Circuit Circuit Function

1 8 (W/R) RH Front Brake Anti-Lock Sensor
Signal
2 8 (W/GN) RH Rear Brake Anti-Lock Sensor
Signal
3 8 (W) LH Front Brake Anti-Lock Sensor
Signal
4 Not Used
5 91 (BK/Y) Ground
6 Not Used
7 Not Used
8 8 (W/BL) LH Rear Brake Anti-Lock Sensor
Signal
9 9 (BR/R) RH Front Brake Anti-Lock Sensor
Return
10 9 (BR) LH Front Brake Anti-Lock Sensor
Return
11 Not Used
12 Not Used
13 Not Used
14 Not Used
15 8 (W/P) Data Link Connector
16 9 (BR/BL) LH Rear Brake Anti-Lock Sensor
Return
17 9 (BR/GN) RH Rear Brake Anti-Lock Sensor
Return
18 Not Used
19 Not Used
20 Not Used
21 74 (BL) B+ HOT in RUN
22 31S (BK/BL) Anti-Lock Brake Warning
Indicator

ABS WITH TRACTION CONTROL

Pin Circuit Circuit Function

1 8 (W/R) RH Front Brake Anti-Lock Sensor
Signal
2 8 (W/GN) RH Rear Brake Anti-Lock Sensor
Signal
3 8 (W) LH Front Brake Anti-Lock Sensor
Signal
4 Not Used
5 91 (BK/Y) Ground
6 31S (BK/BL) Traction Control OFF Warning
Lamp
7 31S (BK/W) Traction Control Switch Output
8 8 (W/BL) LH Rear Brake Anti-Lock Sensor
Signal
9 9 (BR/R) RH Front Brake Anti-Lock Sensor
Return
10 9 (BR) LH Front Brake Anti-Lock Sensor
Return
11 7 (Y/R) Traction Control Throttle
Control Motor 5 Volt Supply
12 9 (BR/R) Traction Control Throttle
Control Motor Return
13 Not Used
14 91 (BK/BL) System Identifier
15 8 (W/P) Data Link Connector
16 9 (BR/BL) LH Rear Brake Anti-Lock Sensor
Return
17 9 (BR/GN) RH Rear Brake Anti-Lock Sensor
Return
18 29S (O/Y) Stoplight Switch Input
19 8 (W/R) Traction Control Throttle
Position Sensor
20 Not Used
21 74 (BL) B+ HOT in RUN
22 31S (BK/BL) Anti-Lock Brake Warning
Indicator
