Shift Interlock Control Module: Locations

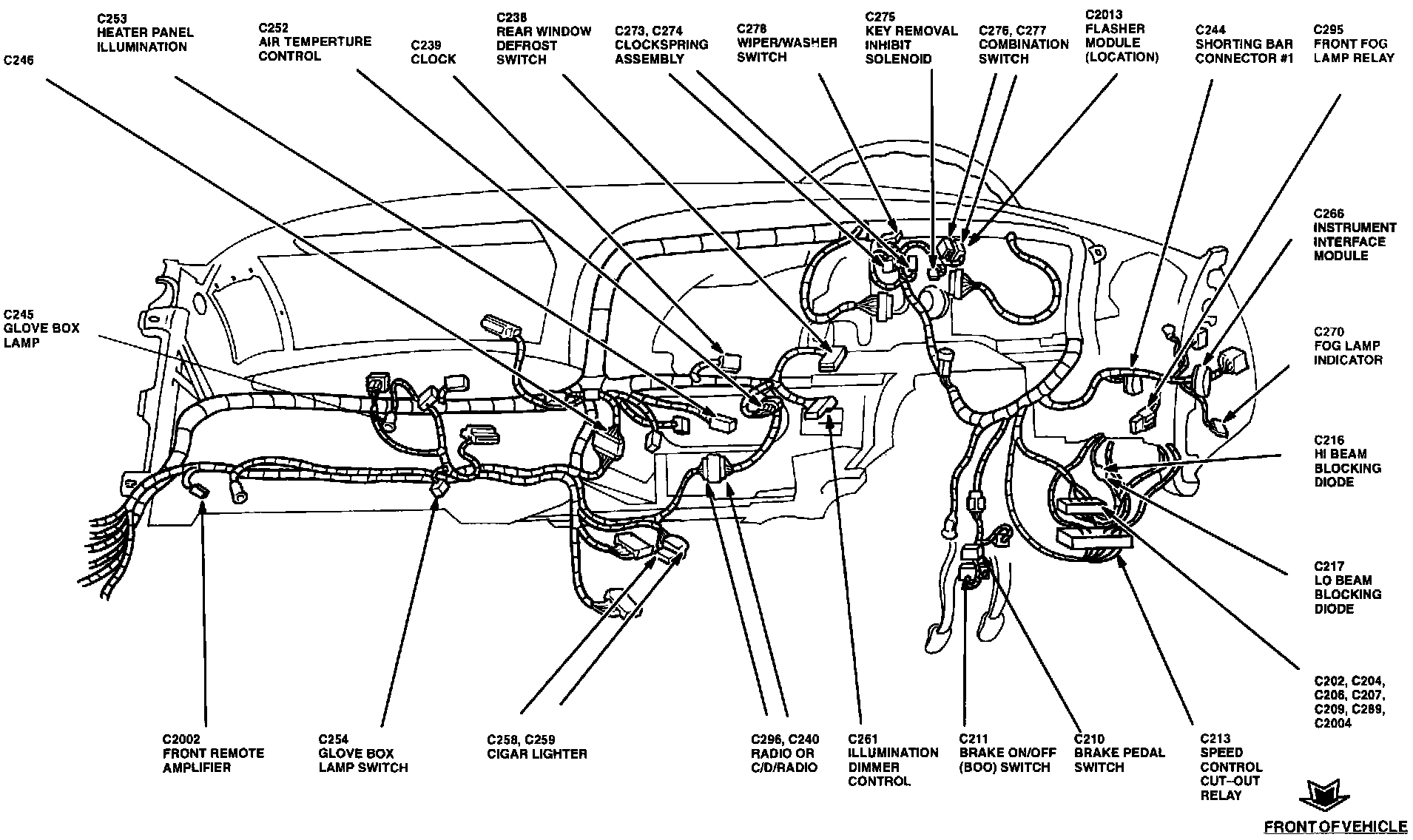

Behind Instrument Panel View:





The Instrument Interface Module is located behind the LH side of the instrument panel, below the LH heater duct.
