Ignition Control Module: Locations

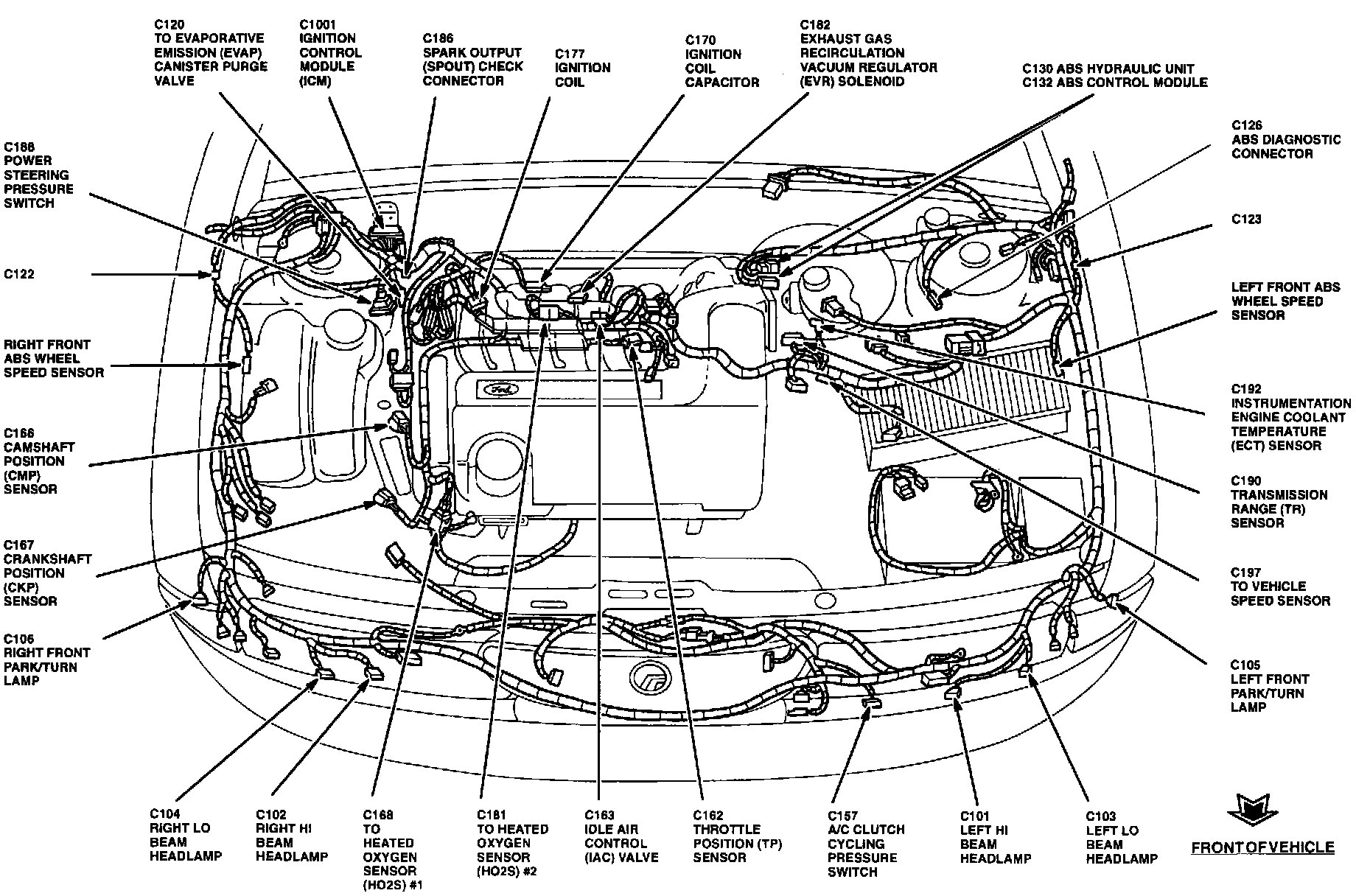

Engine View:





The Ignition Control Module is located at the RH rear of the engine compartment, on strut tower bracket.
