Explaining Acronyms

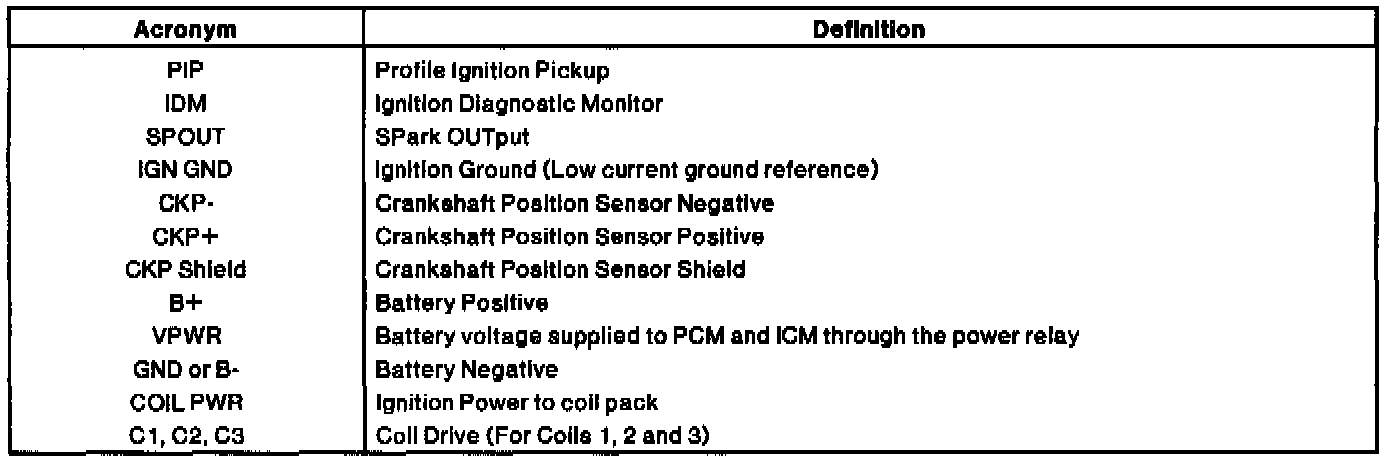

There is a logic to the names on the schematic and overlays for the EI Diagnostic Harness.

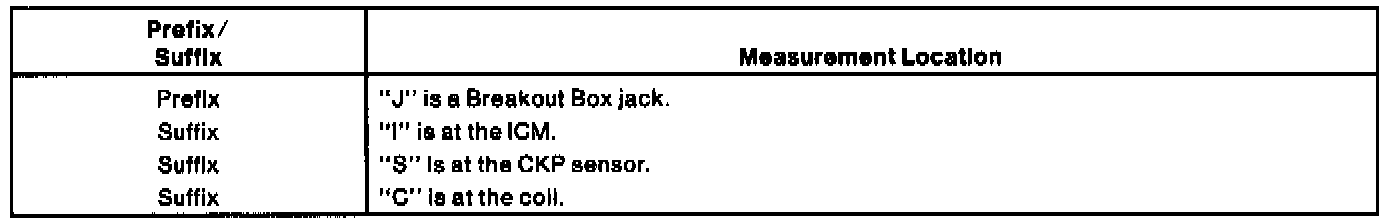

Overlay Designators:

On the schematic and overlays, each of these signals is identified along with a suffix letter that tells you where the measurement is being taken.

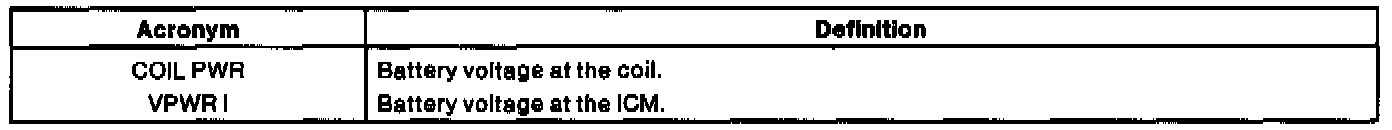

Examples
