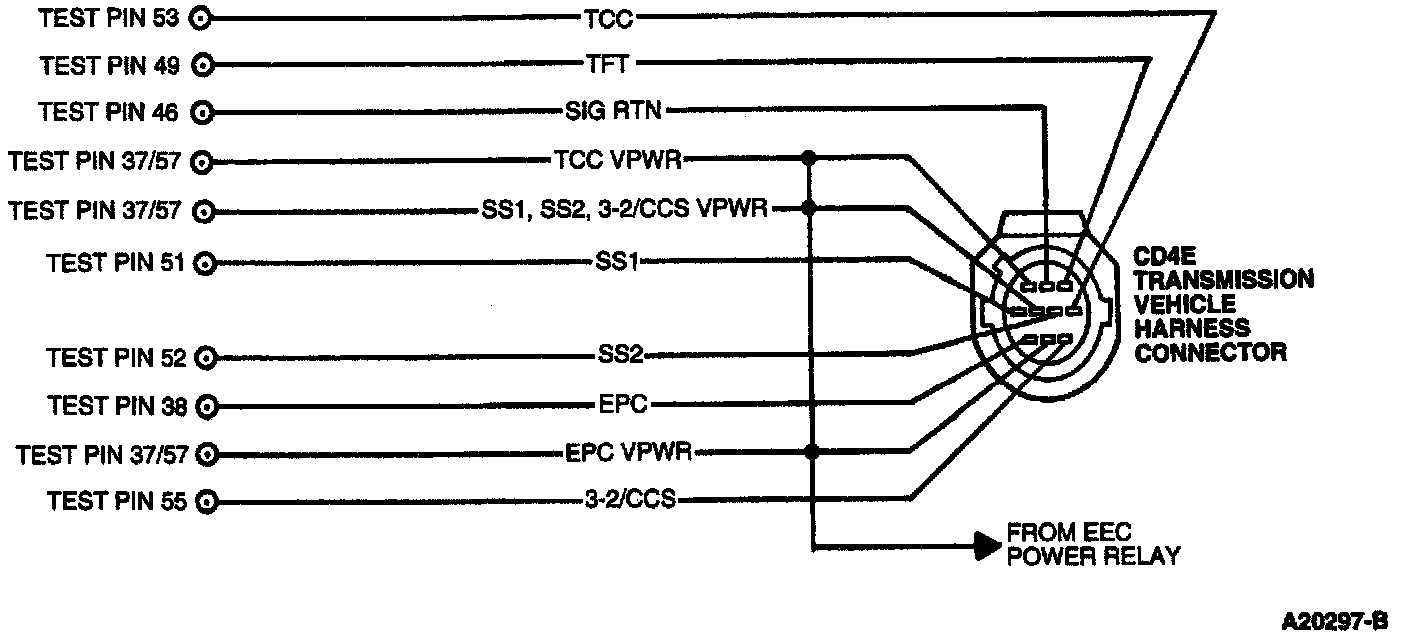

Transmission Connector

Transmission Vehicle Harness Connector:

CIRCUIT / PIN / WIRE COLOR

TCC / 53 / black/white

TFT / 49 / white/red

SIG RTN / 46 / brown

VPWR / 37/57 / gray/yellow

SS1 / 51 / black/yellow

SS2 / 52 /black/blue

EPC / 38 / black/red

3-2/CCS / 55 / black/orange
