NC - Testing Schematic

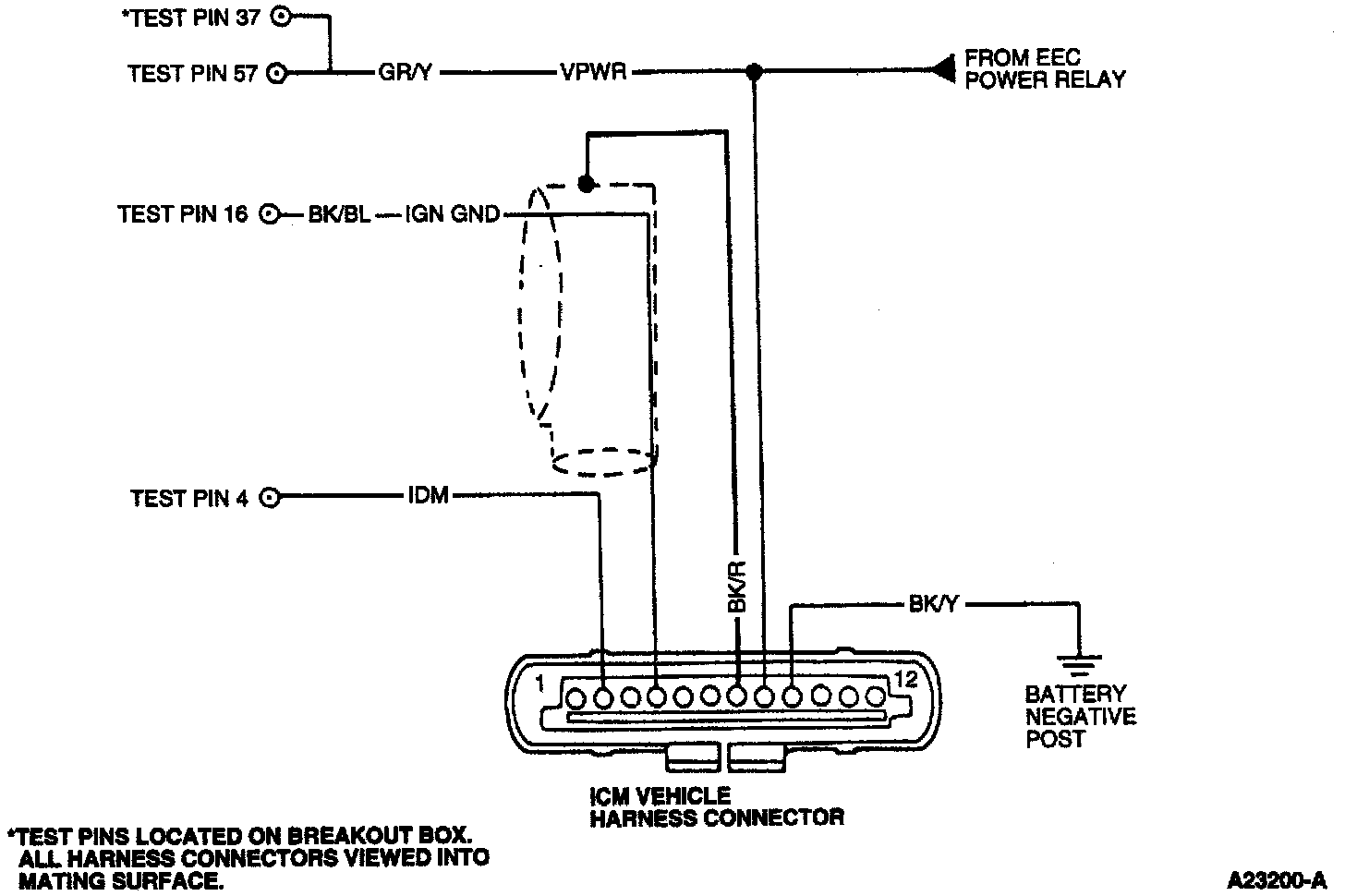

Ignition Diagnostic Monitor Diagram:






CIRCUIT / PIN / WIRE COLOR

IDM / 4 / white/red
