Mystique V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Sensors and Switches - Computers and Control Systems
>>
Oxygen Sensor
>>
Diagrams
>>
Connector Views
Connector Views
Connector Views:
HO2S/Injector Test Pin Wiring Chart For (SFI):

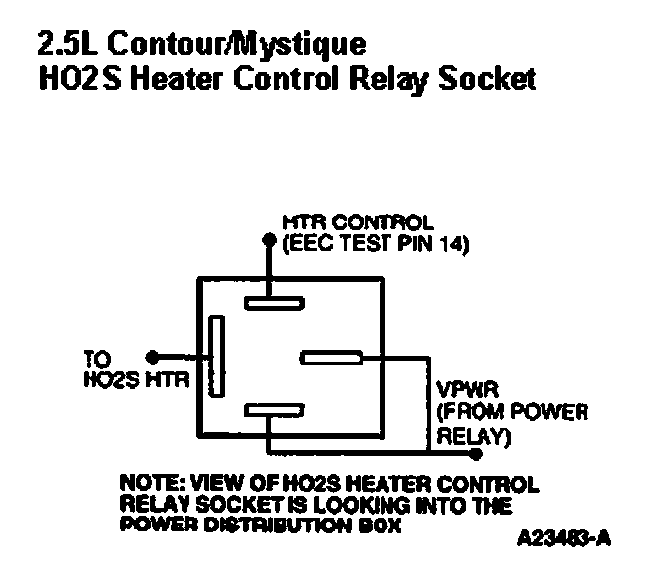

2.5L Contour/Mystique HO2S Heater Control Relay Socket:
HO2S/Injector Test Pin Wiring Chart:
