Charge Lamp/Indicator: Testing and Inspection

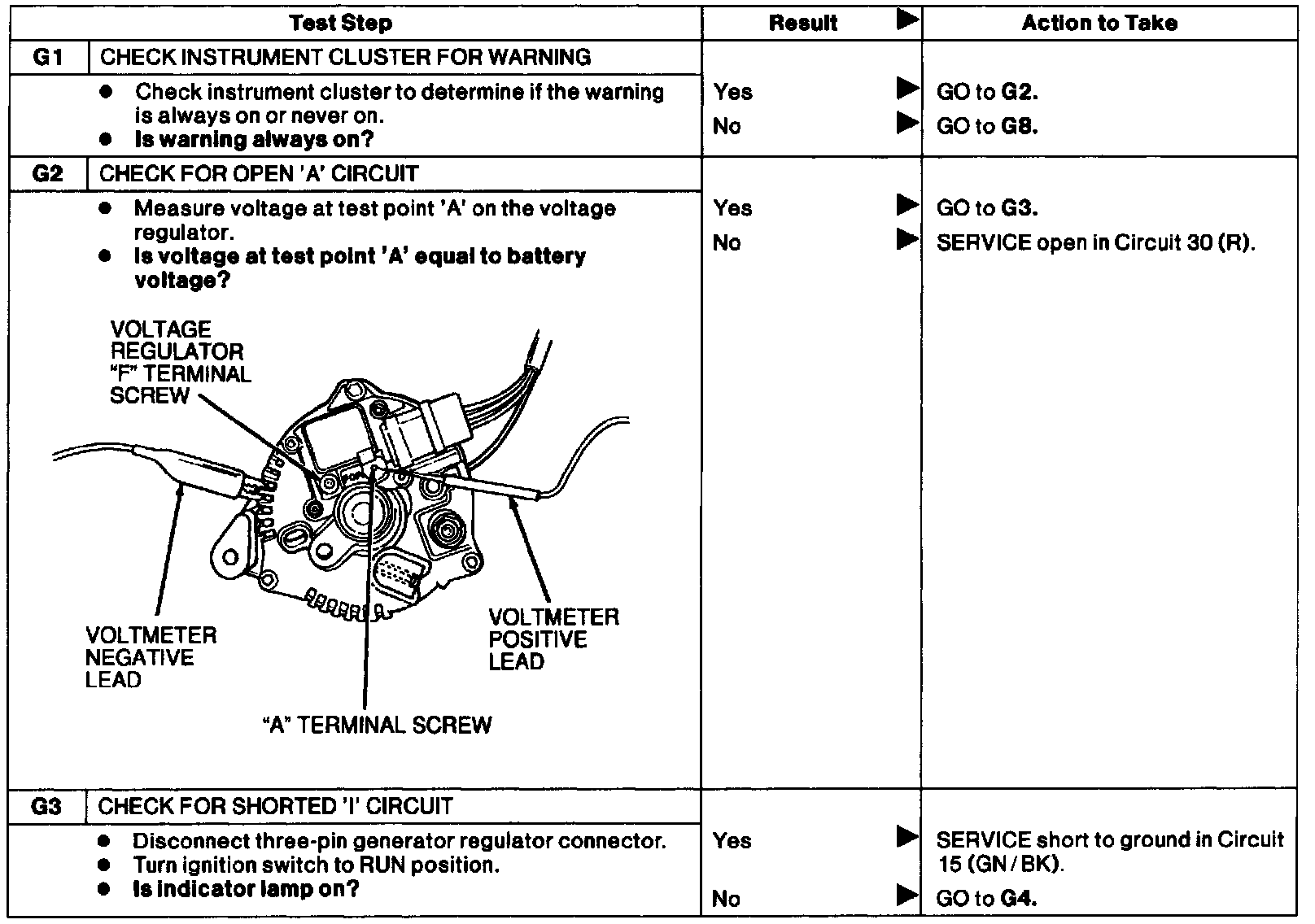

Test G: Charge System Warning Lamp Never/Always On.:

Test G1-G3

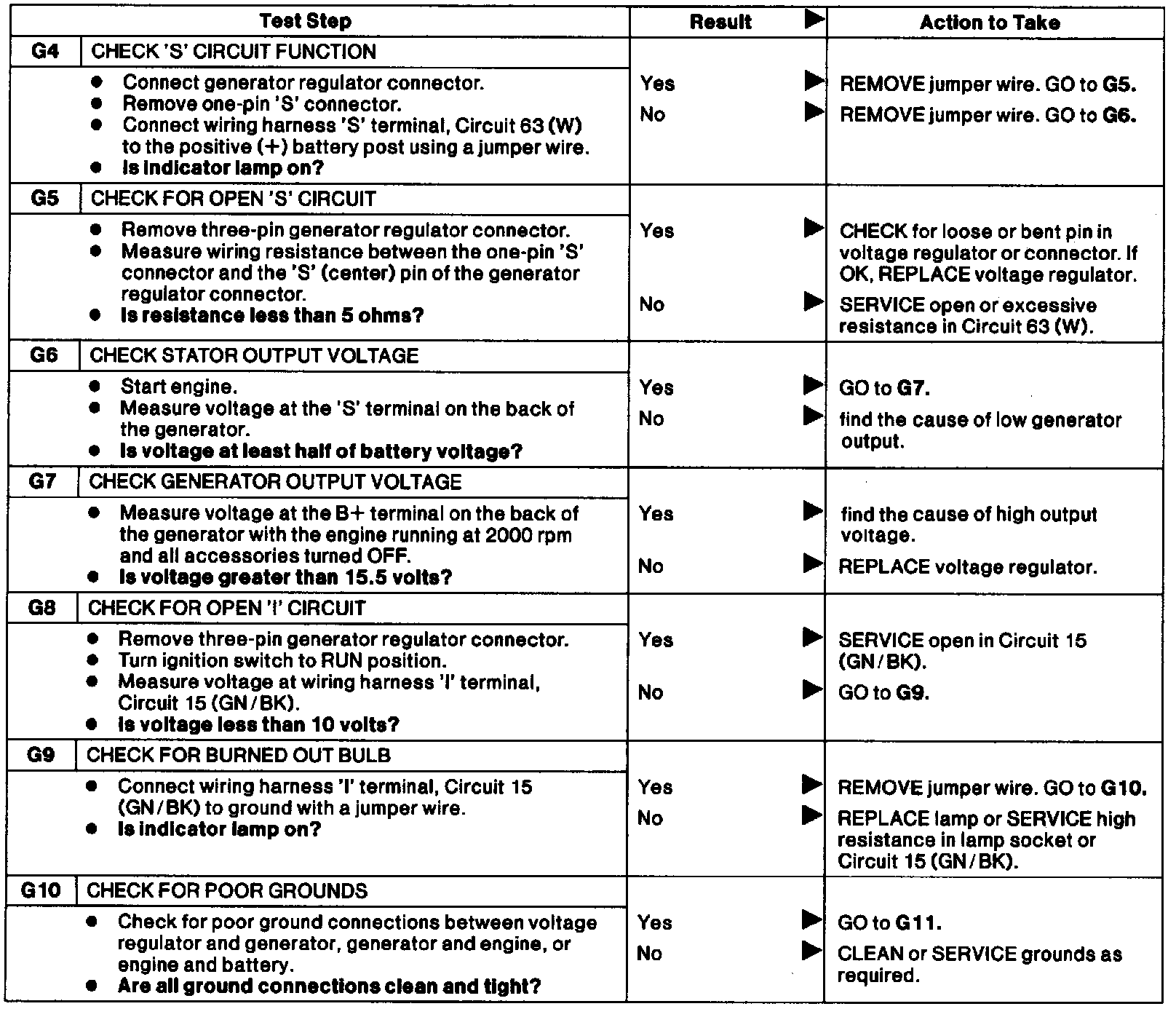

Test G: Charge System Warning Lamp Never/Always On.:

Test G4-G10

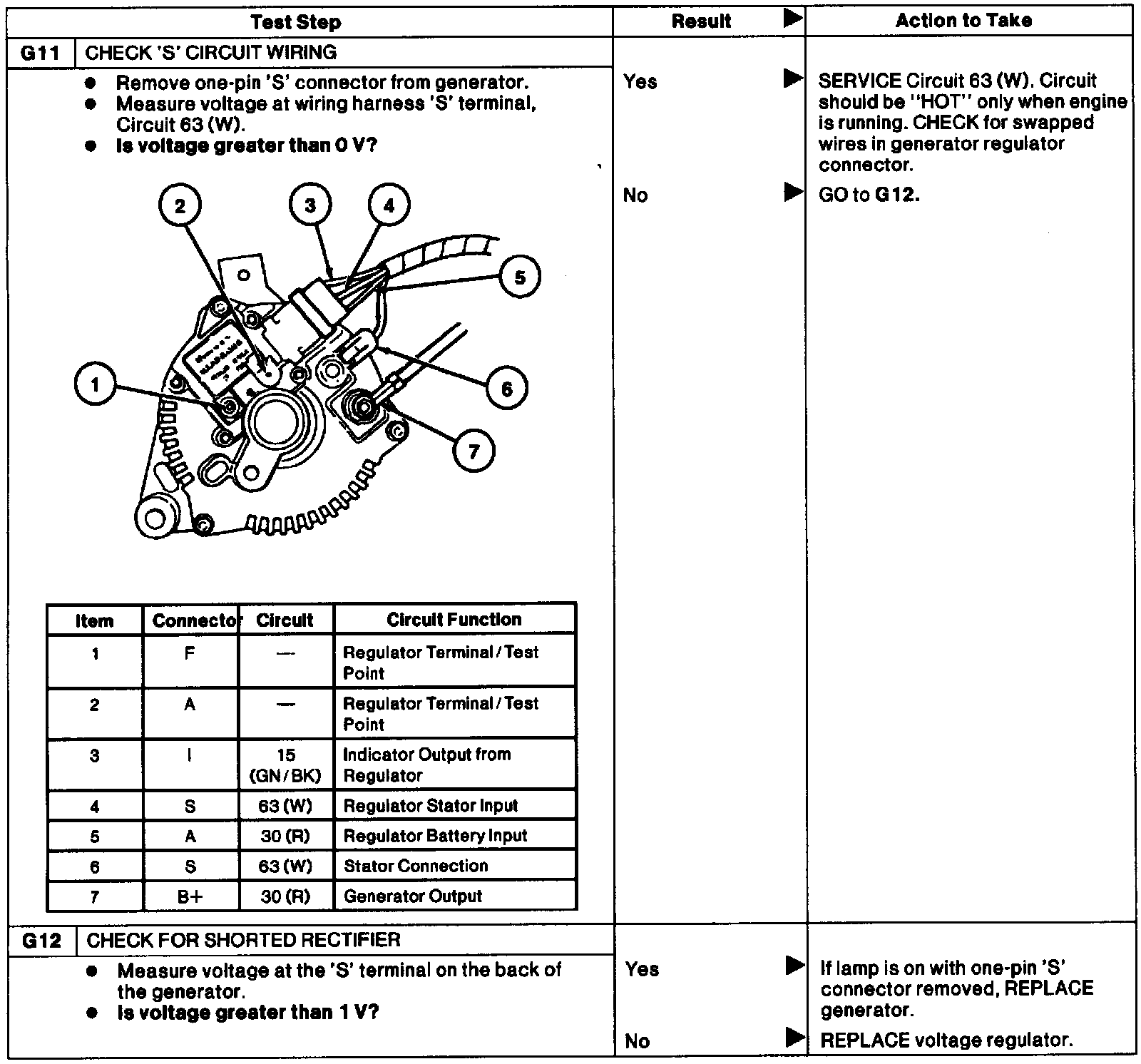

Test G: Charge System Warning Lamp Never/Always On.:

Test G11-G12
