Interior Fuse Panel
>>
Fuse Circuits
>>
Fuse RADIO
Fuse RADIO
Fuse RADIO
- protects the following circuits:
^
Clock
^
Radio
^
Radio/Compact Disc

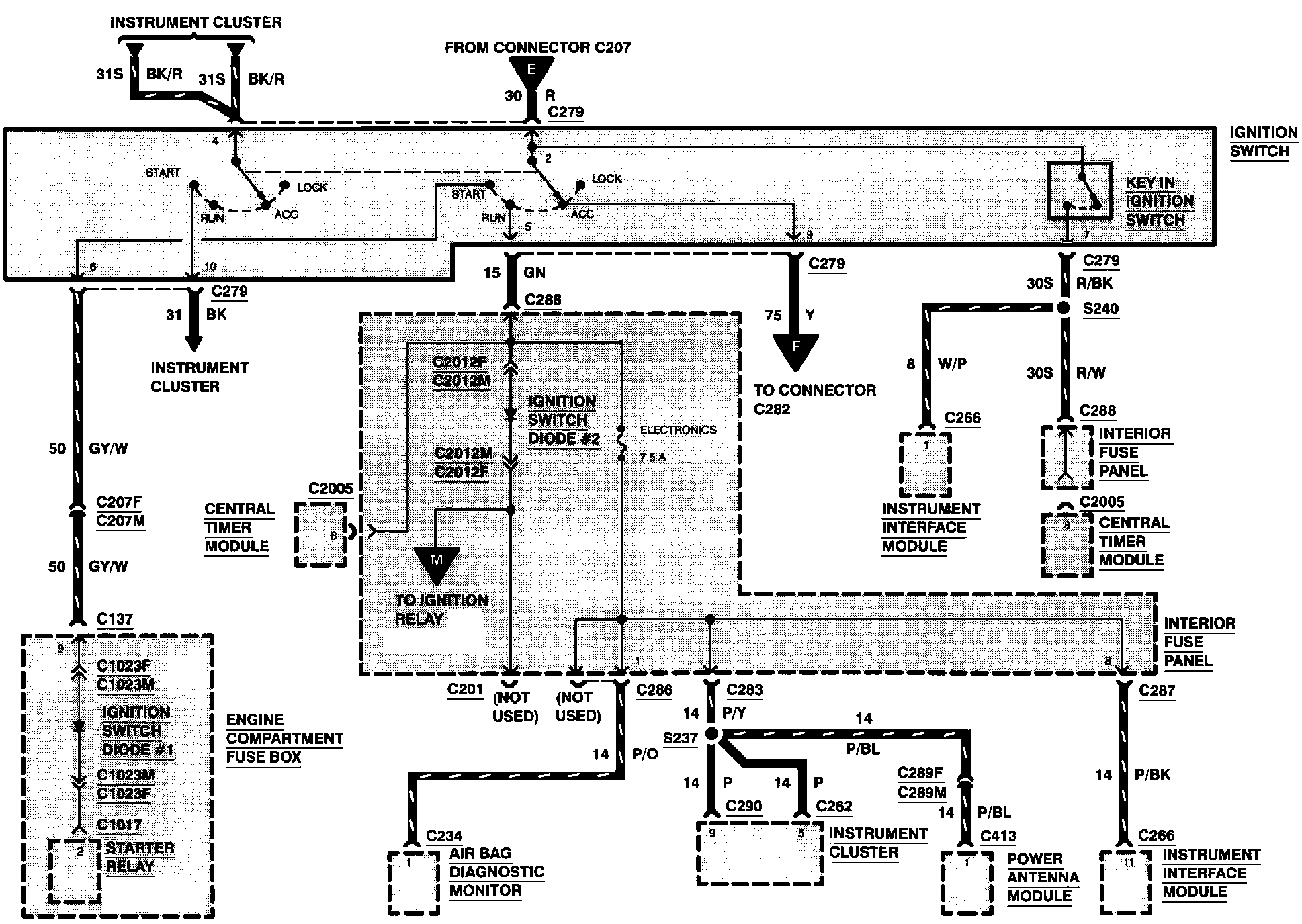

Power Distribution:

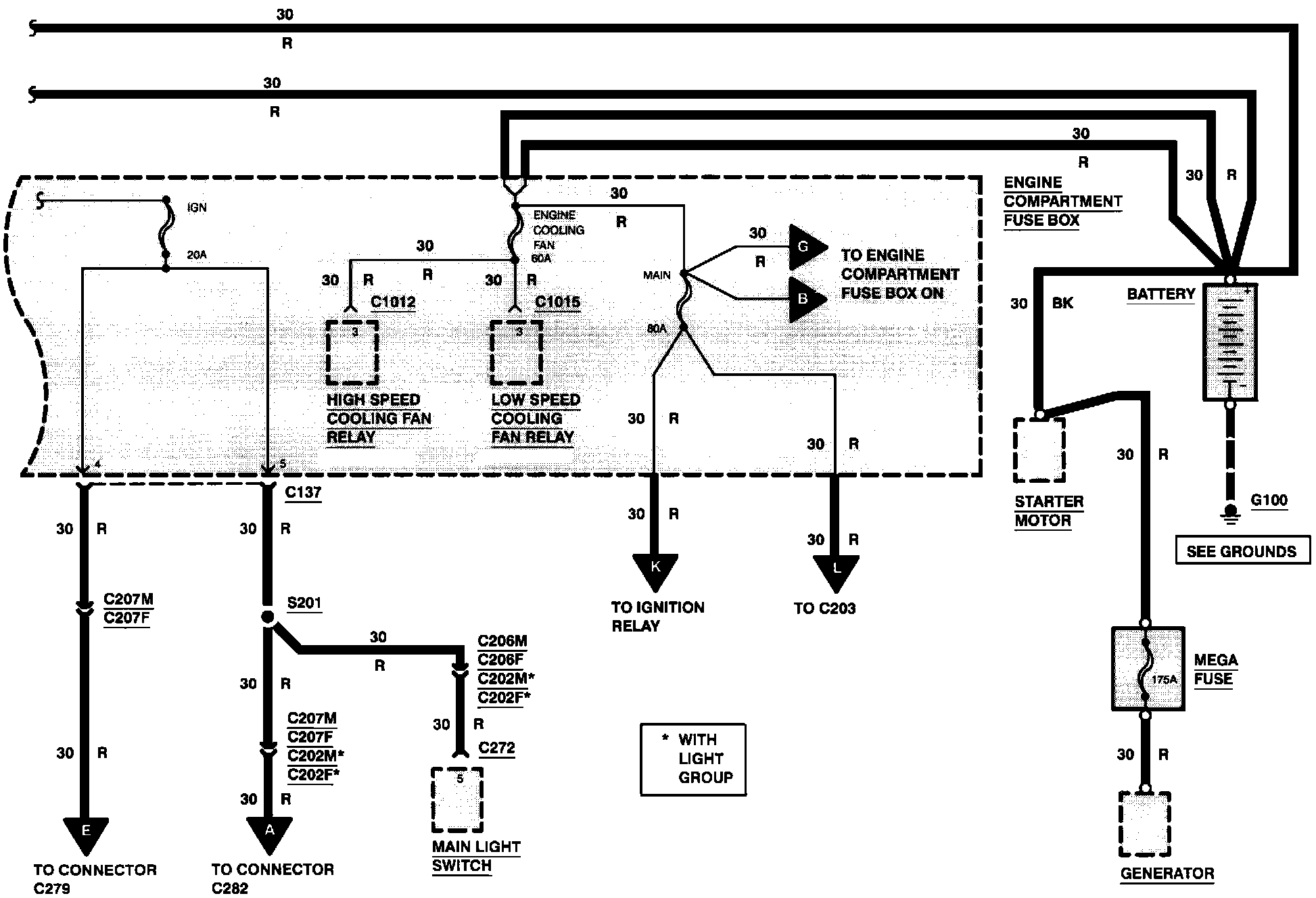

Power Distribution:
Power Distribution:
Power Distribution:
