Ground Diagrams (By Component Name)

Grounds (G100):

ABS Control Module
ABS Hydraulic Unit
Battery
Gearshift Lever Unit
Heated Oxygen Sensor
Ignition Control Module
Instrumentation Engine Coolant Temperature
Mass Air Flow Sensor
Powertrain Control Module
Speed Control Module
Vehicle Speed Sensor

Grounds (G100):

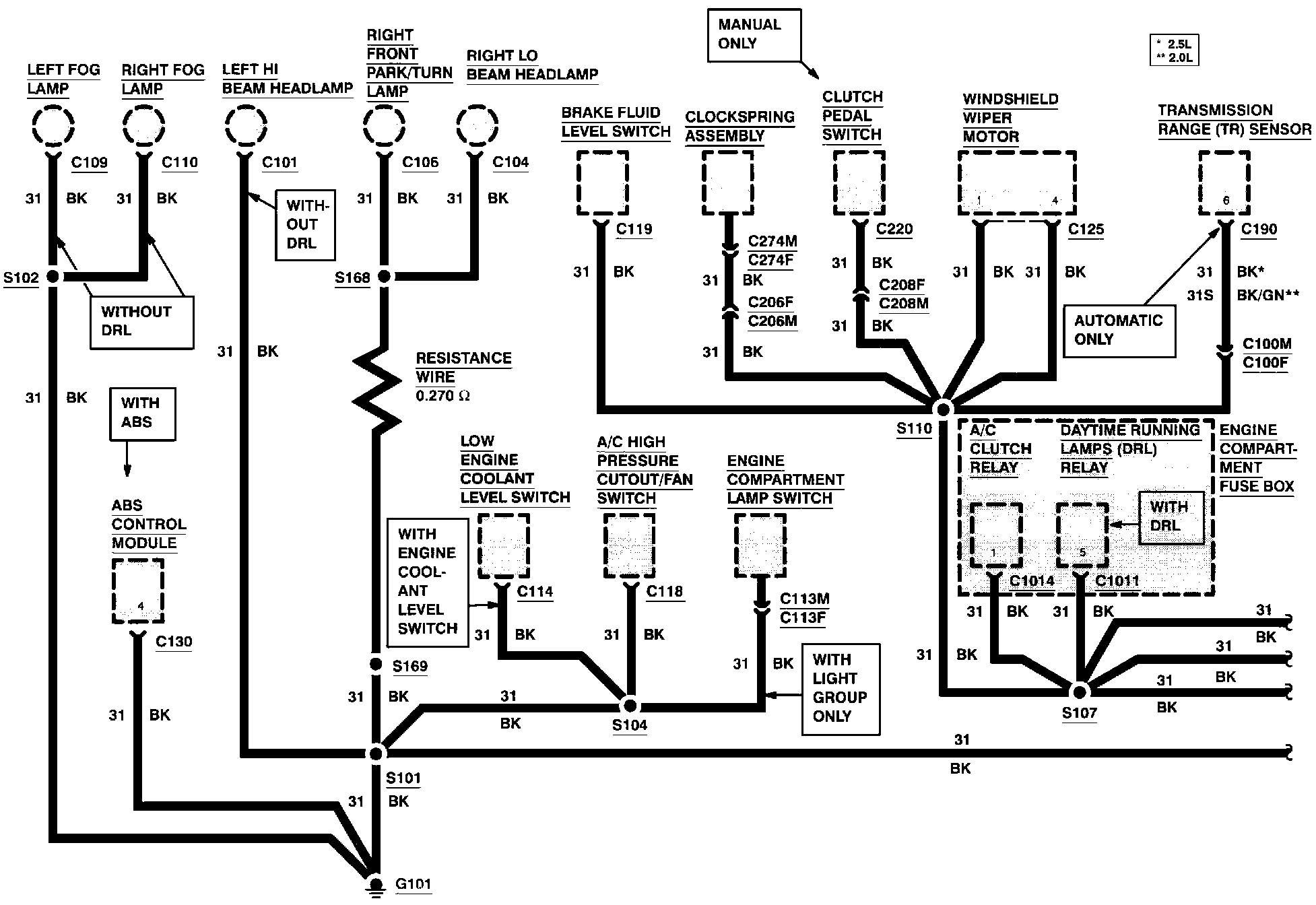

Grounds (G101, G102):

A/C Clutch Relay
A/C High Pressure Cutout/Fan Switch
ABS Control Module
Brake Fluid Level Switch
Clockspring Assembly
Clutch Pedal Switch
Daytime Running Lamp Relay
Engine Compartment Fuse Box
Engine Compartment Lamp Switch
Left Fog Lamp
Left Hi Beam Headlamp
Low Engine Coolant Level Switch
Right Fog Lamp
Right Front Park/Turn Lamp
Right Lo Beam Headlamp
Transmission Range Sensor
Windshield Wiper Motor

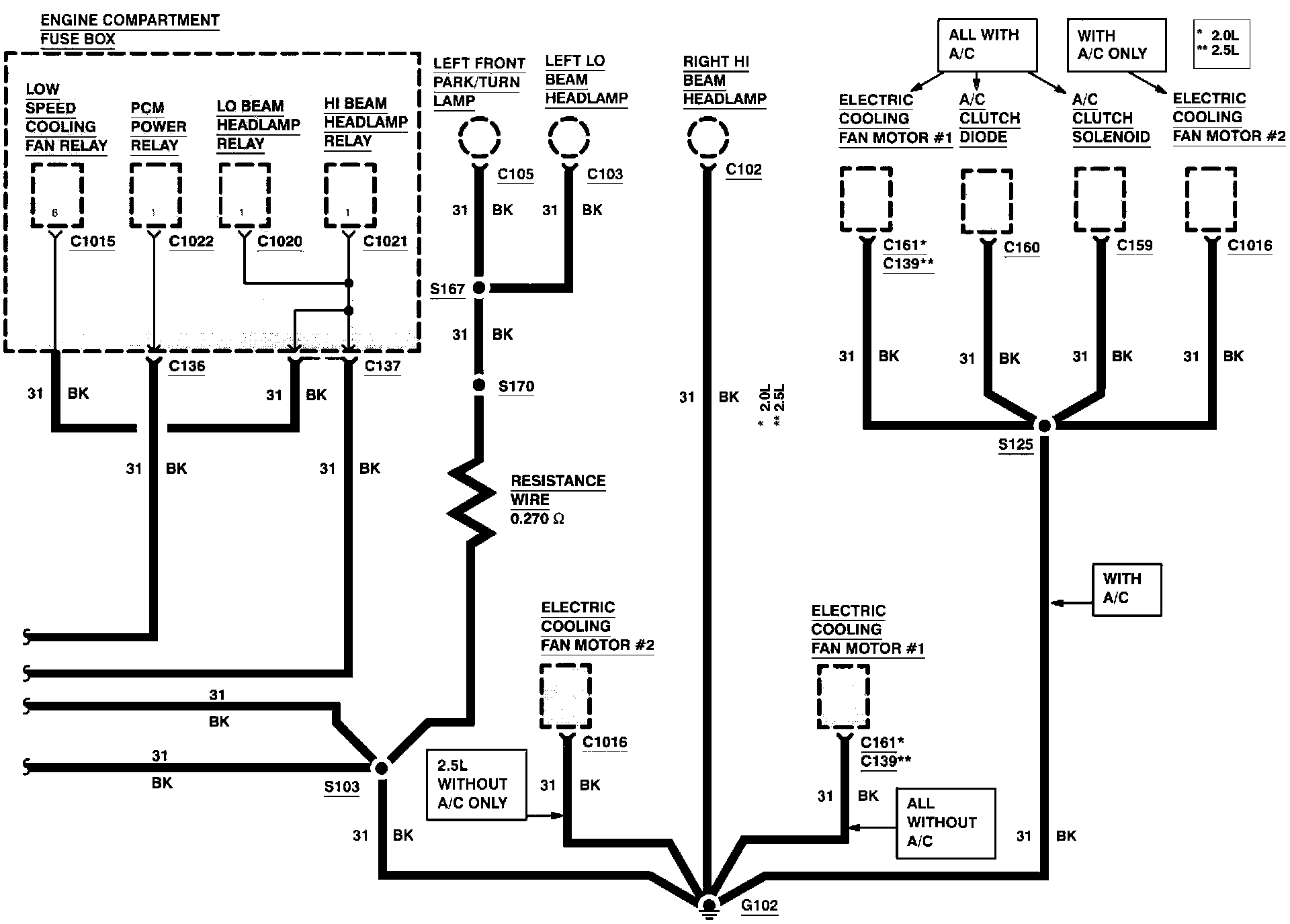

Grounds (G101, G102):

A/C Clutch Diode
A/C Clutch Solenoid
Electric Cooling Fan Motor #1
Electric Cooling Fan Motor #2
Engine Compartment Fuse Box
Hi Beam Headlamp Relay
Left Front Park/Turn Lamp
Left Lo Beam Headlamp
Lo Beam Headlamp Relay
Low Speed Cooling Fan Relay
PCM Power Relay
Right Hi Beam Headlamp

Grounds (G103):

Camshaft Position Sensor
Crankshaft Position Sensor
Ignition Control Module
Powertrain Control Module
Spark Output Check Connector
Turbine Shaft Speed Sensor

Grounds (G301):

Door Lock Relay
Gearshift Lever Unit
Remote Entry Module

Grounds (G301):

Right Power/Heated Mirror

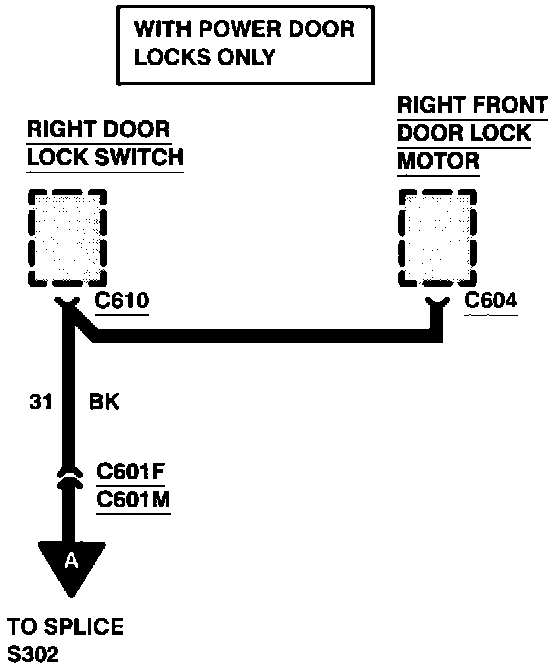

Grounds (G301):

Right Front Door Lock Motor
Right Power/Heated Mirror

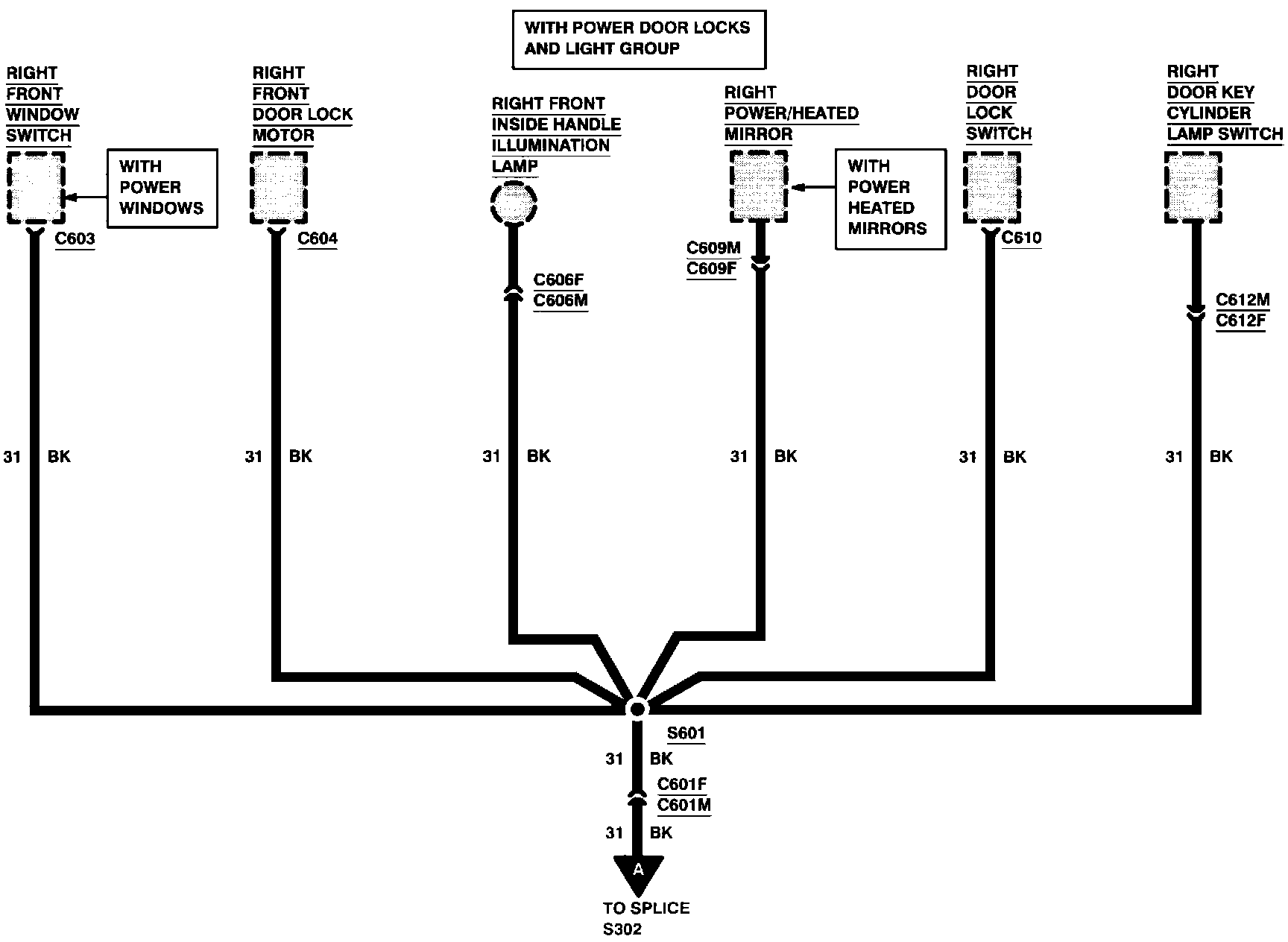

Grounds (G301):

Right Door Key Cylinder Lamp Switch
Right Door Lock Switch
Right Front Door Lock Motor
Right Front Inside Handle Illumination Lamp
Right Front Window Switch
Right Power/Heated Mirror

Grounds (G303, G401):

Left Door Key Cylinder Lamp Switch
Left Door Lock Switch
Left Front Door Lock Motor
Left Front Inside Handle Illumination Lamp
Left Power/Heated Mirror
Master Window Control Switch
One Touch Down Window Relay

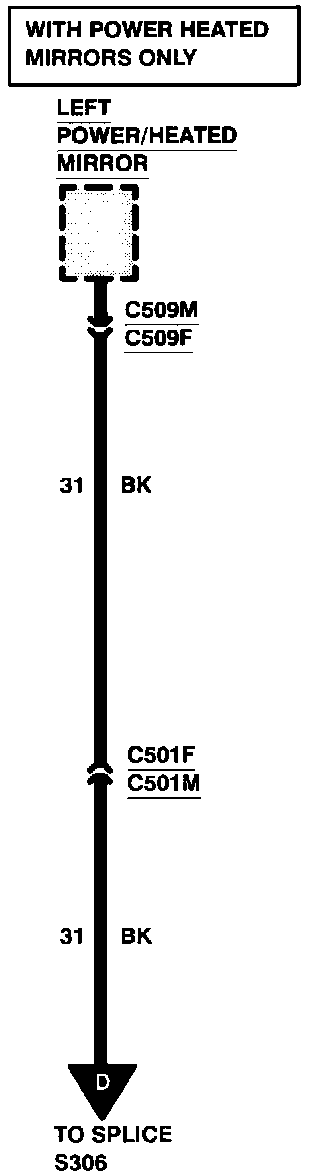

Grounds (G303, G401):

Left Power/Heated Mirror

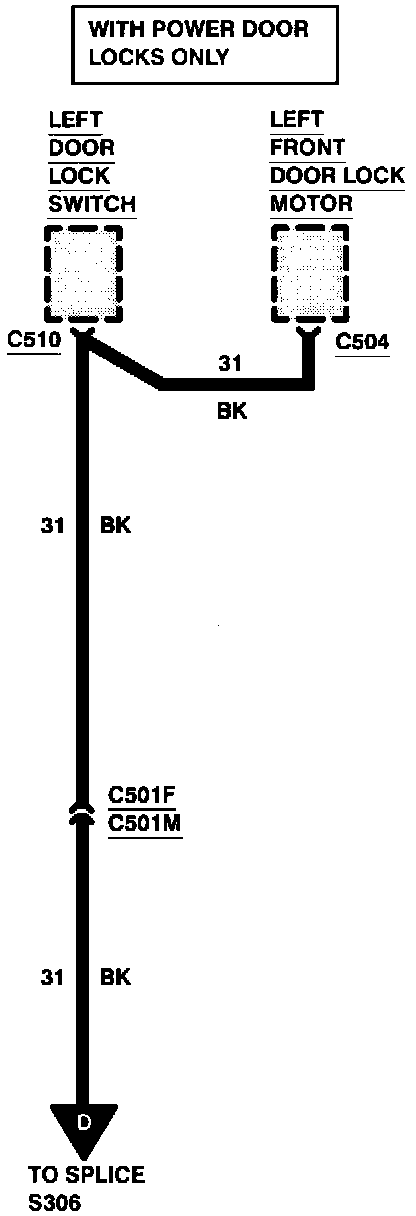

Grounds (G303, G401):

Left Door Lock Switch
Left Front Door Lock Motor

Grounds (G303, G401):

Left Rear Door Lock Motor
Left Rear Inside Handle Illumination

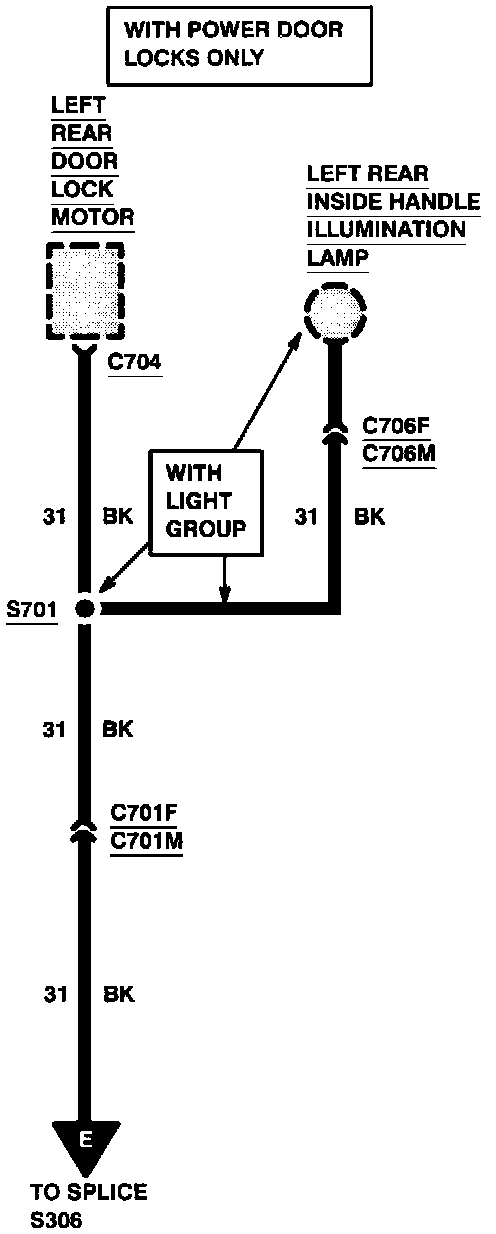

Grounds (G303, G401):

Left Rear Door Lock Motor
Left Rear Inside Handle Illumination
Left Rear Power Window Switch

Grounds (G301):

Right Rear Door Lock Motor
Right Rear Inside Handle Illumination Lamp

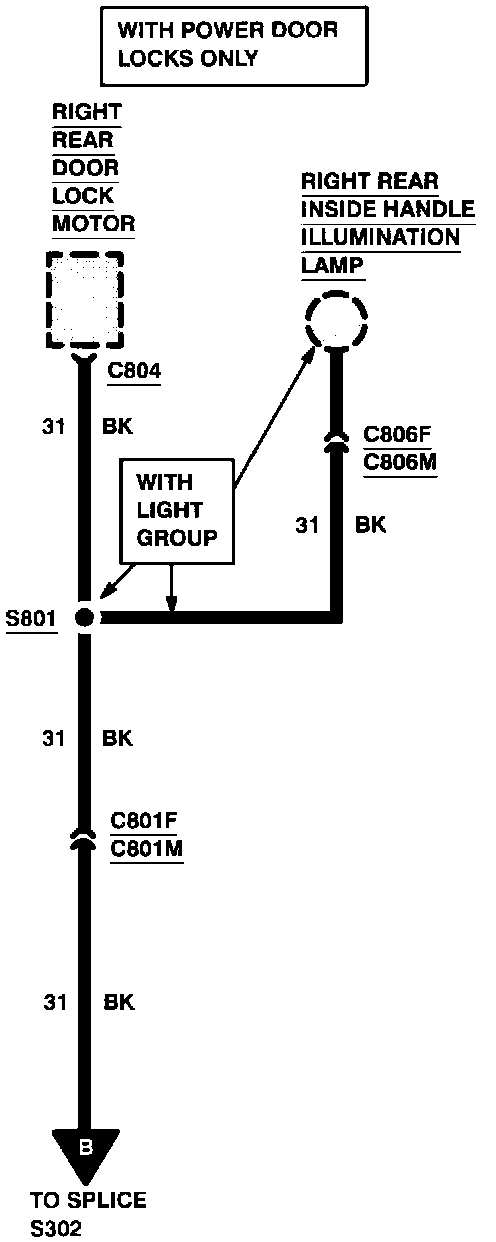

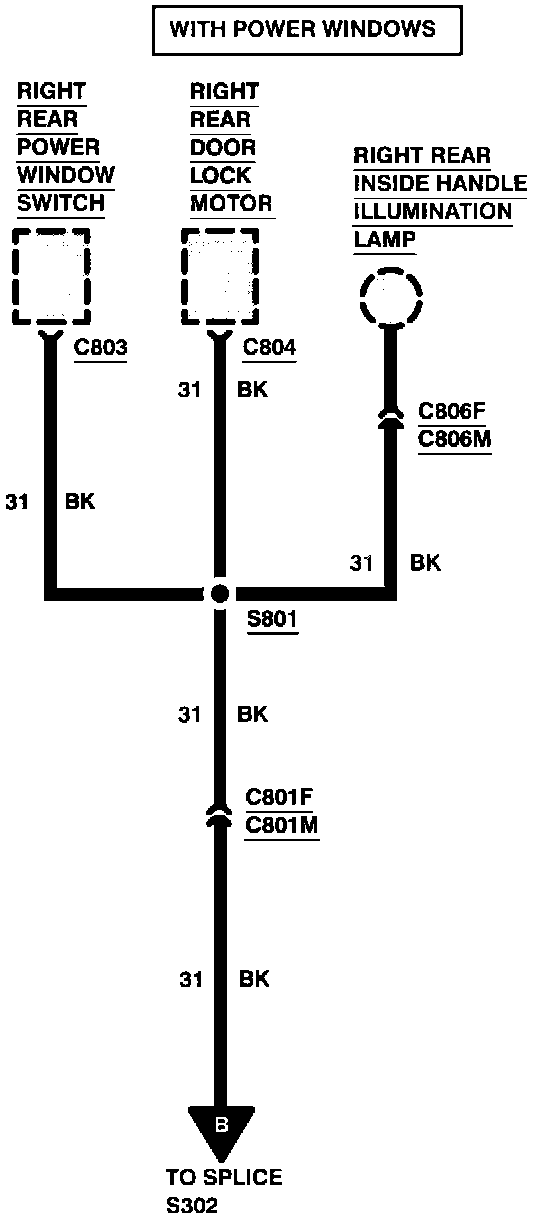

Grounds (G301):

Right Rear Door Lock Motor
Right Rear Inside Handle Illumination Lamp
Right Rear Power Window Switch

Grounds (G303, G401):

Power Seat Switch
Seat Belt Buckle Switch

Grounds (G303, G401):

Front Dome/Map Lamp
Fuel Pump Module
Left Rear Combination Lamp
Left Vanity Mirror Lamp
Moon Roof Switch
Rear Dome/Map Lamp
Right Vanity Mirror Lamp
Shorting Bar Connector

Grounds (G303, G401):

Decklid Motor
Hi Mount Stop Lamp
Left Backup Lamp
Left License Lamp
Luggage Compartment Lamp Switch
Power Antenna Module
Right Backup Lamp
Right License Lamp
Right Rear Combination Lamp
Shorting Bar Connector #4

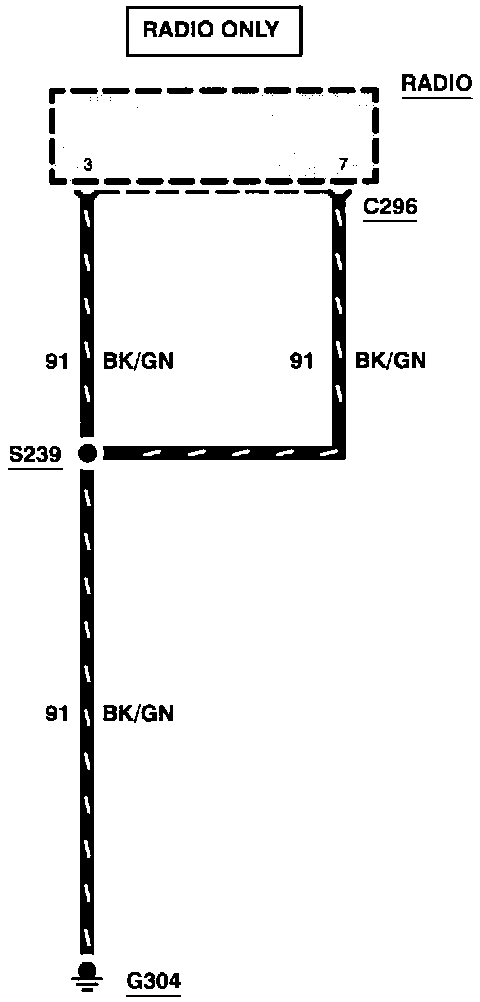

Grounds (G304):

Radio

Grounds (G304):

Front Remote Amplifier
Radio Or CD/Radio

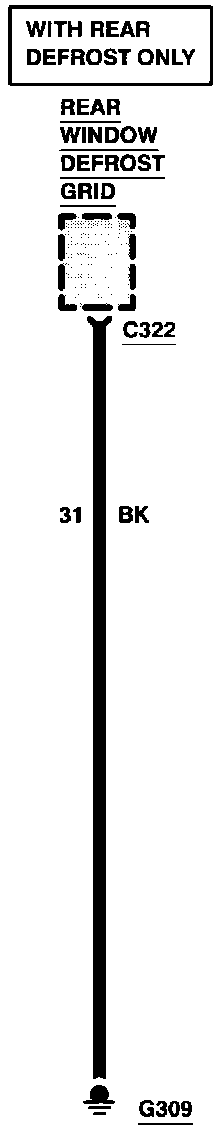

Grounds (G309):

Rear Window Defrost Grid

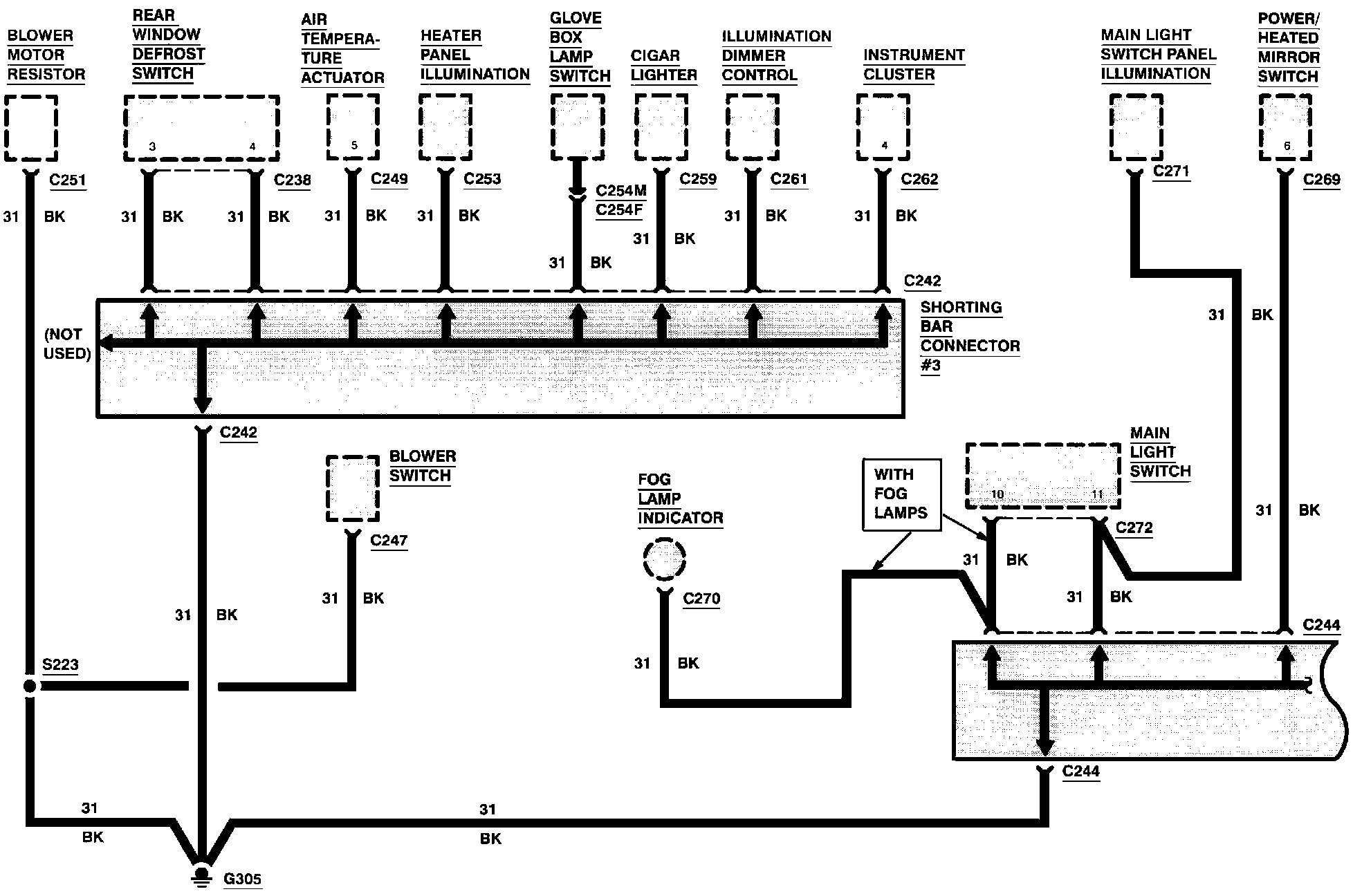

Grounds (G305):

Air Temperature Actuator
Blower Motor Resistor
Blower Switch
Cigar Lighter
Fog Lamp Indicator
Glove Box Lamp Switch
Heater Panel Illumination
Illumination Dimmer Control
Instrument Cluster
Main Light Switch
Main Light Switch Panel Illumination
Power/Heated Mirror Switch
Rear Window Defrost Switch

Grounds (G305):

Blower Motor Relay
Central Timer Module
Combination Switch
Courtesy Lamp Relay
Ignition Relay
Ignition Switch
Interior Fuse Panel
Key Removal Inhibit Solenoid
Shorting Connector #1
Traction Control Disable Switch
Wiper Washer Switch

Grounds (G306):

Air Bag Diagnostic Monitor
Clock
Fuel Pump Module
Instrument Cluster
Instrument Interface Module
Shorting Connector #2
