Mystique V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Antilock Brake System
>>
System Schematic
>>
With Traction Control
With Traction Control

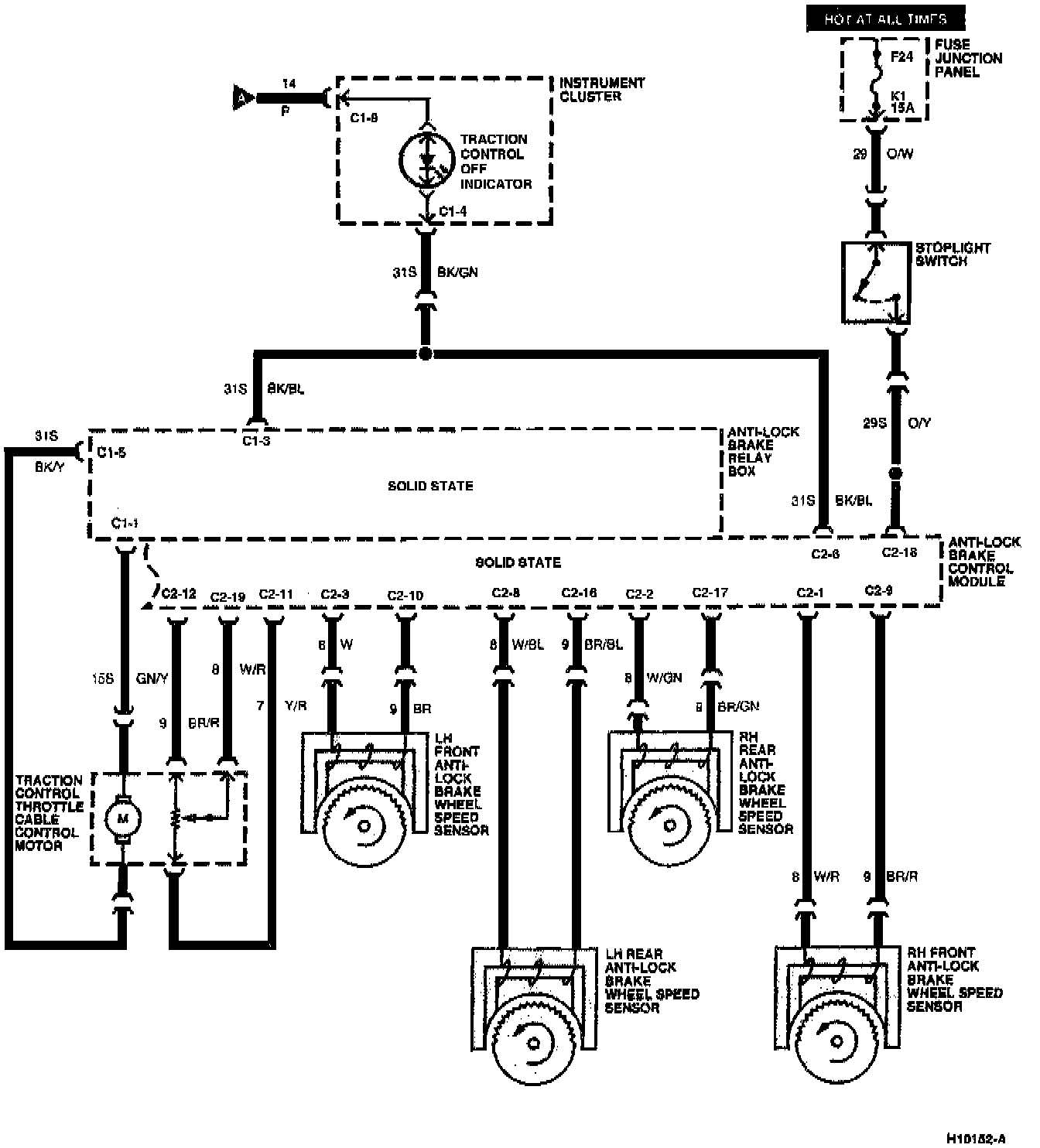

Schematic:

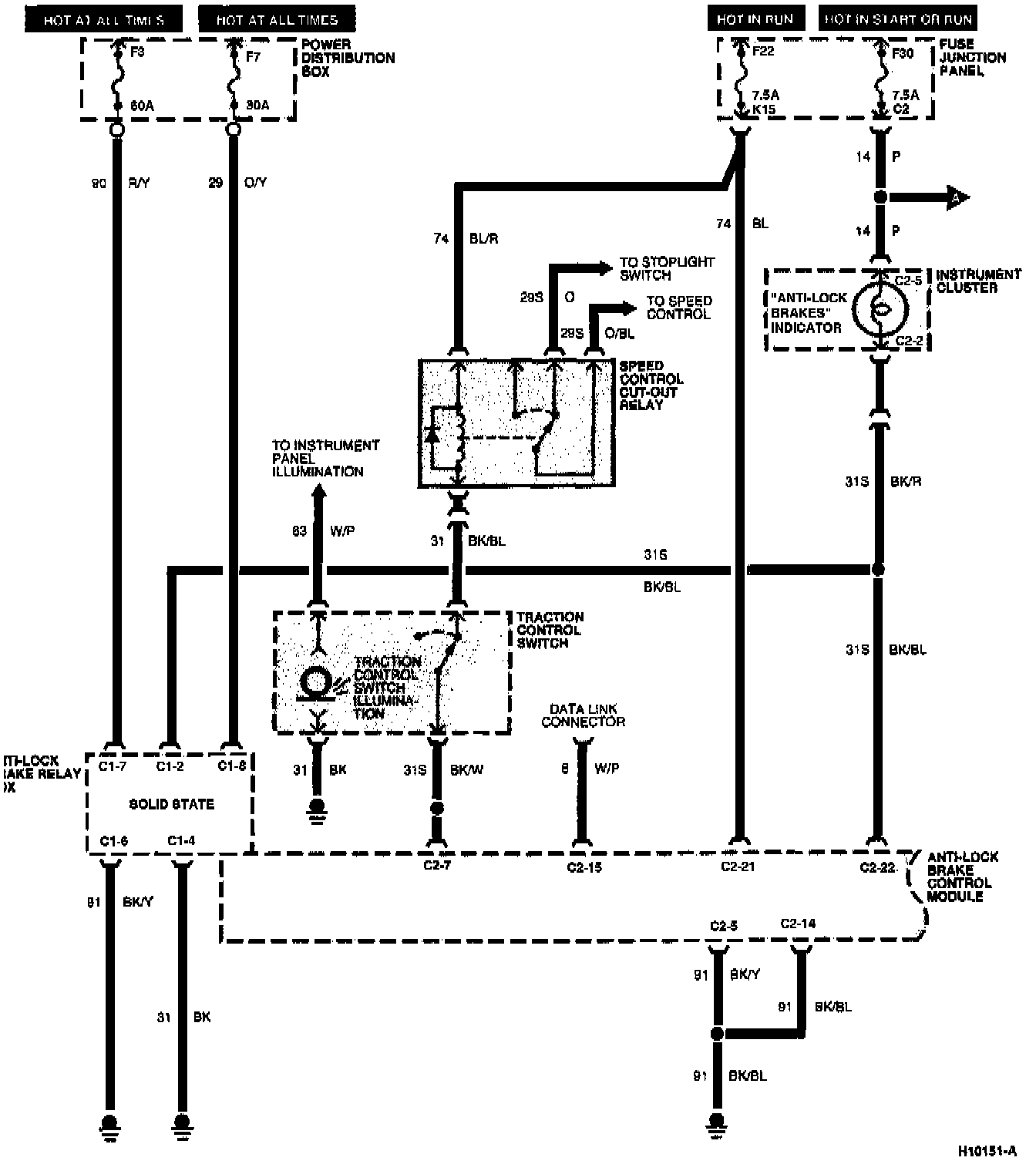

Schematic:
