Remote Entry Diagnostic Connector

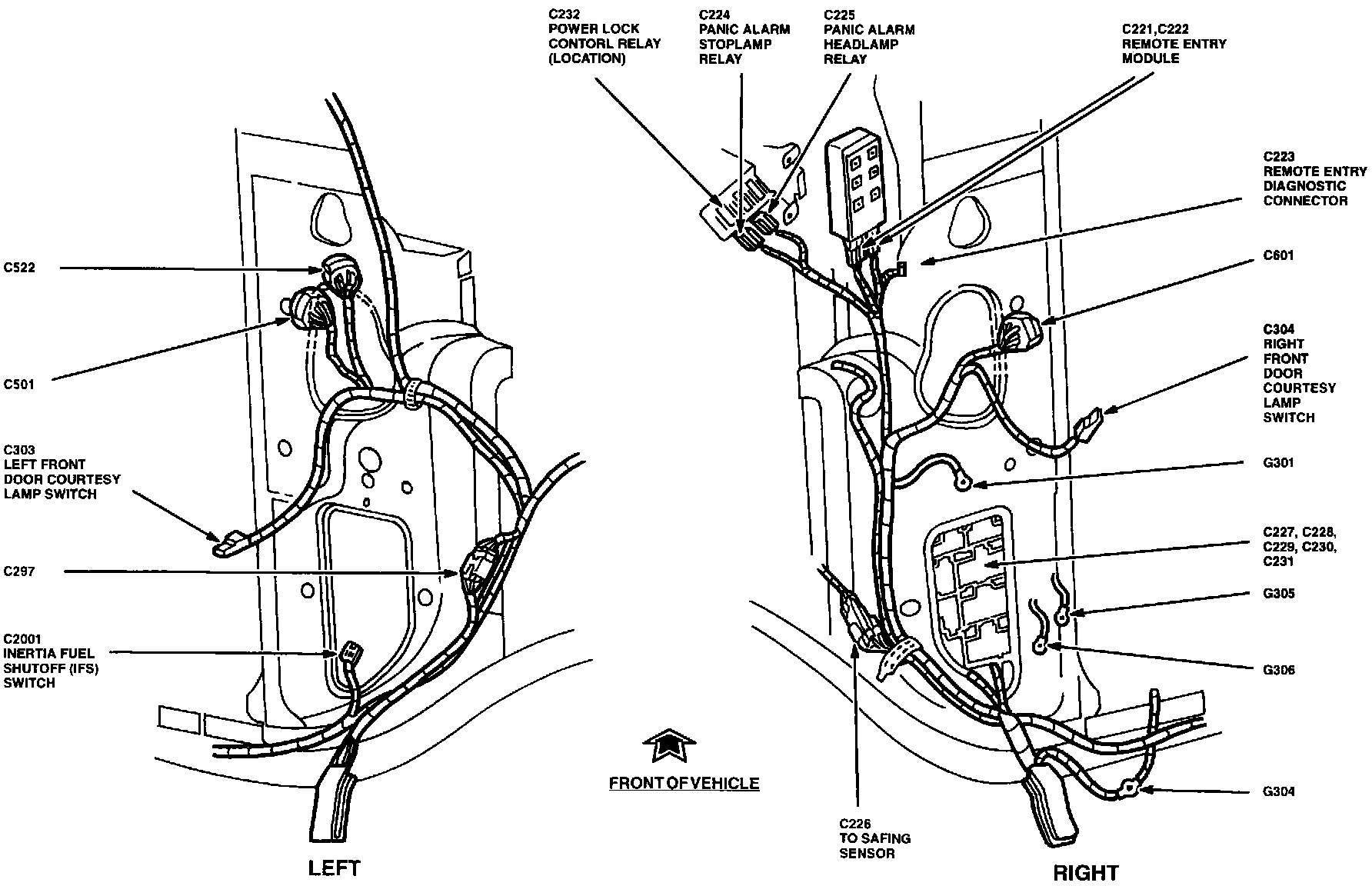

Kick Panels View:





The Remote Entry Diagnostic Connector is located under the RH side of the instrument panel, behind the RH side of the glove box.
