Mystique V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Diagrams
>>
Electrical Diagrams
>>
With Remote Entry
With Remote Entry

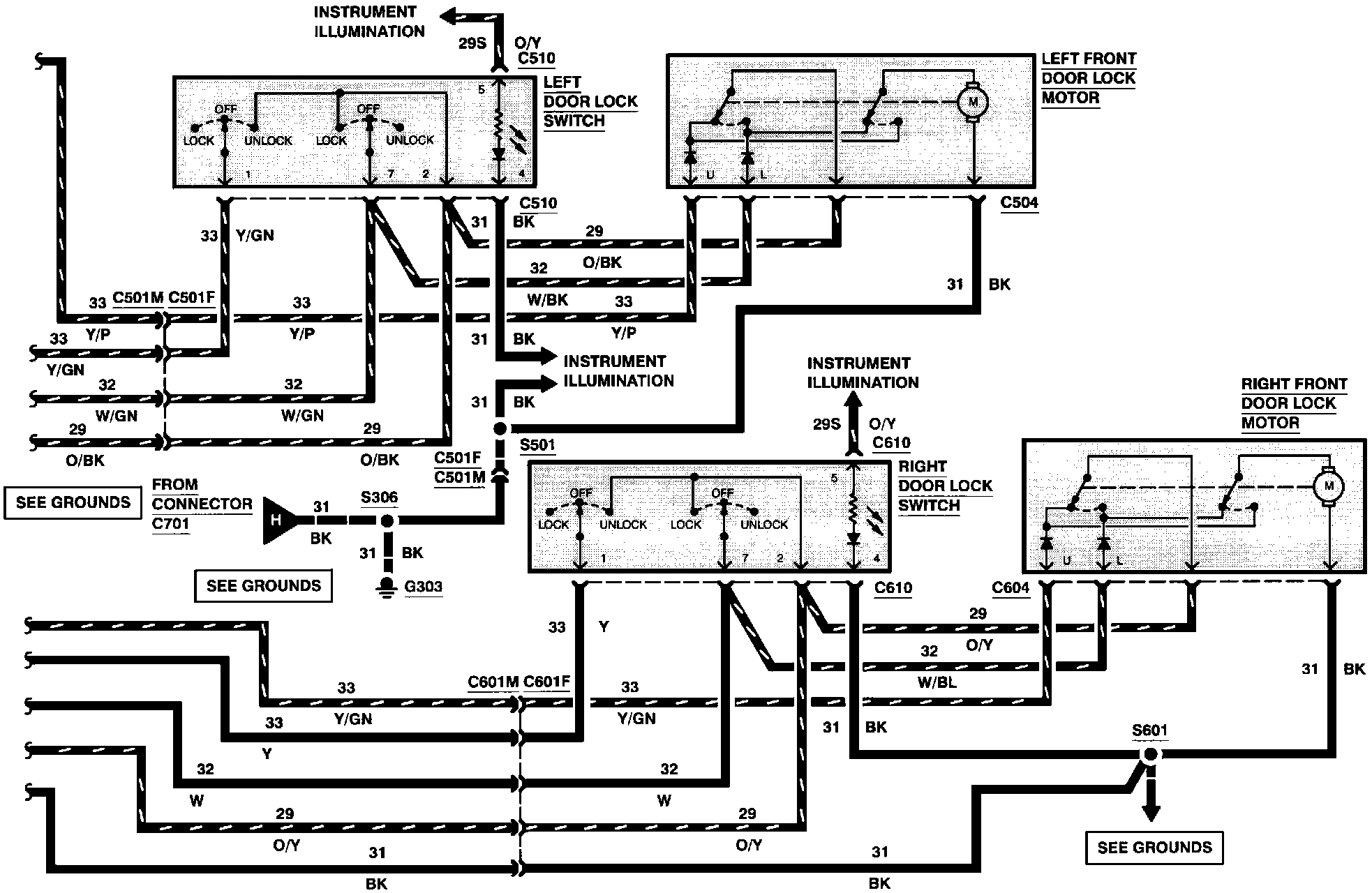

Remote Entry (Part 1 Of 5):

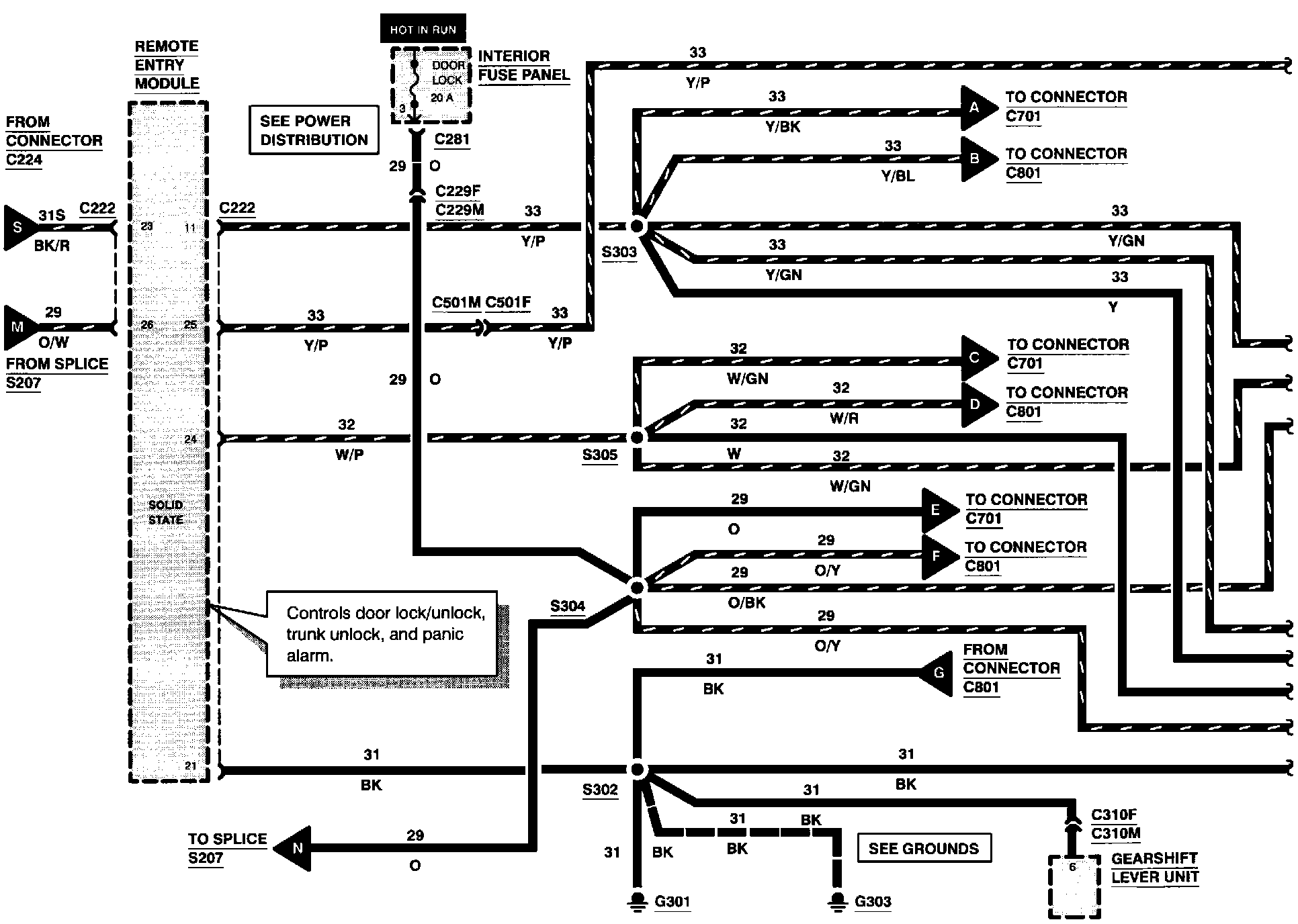

Remote Entry (Part 2 Of 5):

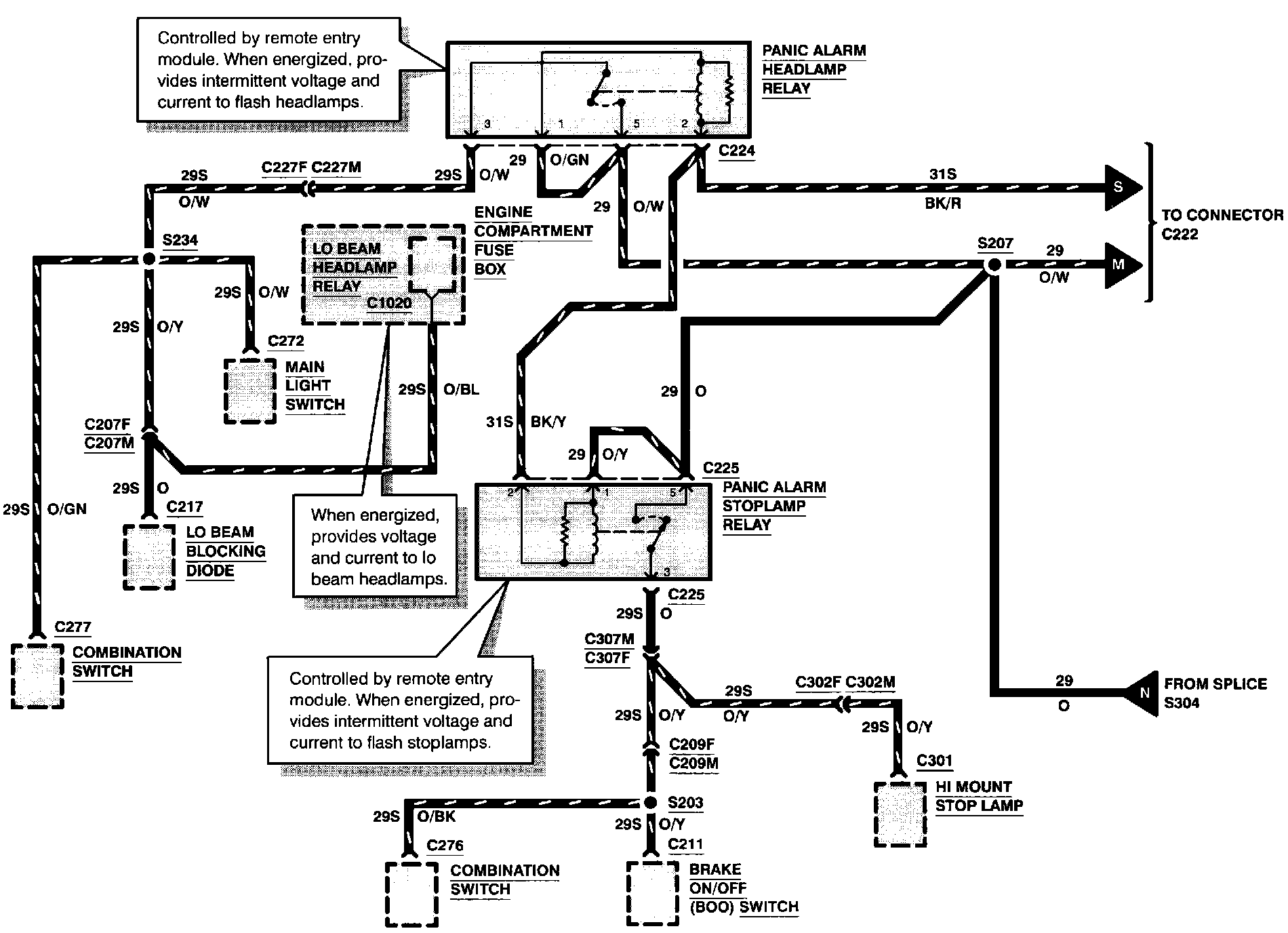

Remote Entry (Part 3 Of 5):

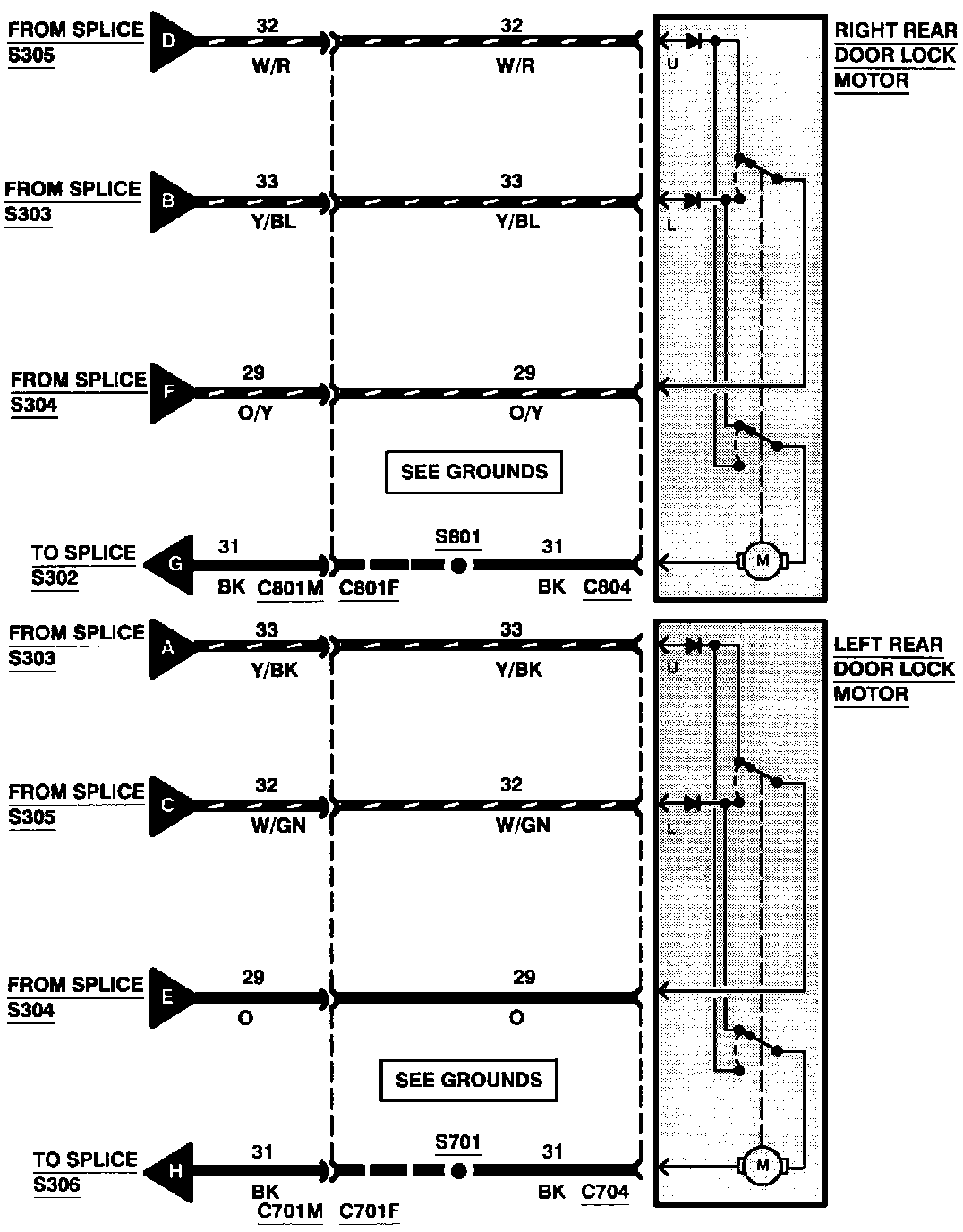

Remote Entry (Part 4 Of 5):
Remote Entry (Part 5 Of 5):
