Main Control Assembly

MAIN CONTROL ASSEMBLY

The main control assembly consists of four bodies:

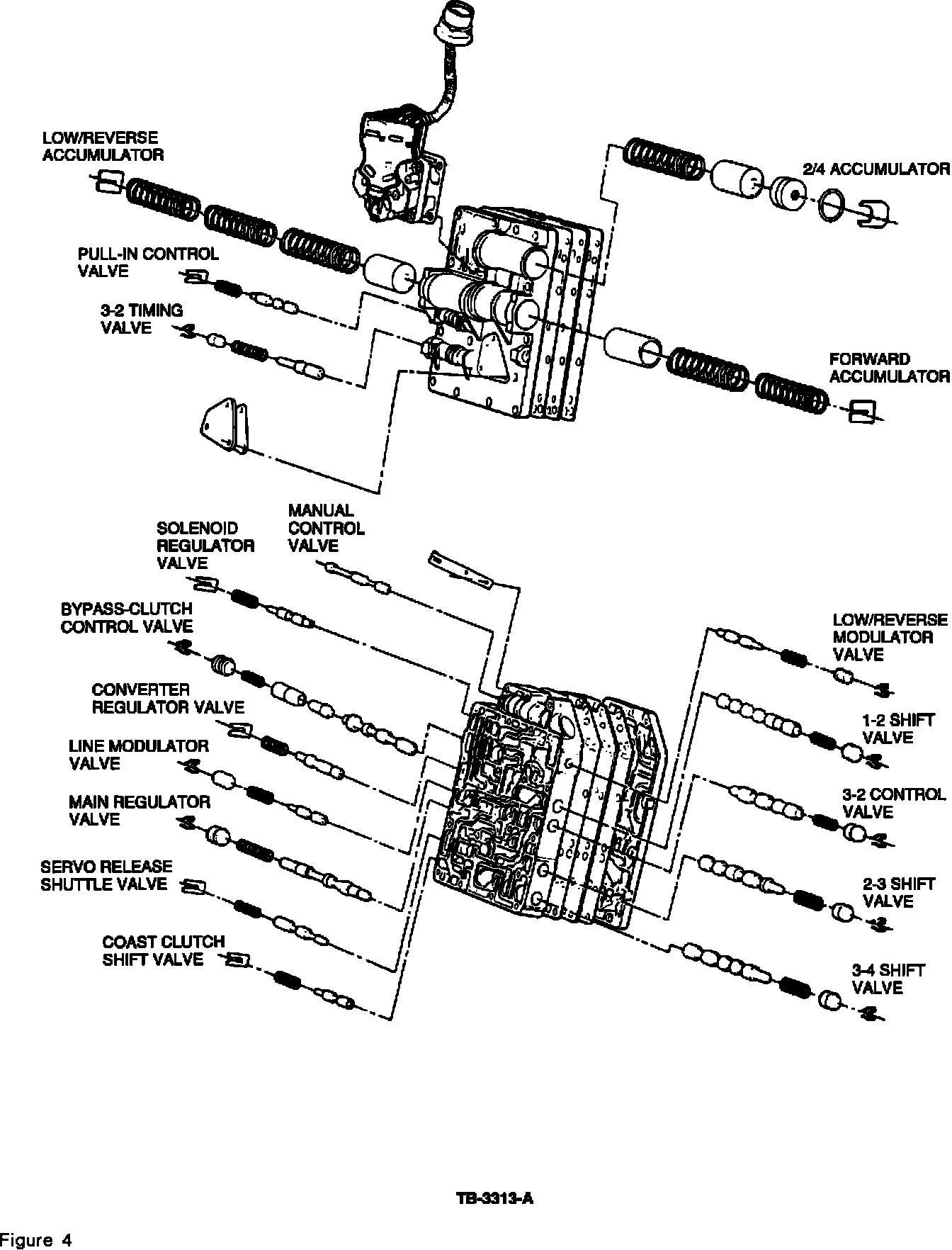

solenoid body, accumulator body, valve body, and transfer plate, refer to Figure 4. There are no check balls in the main control. All the valves are aluminum.
