Fuel Injector Wiring Harness: Service and Repair

REMOVAL
1. Disconnect battery ground cable.
2. Remove engine air intake resonators.
3. Disconnect the fuel charging wiring from engine control sensor wiring at connector on top of engine near the fuel pressure regulator.
4. Disconnect fuel charging wiring at connectors from the engine coolant temperature sensor, camshaft position sensor, fuel injectors and throttle position sensor.

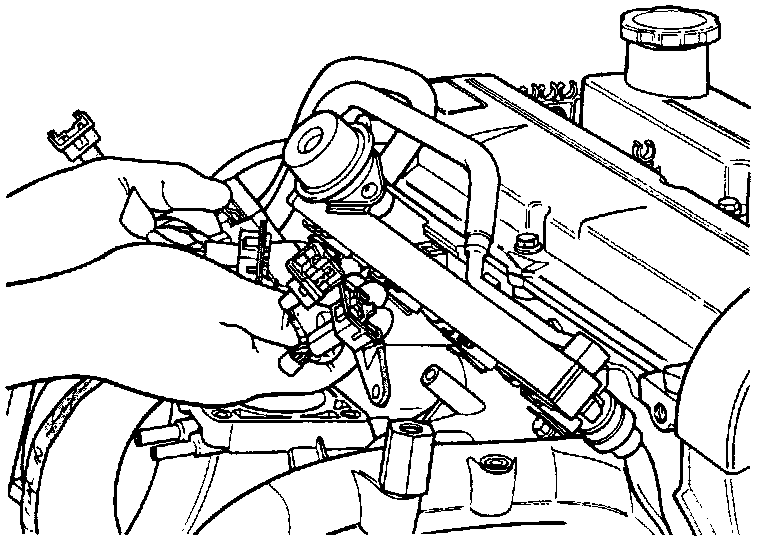

Fuel Injection Wiring Harness:

5. Remove retaining bolts and remove fuel charging wiring from intake manifold.

INSTALLATION
1. To install, reverse removal procedures.
2. Tighten retainers securely. Verify all connections.
