Exhaust Pressure Regulator Vacuum Valve: Service and Repair

EGR Pressure Valve Sensors:

REMOVAL
^ Disconnect battery ground cable.
^ Disconnect engine control sensor wiring from EGR pressure sensor.
^ Disconnect EGR pressure valve sensor hoses from EGR pressure sensor.

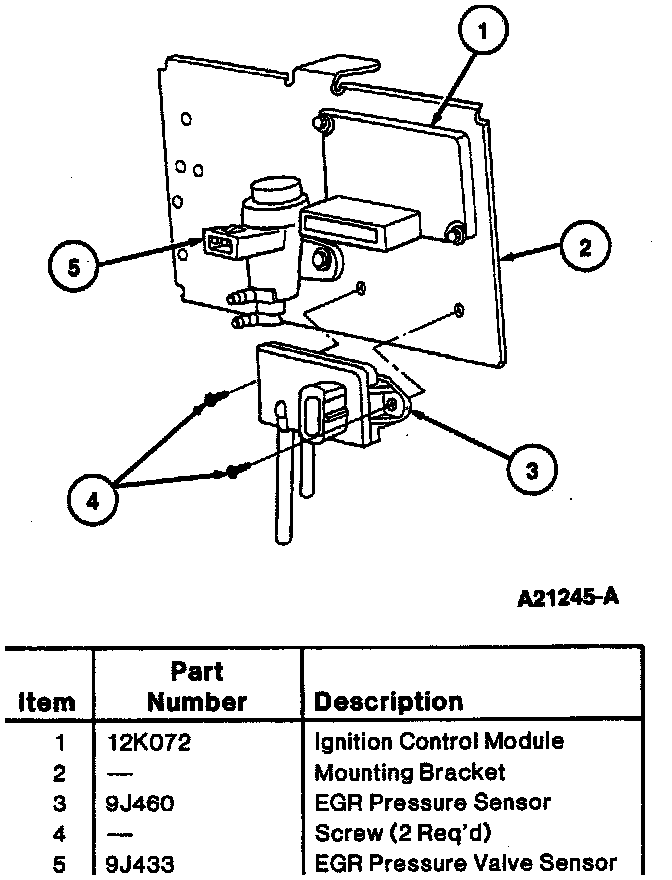

^ Remove EGR pressure valve sensor retaining screws and EGR pressure sensor from bracket located on dash panel.

INSTALLATION
^ To install, reverse removal procedure. Tighten EGR pressure valve retaining screws securely.
