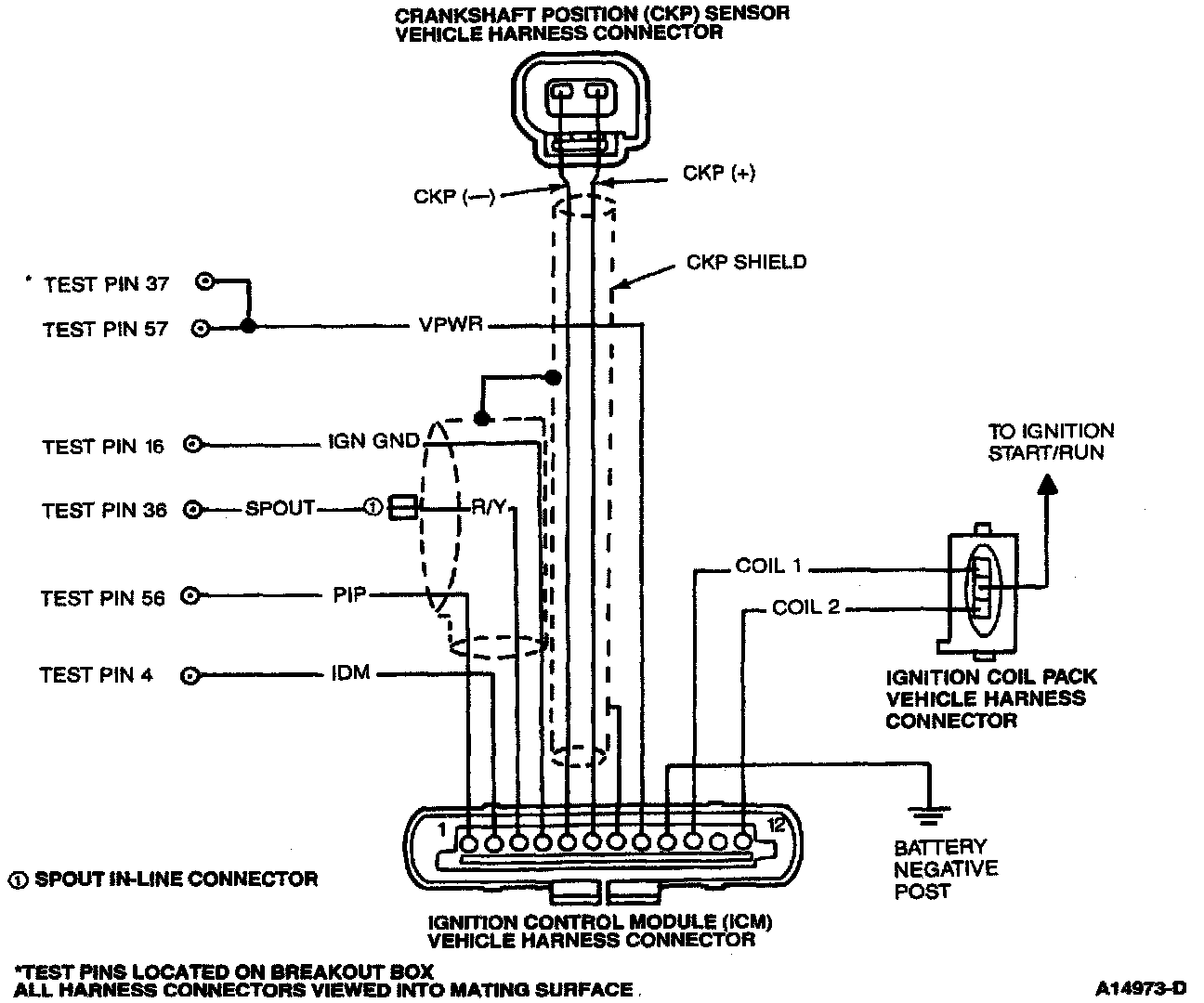

AC - Testing Schematic

EI High Rate Diagram:

CIRCUIT / PIN / WIRE COLOR

IDM / pin 4 / white/green

IGN GND / pin 16 / black/blue

SPOUT / pin 36 / white/purple

PID / pin 56 / white/black

VPWR / pin 37/57 / gray/yellow
