Ignition Control Module: Locations

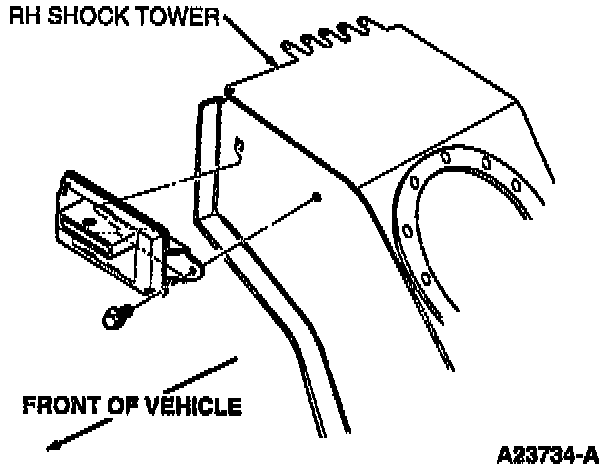

Engine View:
Ignition Control Module Location:
The Ignition Control Module is located at the RH side of the engine compartment.
