Engine Controls

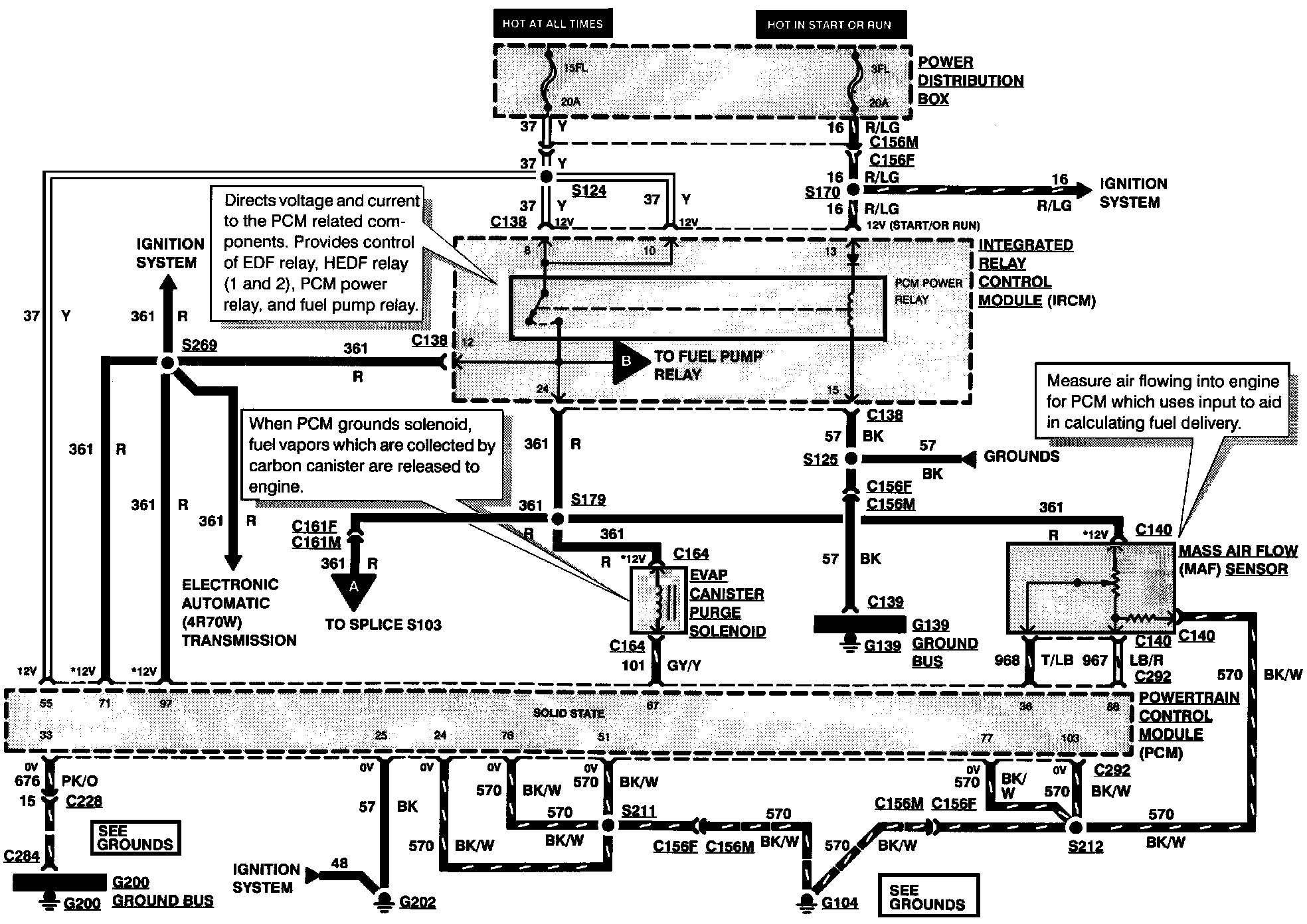

Electronic Engine Control (Part 1 Of 7):

EVAPORATIVE EMISSIONS CANISTER PURGE SOLENOID
MASS AIR FLOW SENSOR
PCM POWER RELAY

Electronic Engine Control (Part 2 Of 7):

FUEL PUMP RELAY
INERTIA FUEL SHUTOFF SWITCH

Electronic Engine Control (Part 3 Of 7):

EGR VACUUM REGULATOR SOLENOID
FUEL INJECTORS
IDLE AIR CONTROL VALVE
VEHICLE SPEED SENSOR

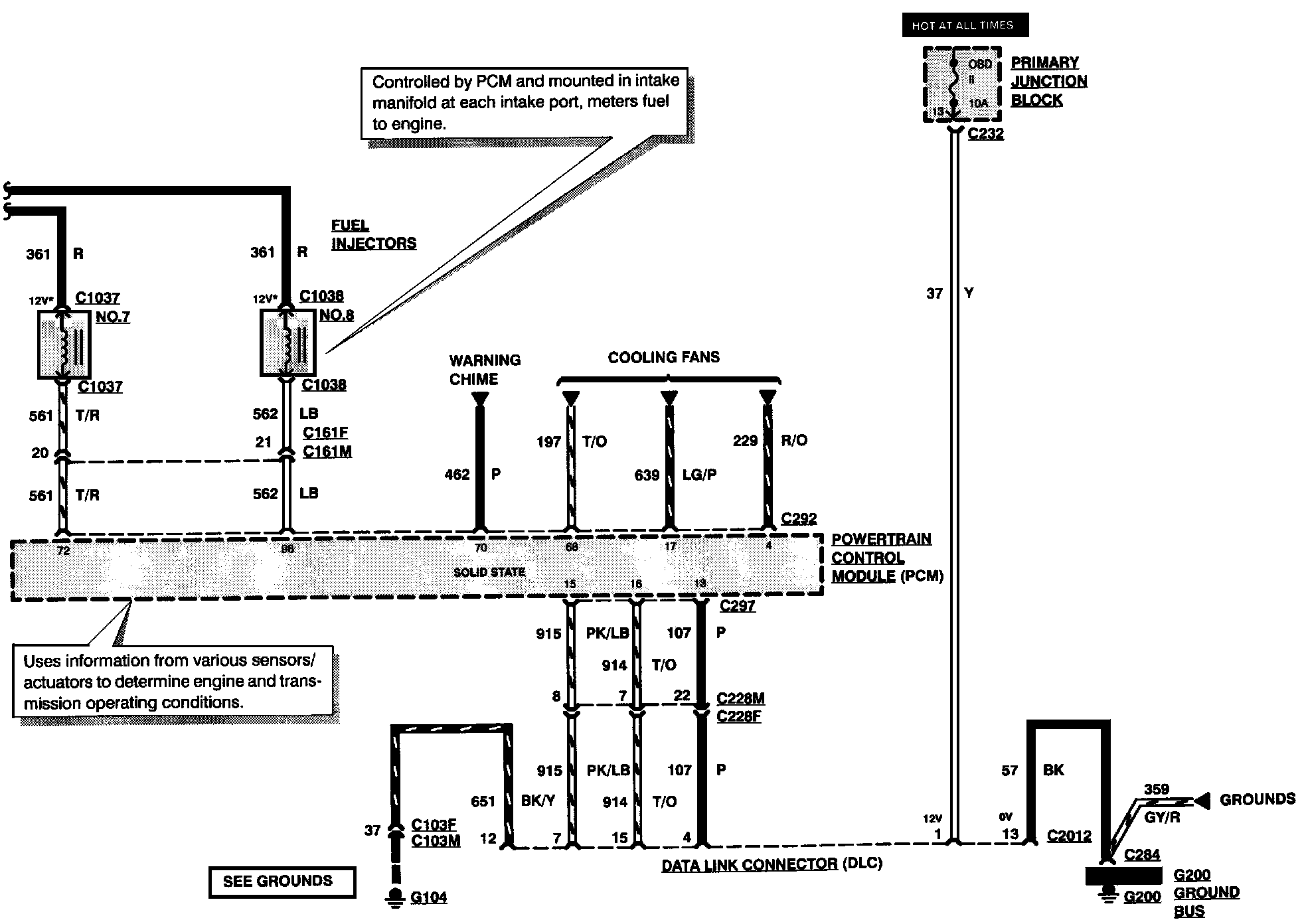

Electronic Engine Control (Part 4 Of 7):

FUEL INJECTORS

Electronic Engine Control (Part 5 Of 7):

ENGINE COOLANT TEMPERATURE SENSOR
INTAKE AIR TEMPERATURE SENSOR
OCTANE ADJUST PLUG
PRESSURE FEEDBACK EGR SENSOR
THROTTLE POSITION SENSOR

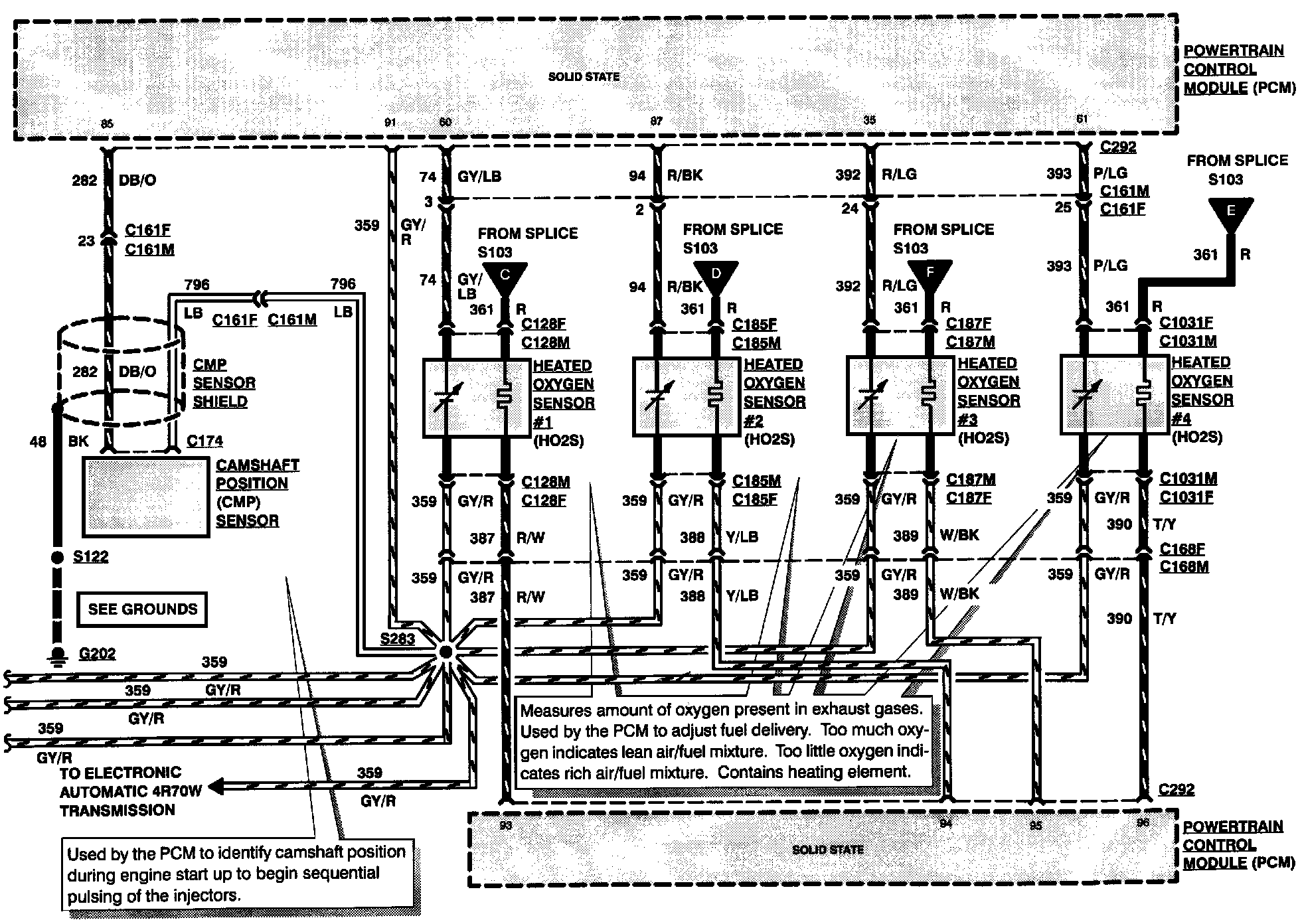

Electronic Engine Control (Part 6 Of 7):

CAMSHAFT POSITION SENSOR
HEATED OXYGEN SENSOR #1
HEATED OXYGEN SENSOR #2
HEATED OXYGEN SENSOR #3
HEATED OXYGEN SENSOR #4

Electronic Engine Control (Part 7 Of 7):
