Comparing PCM Data

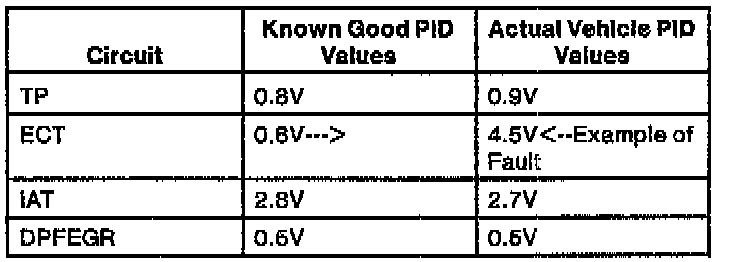

After the PCM values have been acquired, it is necessary to determine the fault area. Typically, it will require the comparison of the actual values from the vehicle to the typical values from the Diagnostic Reference Value Charts at the end of Section 6. The charts apply to different vehicle applications (i.e., model, engine, transmission, etc.). Refer to chart for an example.
