Home >> Mercury >> 1995 >> Cougar/XR7 V8-281 4.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Routines >> 21 - Engine Noise - Under Hood

21 - Engine Noise - Under Hood

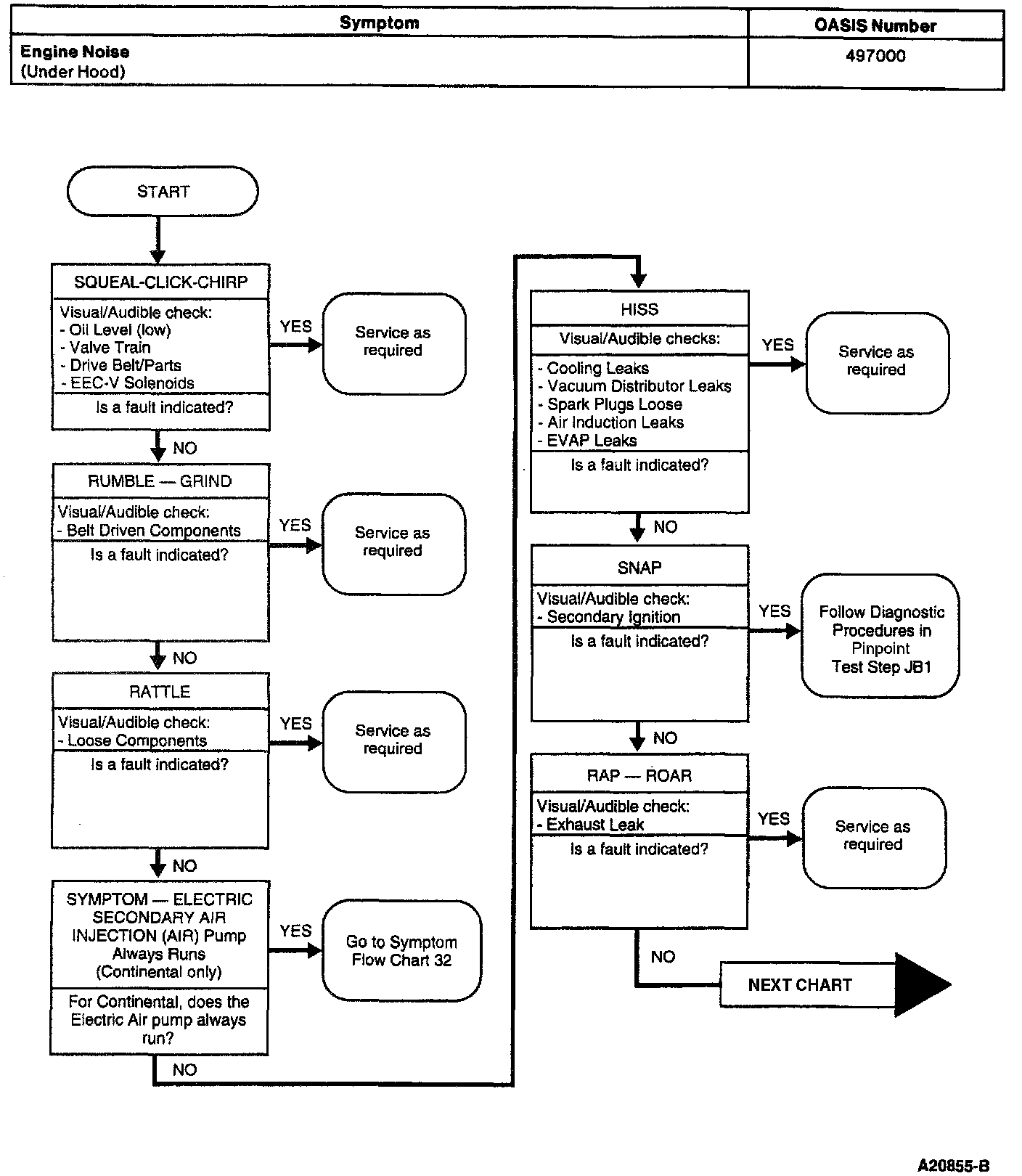

Chart 21:



Chart 21 (Part 2 Of 2):
