Heated Oxygen Sensor(s) (HO2S) Locations

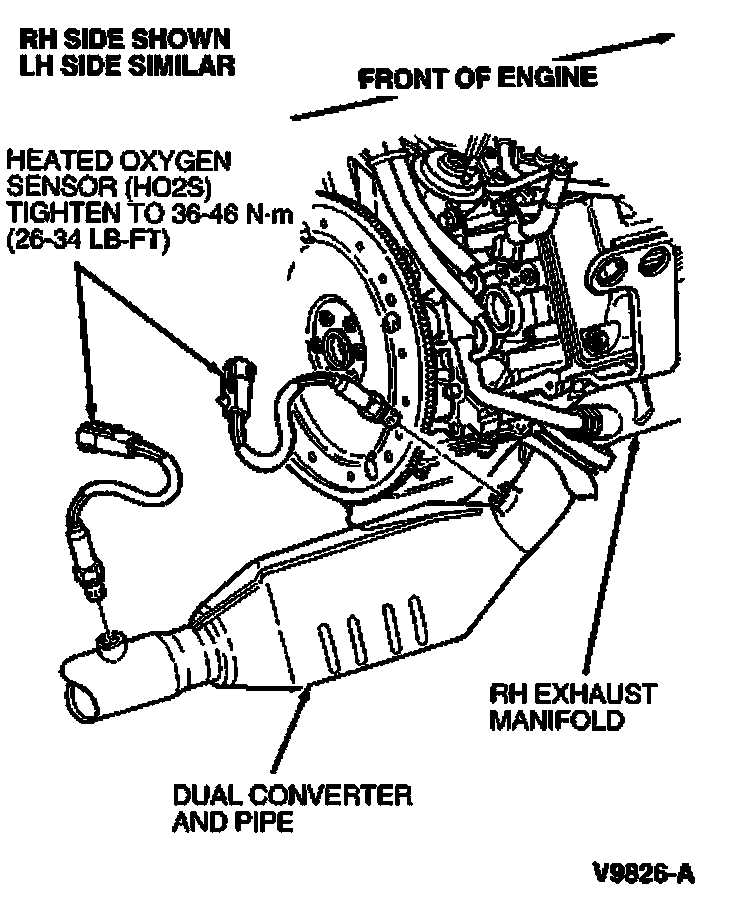

The Heated Oxygen Sensors (HO2S) are located in the dual converter and pipe.
