Windshield Washer Switch: Testing and Inspection

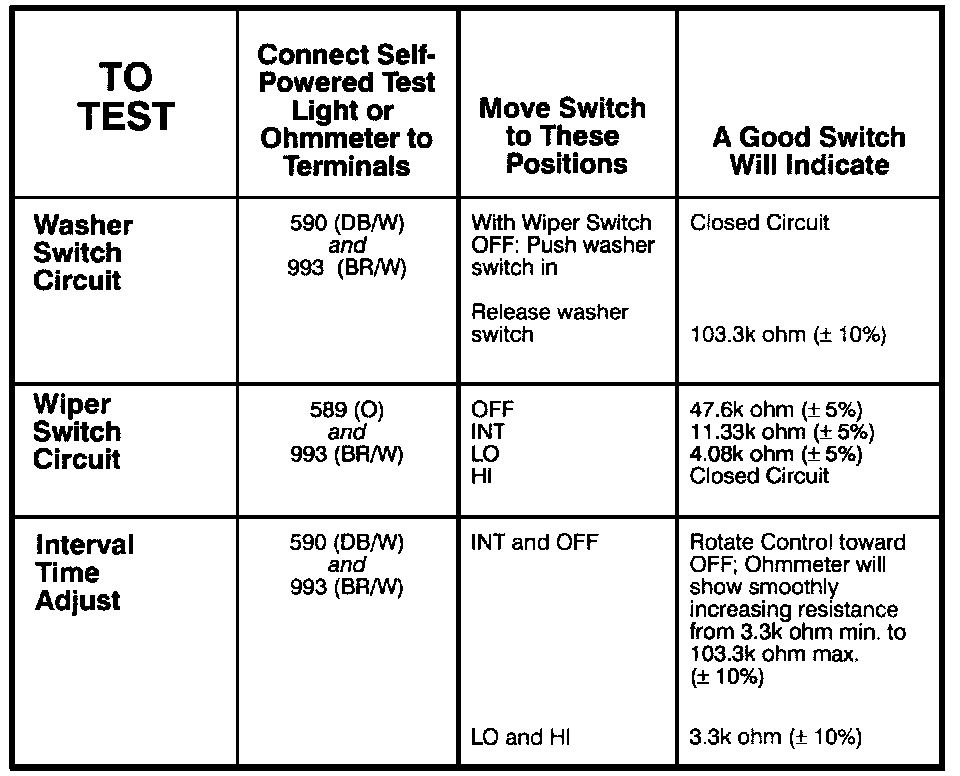

Multi-Function Switch - Component Testing Procedure:




Multi-Function Switch - Terminals:

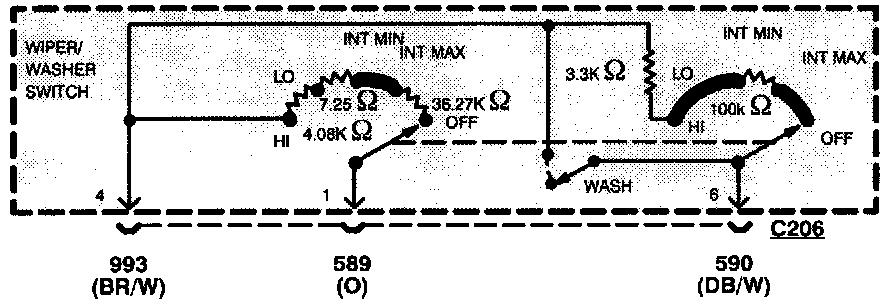

Multi-Function Switch - Schematic - Wiper/Washer Portion Of Multi-Function Switch:
