Connector Views Used With Pinpoint Tests
Connector Views Used With Pinpoint Tests
Instrument Cluster Connectors (C1 And C2):

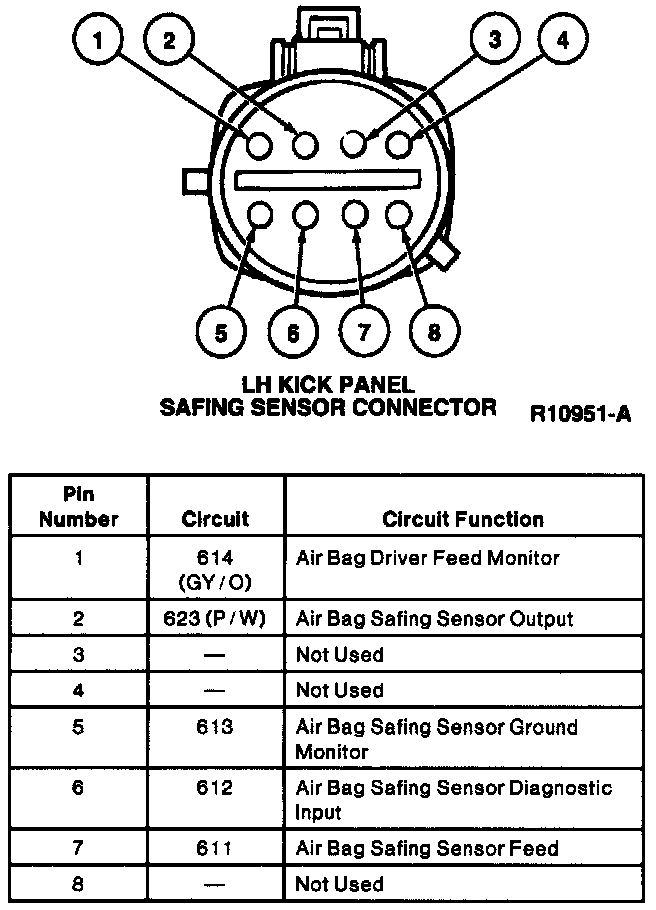

LH Kick Panel Safing Sensor Connector:

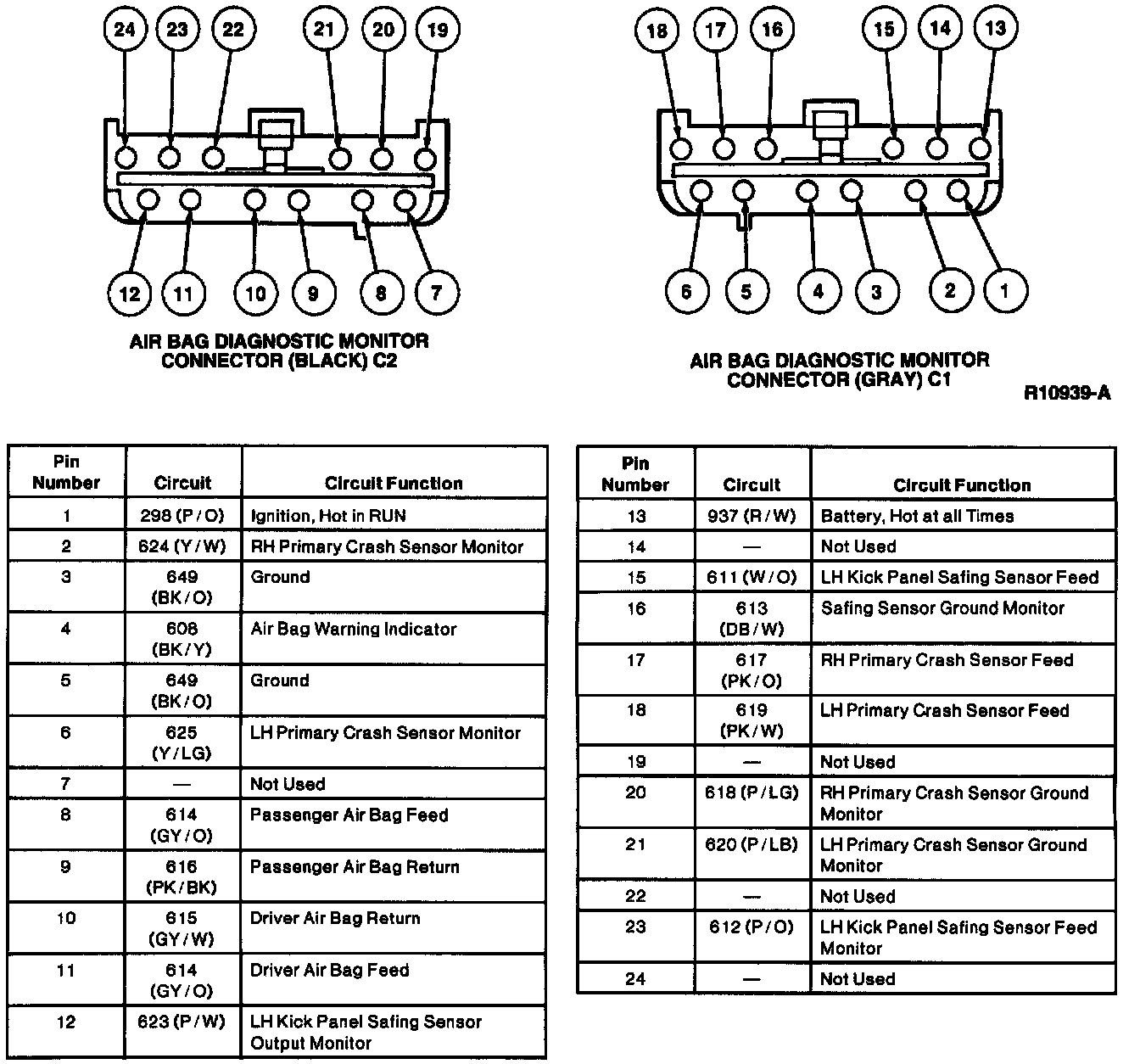

Air Bag Diagnostic Monitor Connectors (C1 And C2):
