Pinout Values and Diagnostic Parameters

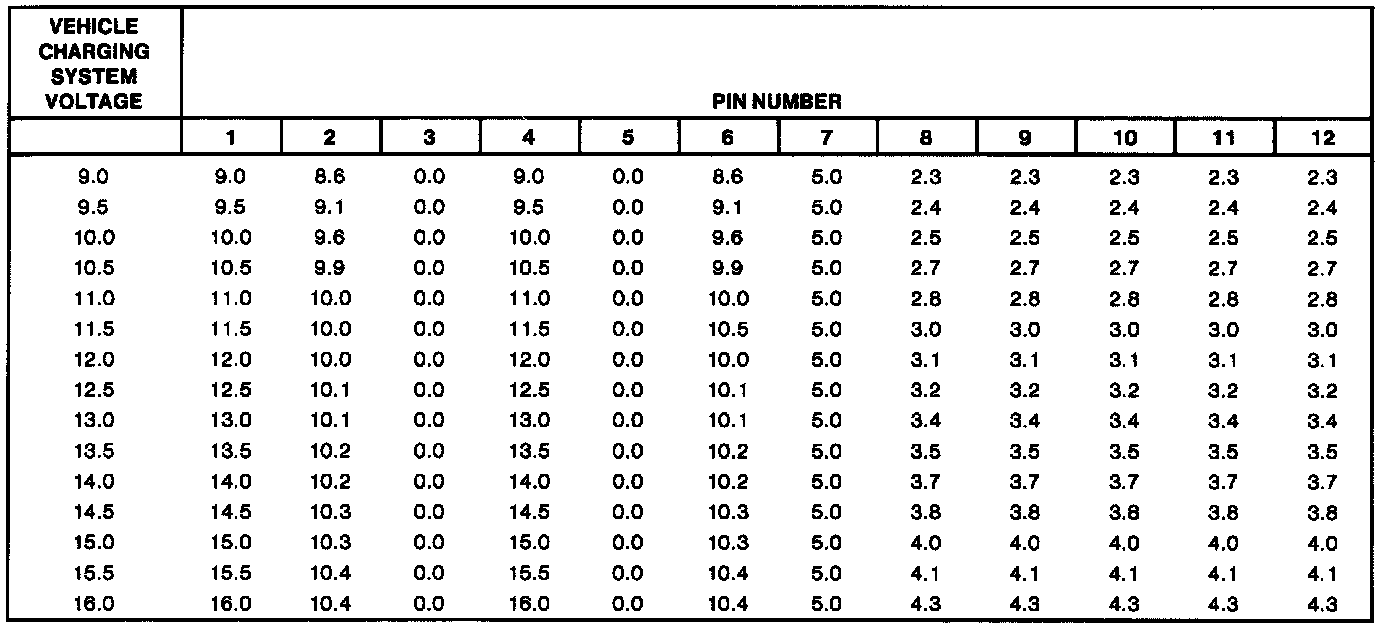

Pins 1-12:





Pins 13-24:






Typical Pin Voltages With System Connected And Engine Running
