Transmission Temperature Sensor/Switch: Specifications

Sensor Output Graph:

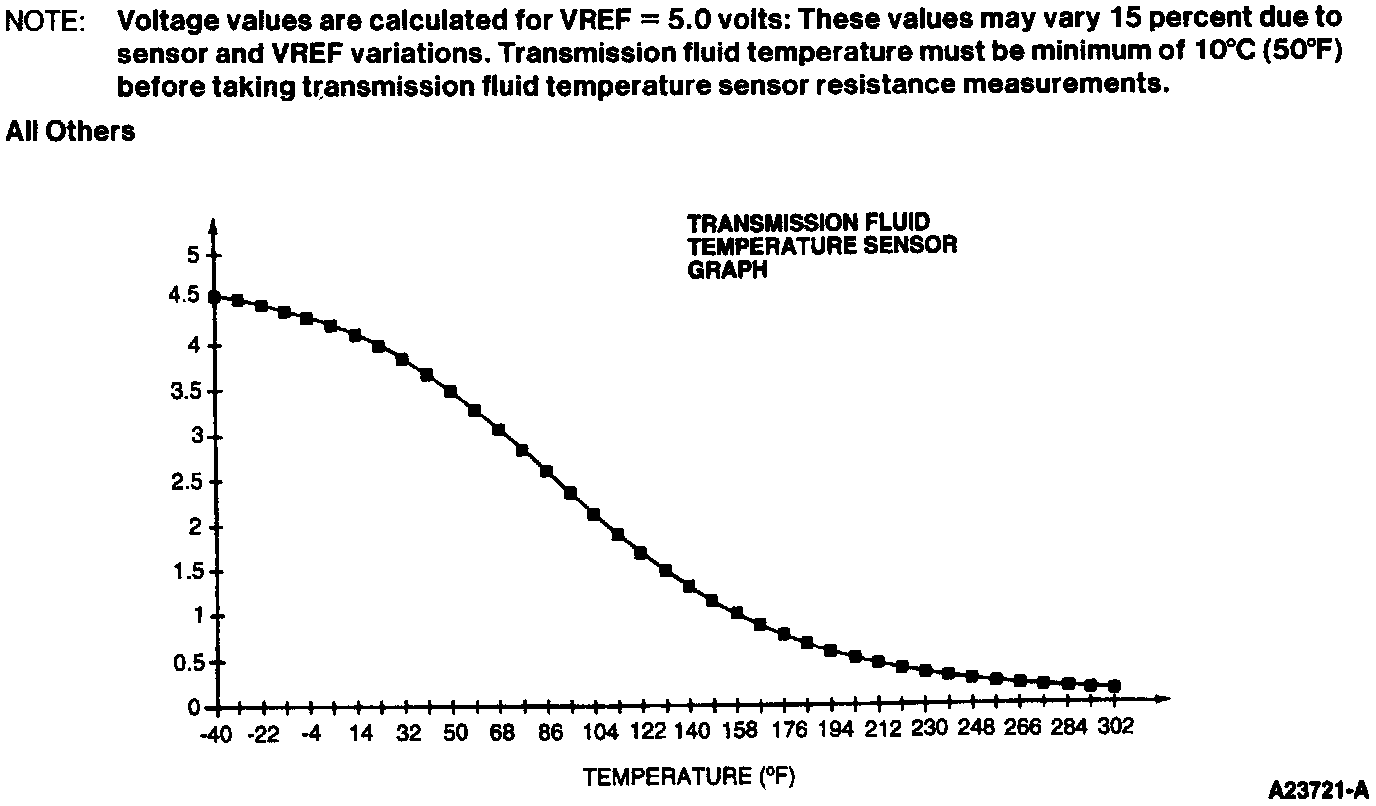

TRANSMISSION FLUID TEMPERATURE SENSOR GRAPH

Sensor Output Graph:

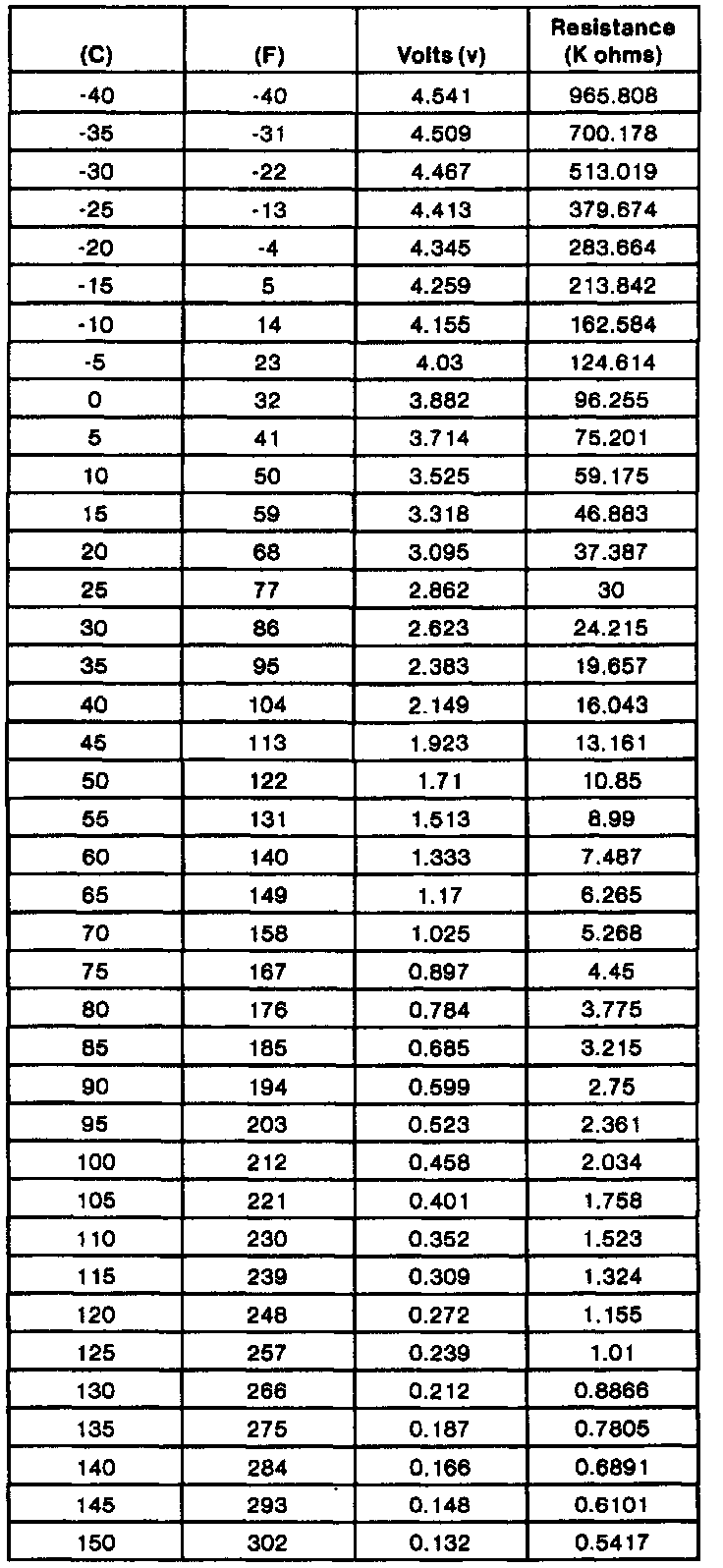

TEMPERATURE/VOLTAGE/RESISTANCE TABLE
