Electrical Diagrams

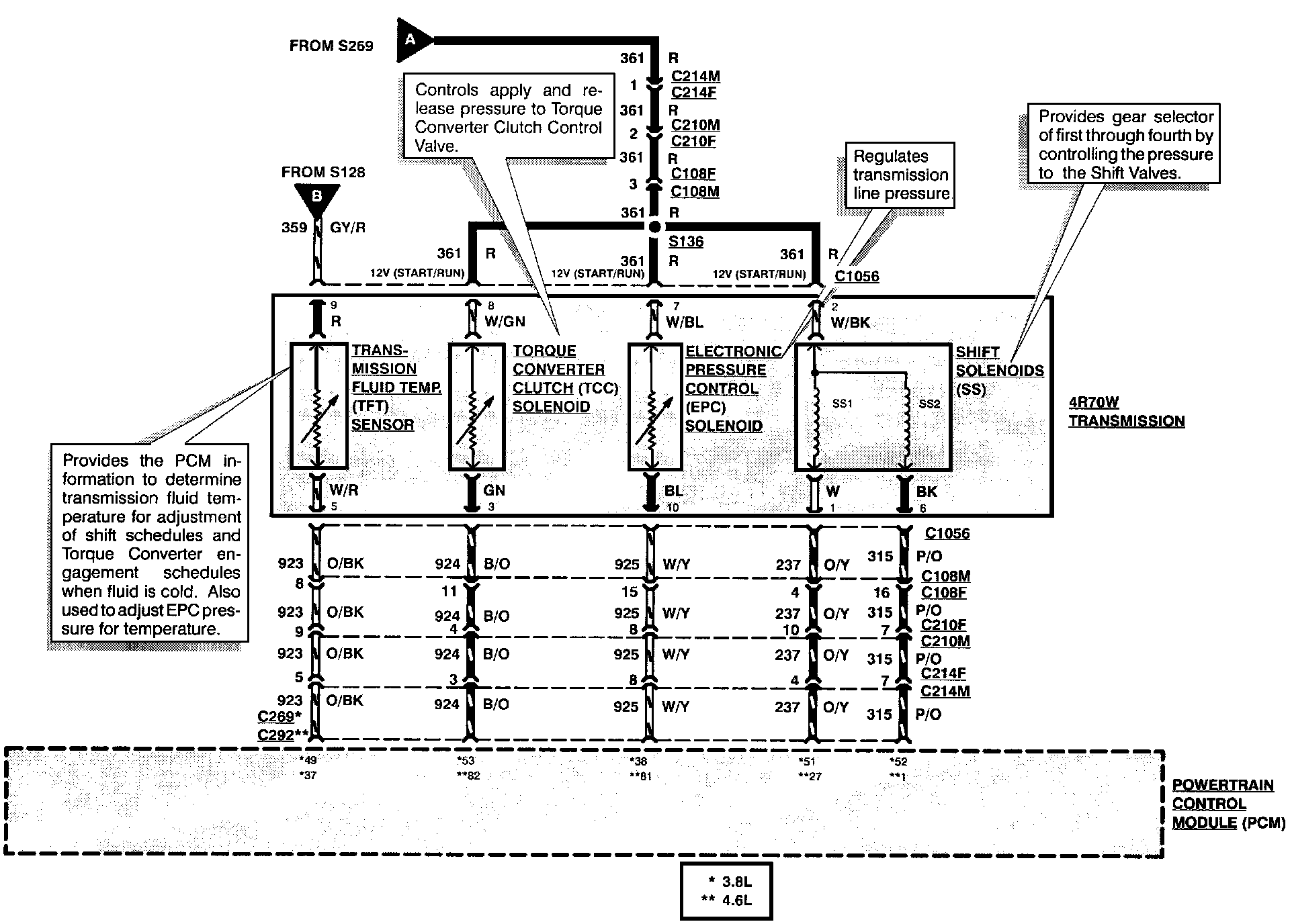

Electronic Automatic (4R70W) Transmission (Part 1 Of 3):

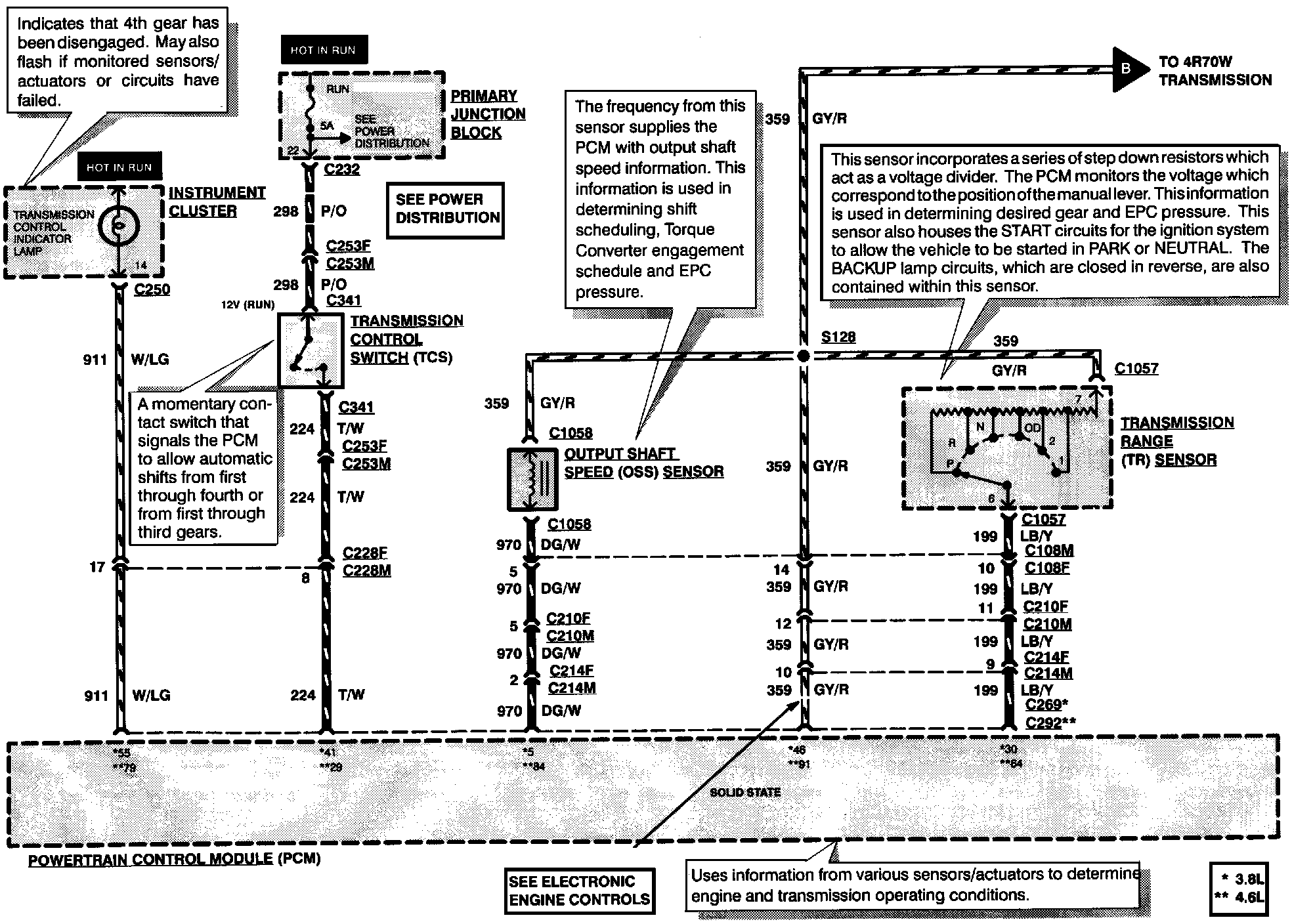

Electronic Automatic (4R70W) Transmission (Part 2 Of 3):
Electronic Automatic (4R70W) Transmission (Part 3 Of 3):
