California

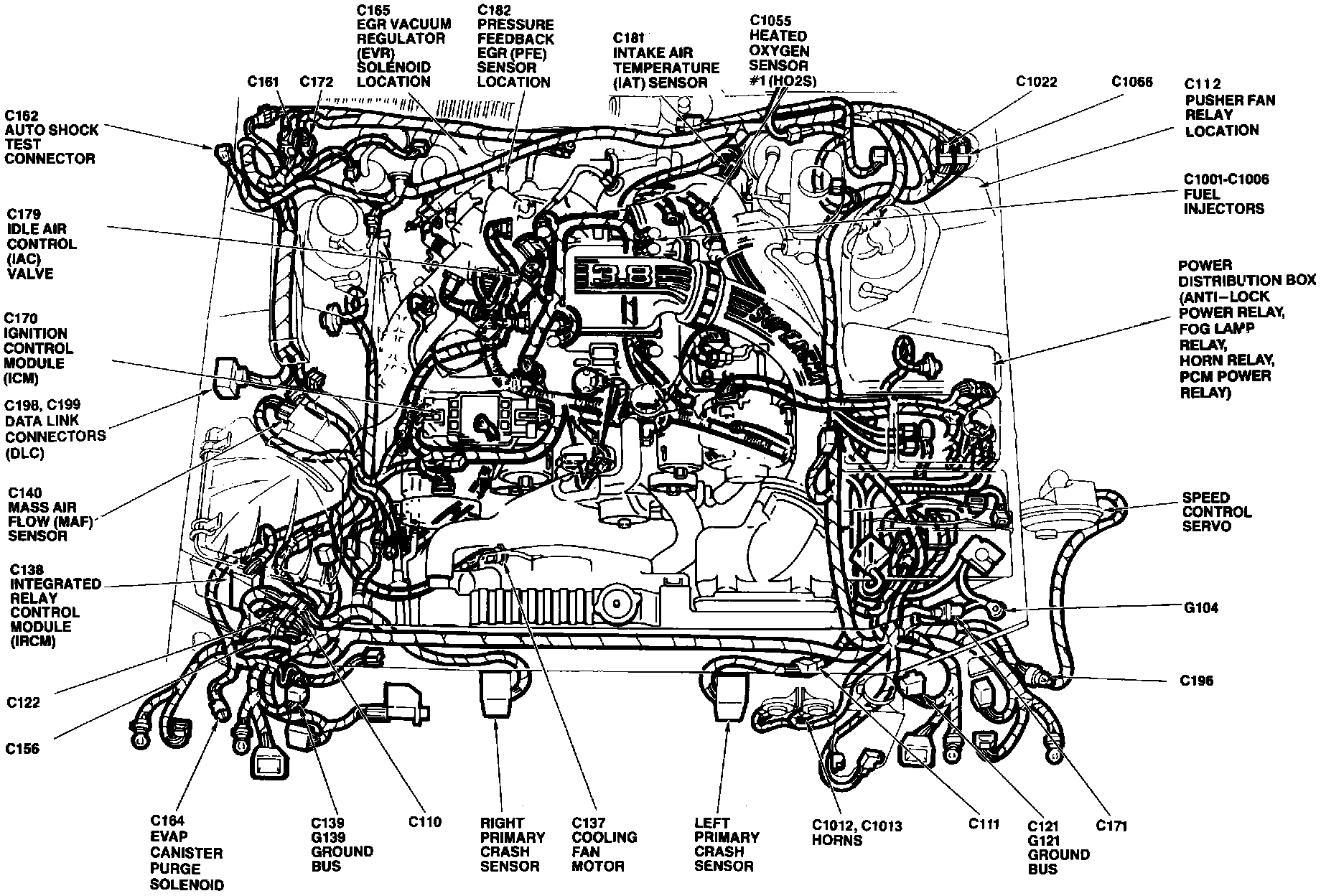

Engine View:




Engine View

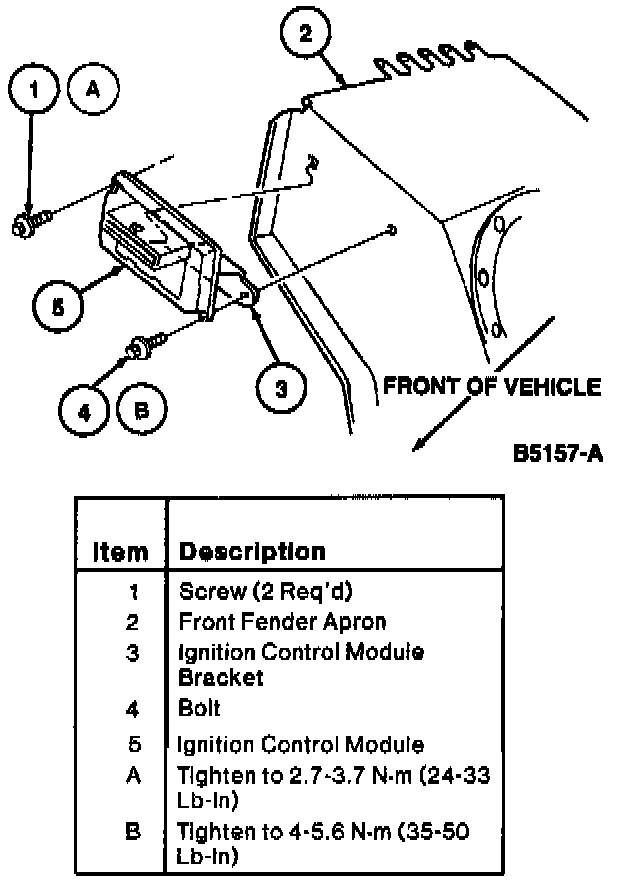

Ignition Control Module:







The Ignition Control Module is located on the RH front fender apron, in the engine compartment.
