Mercury
>>
1995
>>
Cougar/XR7 V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Ignition System
>>
Ignition Control Module
>>
Diagrams
>>
With Distributor Ignition
With Distributor Ignition

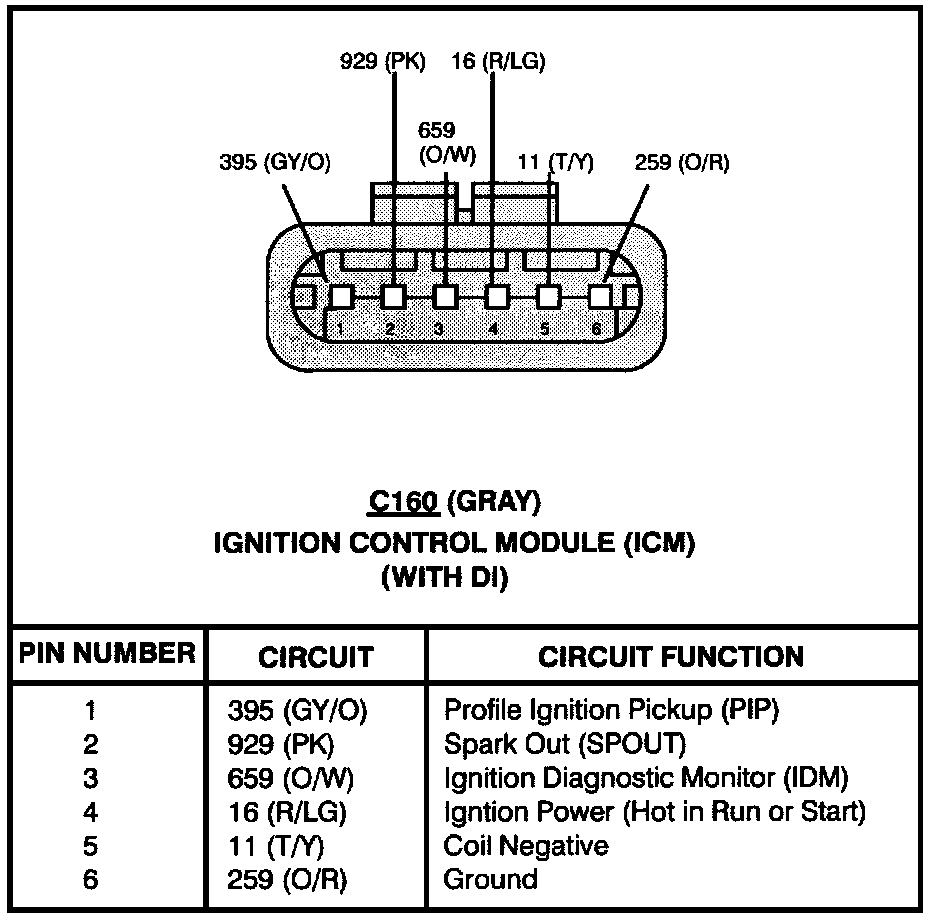

Ignition Control Module (With Distributor Ignition):
