Home >> Mercury >> 1995 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Scan Tool Testing and Procedures >> Intermittent Diagnostic Procedures (Using Tester) >> Pinpoint Test Diagnostics >> Pinpoint Test A, Coils >> Pinpoint Tests A8-A9

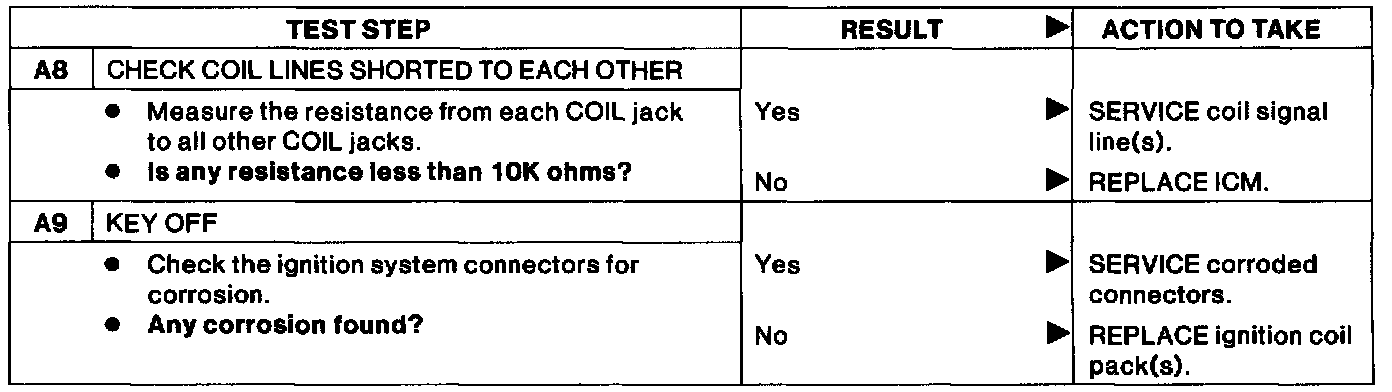

Pinpoint Tests A8-A9
